Schwank 61" ElectricSchwank Single Element 3000W/4000W Infrared Electric Patio Heater
Schwank 61" ElectricSchwank Single Element 3000W/4000W Infrared Electric Patio Heater
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
ElectricSchwank 61" Single Element heater is a sleek and stylish infrared heater that can be wall, ceiling, or flush mounted anywhere you want. Combined with easy to use control options, this heater is perfect for any patio setting. Available in 3000W and 4000W, stainless steel and six custom colors, and two voltage options.
This 61" ElectricSchwank heater can be wall or ceiling mounted. Easy to install indoors or outdoors with the swivel brackets included. For flush mounting, purchase the optional flush mount frame kit.
Get the right amount of heat for your patio. Heaters more than 1500W are recommended for commercial use, but they can also be used in residential applications where powerful heaters are needed. Available in 208V, and 240V for a wide range of applications.
Control options are available to adjust the heating comfort across your patio with the flick of a switch. All controls are available with no cover, weatherproof cover, or weatherproof box models with flush-mount or surface-mount options.
Also Available in other models:
- 19" ElectricSchwank Single Element 500W/750W
- 33" ElectricSchwank Single Element 1000W
- 33" ElectricSchwank Single Element 1500W
- 39" ElectricSchwank Single Element 2000W/2500W
- 33" ElectricSchwank Dual Element 3000W
- 39" ElectricSchwank Dual Element 4000W/5000W
- 61" ElectricSchwank Dual Element 6000W
APPLICATIONS:
- Patios
- Sports venues
- Outdoor smoking areas
- Balcony/terrace
- Hobby shops
- Garage/workshop
- Warehouse facilities
FEATURES:
- Electric heater for Indoor and Outdoor installations due to low clearance requirements
- Wall or ceiling mounted, swivel brackets included
- Stainless Steel construction ensures durability and corrosion resistance.
- Custom Powder Coating Available in Almond, Beige, Biscuit, Black, Bronze, and White for an additional cost. Custom colors have longer lead times.
- Minimal Maintenance Cost compared to gas
- Quartz element for efficient heating
- Control options are available to adjust the heating comfort across your patio with the flick of a switch

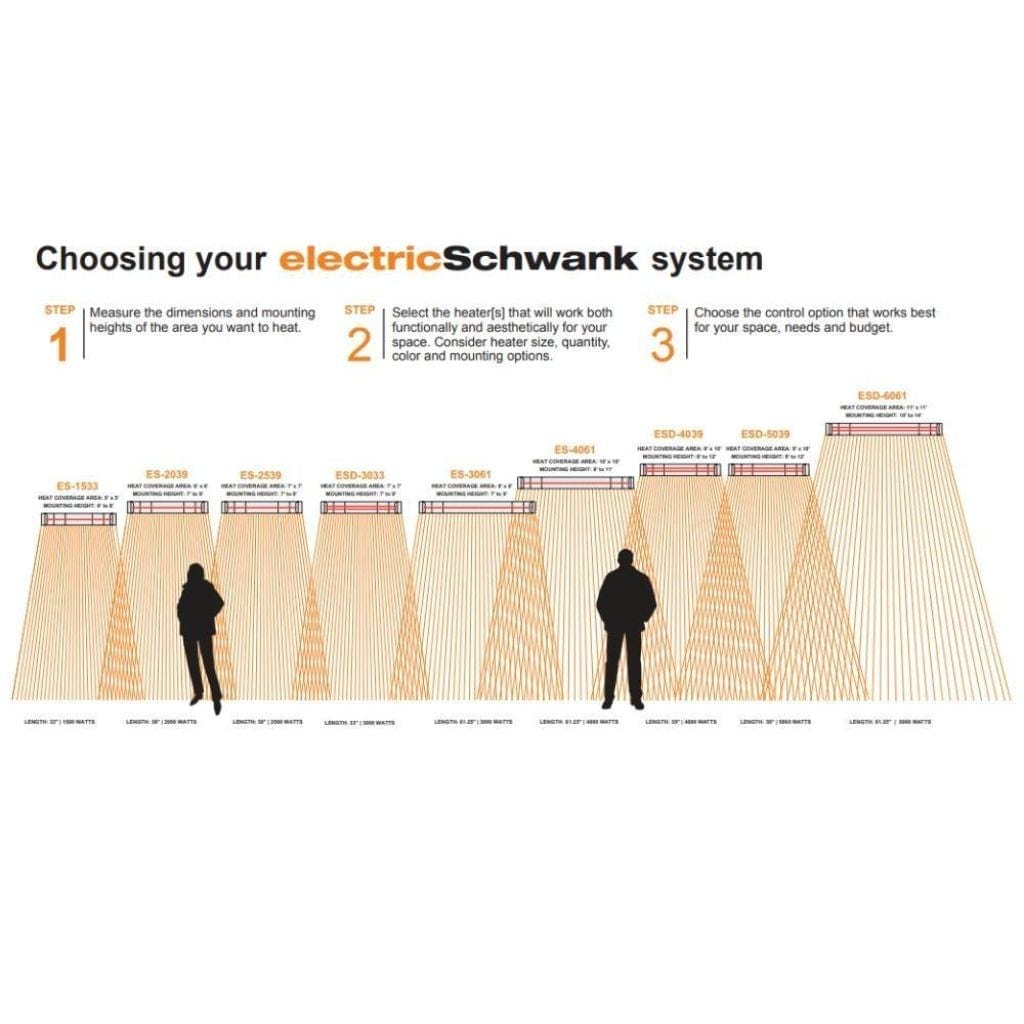

- Mounting Height:
- 3000W model: 7' to 9'
- 4000W model: 8' to 11'
- UL Listed
- Made in the USA
SPECIFICATIONS:
| Installation: | Wall / Ceiling Mounted |
| Grade: |
|
| Fuel Type: | Electric |
| Material: | Stainless Steel |
| Heater Type: | Infrared |
| Heating Area: |
|
| BTUs: |
|
| Volts: | 208V, 240V |
| Dimensions: | 8.1875" D x 6" H x 61.25" W |
| Weight: | 20 lbs |
| Warranty: |
|
OPTIONS & ACCESSORIES:
Click to see Recessed Mount Frame
 |
Schwank Recessed Mount Frames allow you to seamlessly blend your ElectricSchwank heater with the surrounding area and your décor. This stainless steel frame is available in three sizes. Your ElectricSchwank heater will look even better flush mounted on any flat ceiling. Just choose the right frame size for your heater, 33", 39", or 61". |
Click to see Simple On/Off Switches Control Options
 |
Single Switch - Flush Mount c/w S/S Wall Plate and Deep Gang Box Schwank Simple On/Off Switches allow you to turn your electricSchwank heater on or off by flipping a switch. Each heater requires a dedicated switch. Choose a switch based on where it will be installed and how, in-wall or surface mount. For indoor and outdoor protected areas, a weatherproof cover is not needed. |
 |
Single Switch - Flush Mount c/w Weatherproof Cover Schwank Simple On/Off Switches allow you to turn your electricSchwank heater on or off by flipping a switch. Each heater requires a dedicated switch. Choose a switch based on where it will be installed and how, in-wall or surface mount. For indoor and outdoor protected areas, a weatherproof cover is not needed. |
 |
Single Switch - Surface Mount c/w Weatherproof Gang Box and Cover Schwank Simple On/Off Switches allow you to turn your electricSchwank heater on or off by flipping a switch. Each heater requires a dedicated switch. Choose a switch based on where it will be installed and how, in-wall or surface mount. For indoor and outdoor protected areas, a weatherproof cover is not needed. |
 |
Dual Switch - Flush Mount c/w S/S Wall Plate and Deep Gang Box Schwank Simple On/Off Switches allow you to turn your electricSchwank heater on or off by flipping a switch. Each heater requires a dedicated switch. Choose a switch based on where it will be installed and how, in-wall or surface mount. For indoor and outdoor protected areas, a weatherproof cover is not needed. |
 |
Dual Switch - Flush Mount c/w Weatherproof Cover Schwank Simple On/Off Switches allow you to turn your electricSchwank heater on or off by flipping a switch. Each heater requires a dedicated switch. Choose a switch based on where it will be installed and how, in-wall or surface mount. For indoor and outdoor protected areas, a weatherproof cover is not needed. |
 |
Dual Switch - Surface Mount c/w Weatherproof Gang Box and Cover Schwank Simple On/Off Switches allow you to turn your electricSchwank heater on or off by flipping a switch. Each heater requires a dedicated switch. Choose a switch based on where it will be installed and how, in-wall or surface mount. For indoor and outdoor protected areas, a weatherproof cover is not needed. |
Click to see Variable Controls
 |
Single Regulator - Flush Mount c/w S/S Wall Plate and Deep Gang Box Schwank Variable Control for Single Element ElectricSchwank Heaters is a simple and affordable way to control the temperature. Easily adjust the temperature by turning a knob that regulates the voltage supplied to the heater. Each ElectricSchwank heater requires a dedicated variable control regulator Choose a switch based on where it will be installed and how, in-wall or surface mount. For indoor and outdoor protected areas, a weatherproof cover is not needed. |
 |
Single Regulator - Flush Mount c/w Weatherproof Cover Schwank Variable Control for Single Element ElectricSchwank Heaters is a simple and affordable way to control the temperature. Easily adjust the temperature by turning a knob that regulates the voltage supplied to the heater. Each ElectricSchwank heater requires a dedicated variable control regulator Choose a switch based on where it will be installed and how, in-wall or surface mount. For indoor and outdoor protected areas, a weatherproof cover is not needed. |
 |
Single Regulator - Surface Mount c/w Weatherproof Gang Box and Cover Schwank Variable Control for Single Element ElectricSchwank Heaters is a simple and affordable way to control the temperature. Easily adjust the temperature by turning a knob that regulates the voltage supplied to the heater. Each ElectricSchwank heater requires a dedicated variable control regulator Choose a switch based on where it will be installed and how, in-wall or surface mount. For indoor and outdoor protected areas, a weatherproof cover is not needed. |
 |
Dual Regulator - Flush Mount c/w S/S Wall Plate and Deep Gang Box Schwank Variable Control for Single Element ElectricSchwank Heaters is a simple and affordable way to control the temperature. Easily adjust the temperature by turning a knob that regulates the voltage supplied to the heater. Each ElectricSchwank heater requires a dedicated variable control regulator Choose a switch based on where it will be installed and how, in-wall or surface mount. For indoor and outdoor protected areas, a weatherproof cover is not needed. |
 |
Dual Regulator - Flush Mount c/w Weatherproof Cover Schwank Variable Control for Single Element ElectricSchwank Heaters is a simple and affordable way to control the temperature. Easily adjust the temperature by turning a knob that regulates the voltage supplied to the heater. Each ElectricSchwank heater requires a dedicated variable control regulator Choose a switch based on where it will be installed and how, in-wall or surface mount. For indoor and outdoor protected areas, a weatherproof cover is not needed. |
 |
Dual Regulator - Surface Mount c/w Weatherproof Gang Box and Cover Schwank Variable Control for Single Element ElectricSchwank Heaters is a simple and affordable way to control the temperature. Easily adjust the temperature by turning a knob that regulates the voltage supplied to the heater. Each ElectricSchwank heater requires a dedicated variable control regulator Choose a switch based on where it will be installed and how, in-wall or surface mount. For indoor and outdoor protected areas, a weatherproof cover is not needed. |
*Note: "Variable Controls are designed for use with single bulb heaters up to 3000 watts ONLY (max 15 amps)."
Click to see Solid State Control Options
 |
Zone Analog Controller: Schwank Zone Analog Controller has the ability to adjust heating intensity. All Controllers are NEMA 12 RATED, and can be exposed to mist, but not direct rain. Each Intensity Control Knob can control a maximum of three relays in the Relay Panel. |
 |
Solid State Relay Panel: The Solid State Relay Panel and Zone Analog Controller (with or without optional timer) work together. All Relay Panels are NEMA 4 RATED, and completely weather resistant. |
Click to see Home Management Relay Panel
 |
|
Electromechanical Relay Package:
This package includes NEMA 4 rated enclosure kit and appropriate relay depending on the number of heater amp draw.
Click to see Control Panel Enclosure Kit – NEMA 4 RATED
 |
Kit Includes:
*Note: "Each control panel (enclosure) fits maximum of 2 relays." |
Click to see Electromechanical Relays (EMR)
 |
The Electromechanical Relay (EMR) package allows you to install and control your heaters using any 24/120V thermostat or our TC Plus controller.This package includes NEMA 4 rated enclosure kit and appropriate relay depending on the number of heater amp draw.
|
