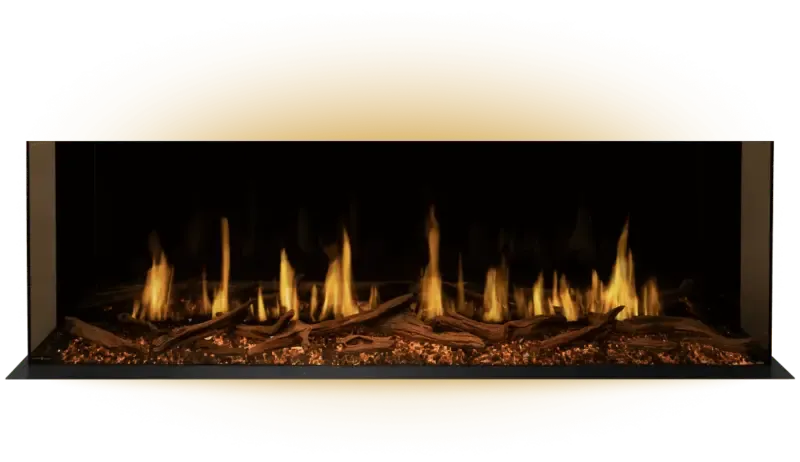

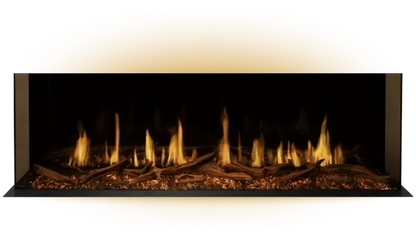

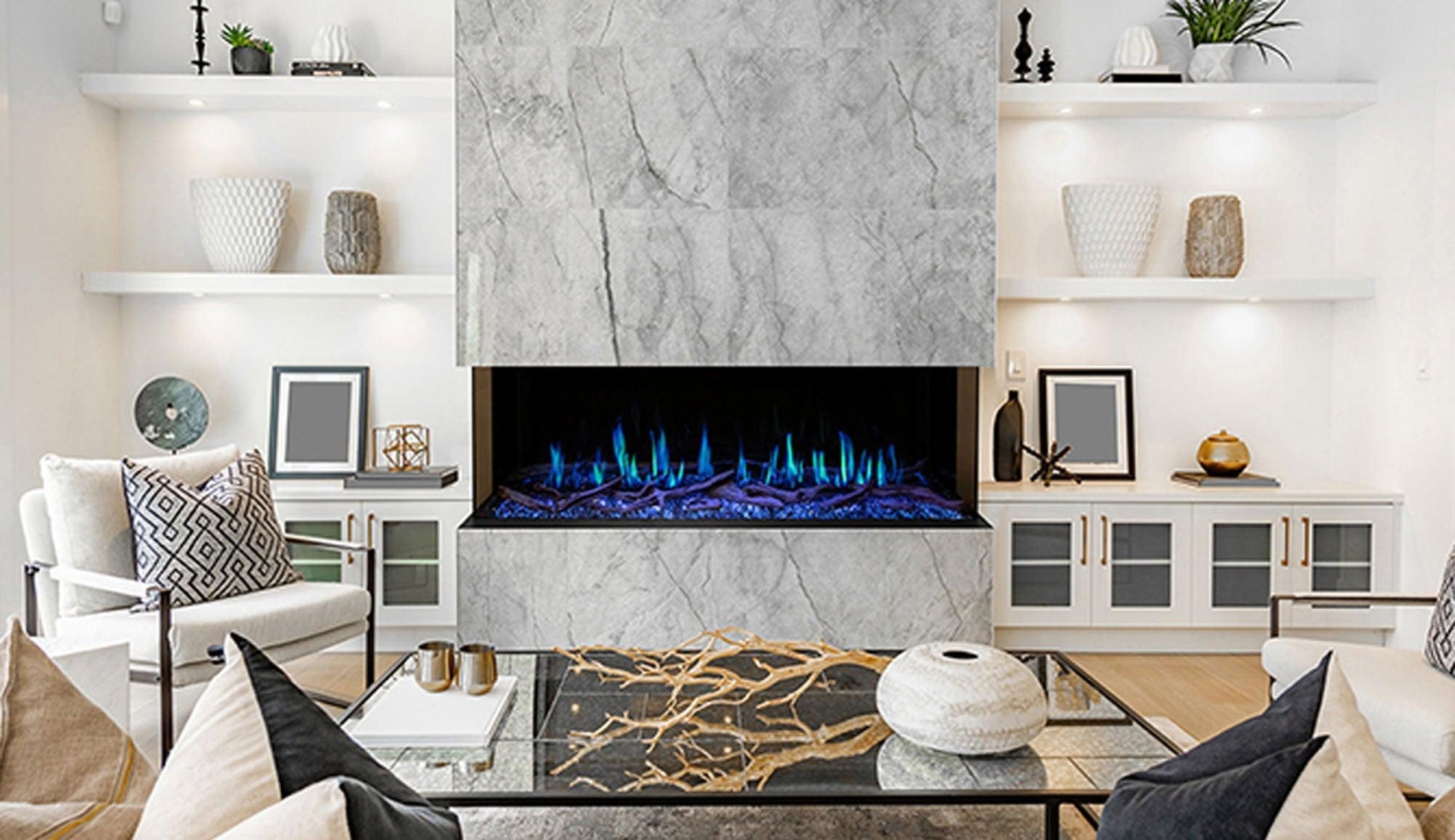

ORION MULTI

Experience the innovative Orion virtual fireplace that utilizes the most optimized technology, creating the most life like-fire in an electric fireplace.

Multi-Sided Electric Fireplace Featuring NEW HELIOVISION™ Flame Technology. One Fireplace Fits Al. Our Orion Linear Electric Fireplace with the Most Versatile Installation Options.

The future of electric flame technology is virtual

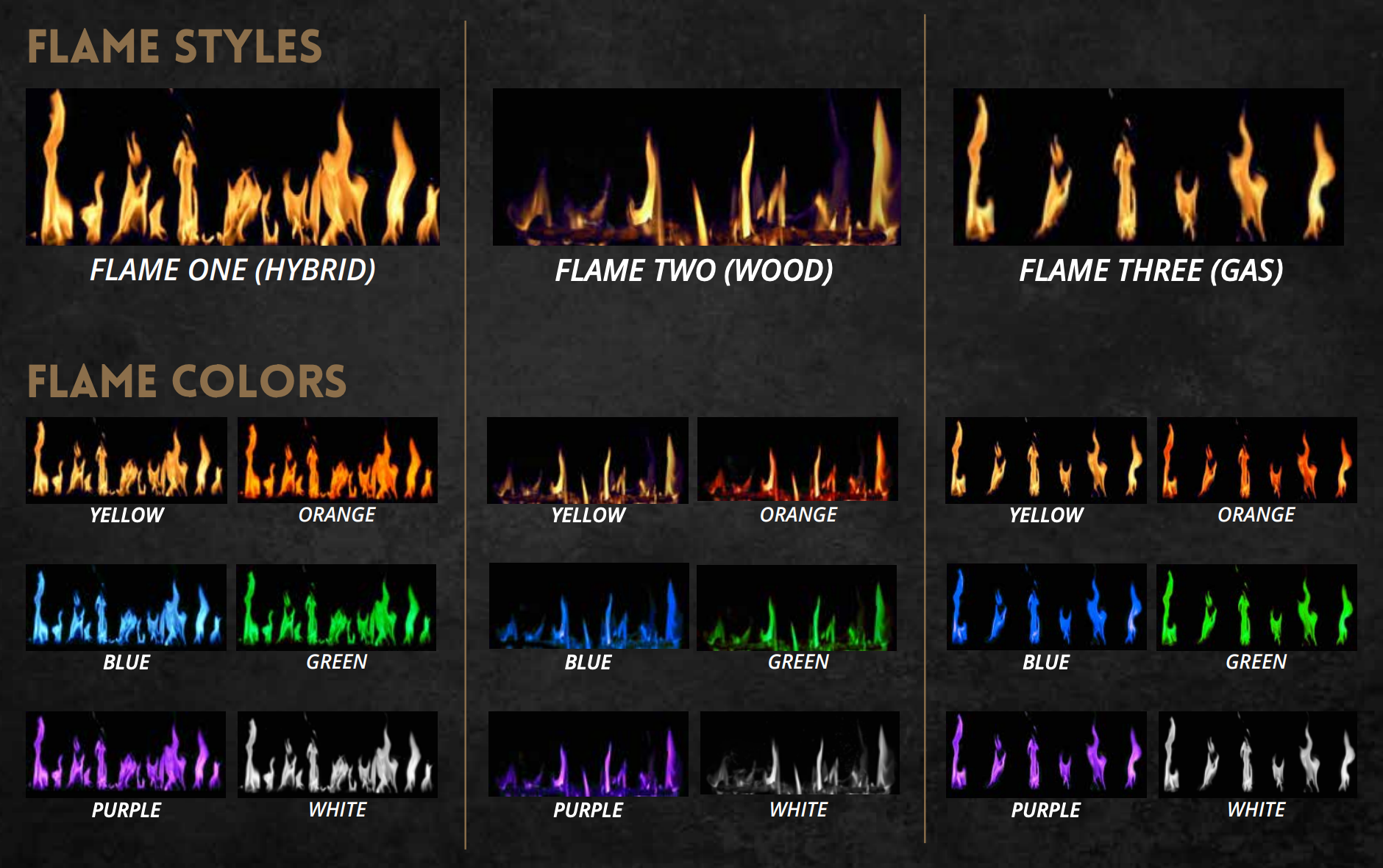

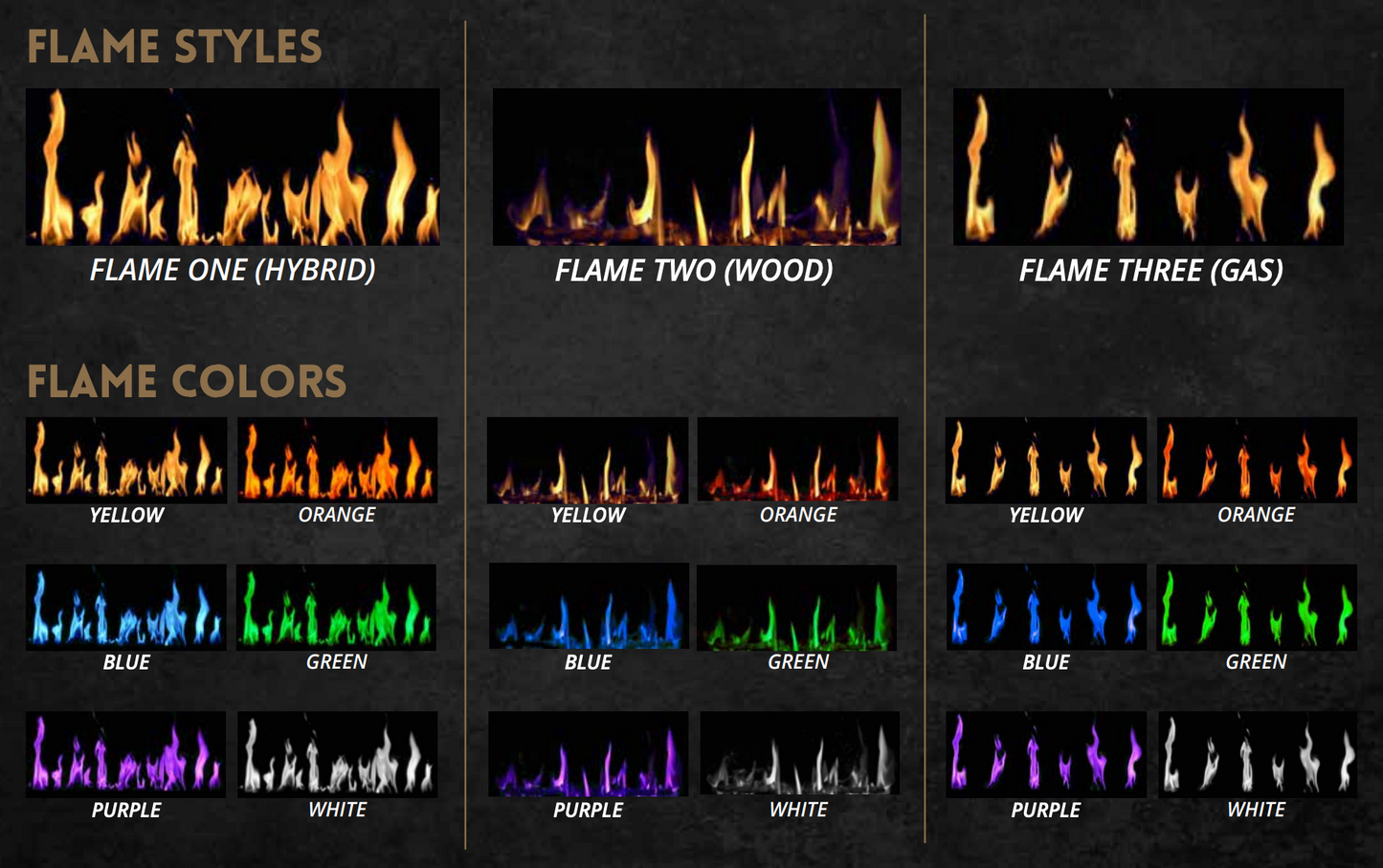

Make every presentation brilliant with three flame choices and color options for

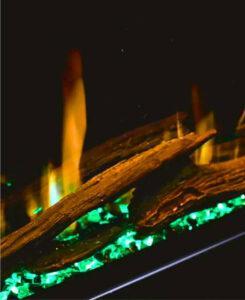

the flame, embers and downlighting, six colors which offers 18 different flame color displays as well and color options for ember bed and downlighting. No matter where you stand or sit, the image quality is consistent. Heliovision technology gives you the premium flame you desire.

Orion is offered in two different series Multi and Slim. Multi which offers five sizes, four install options and a 18" high viewing area. Slim which offers four sizes from 52" to 100", 2 install options and a 15" high Viewing area.

What's Included

• Orion Multi Fireplace
• Wall Mount Bracket

• Crushed Glass

• Driftwood Logs
• Hardware Kit
• Remote Control

*Note: A dedicated 20 Amp (or higher), 2-pole (for 10,000 BTU’s), breaker is required.

Features

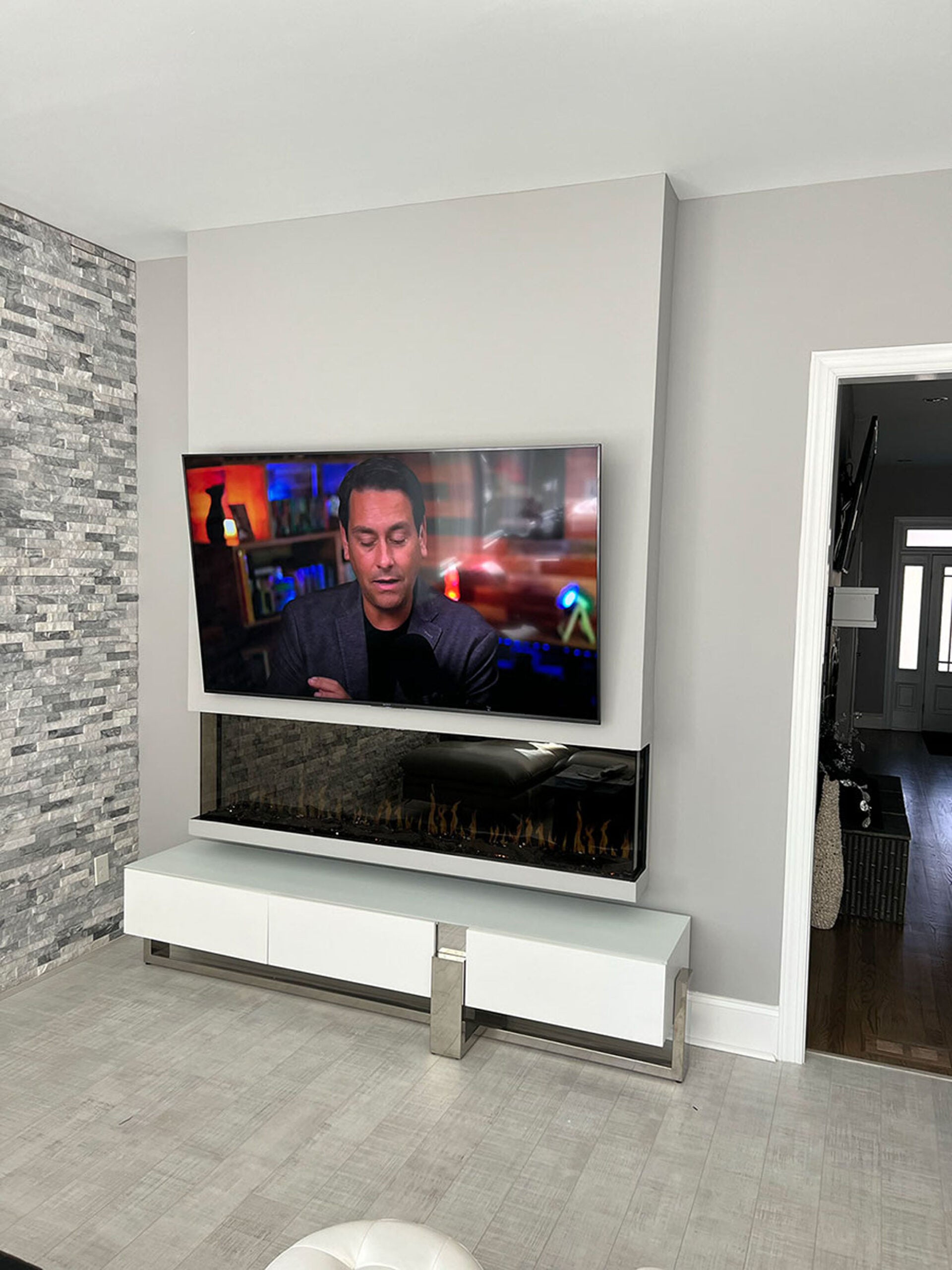

Installation	Front View, Left Corner, Right Corner, Bay Built-In Clean Face or Wall Mount Wall Mount Installs Only 1 ½” From the Wall Sizes: 52”, 60”, 76”, 100” & 120"
Flame Display	Features NEW HELIOVISION™ Flame Technology 18” High Viewing Area – 5″ Deep Ember Bed 3 Flame Patterns – 6 Flame Colors Adjustable Flame Speed Ambient Crackling Sound Multi-Color Ember Bed Multi-Color Downlighting Multi-Dimensional Flame Appearance

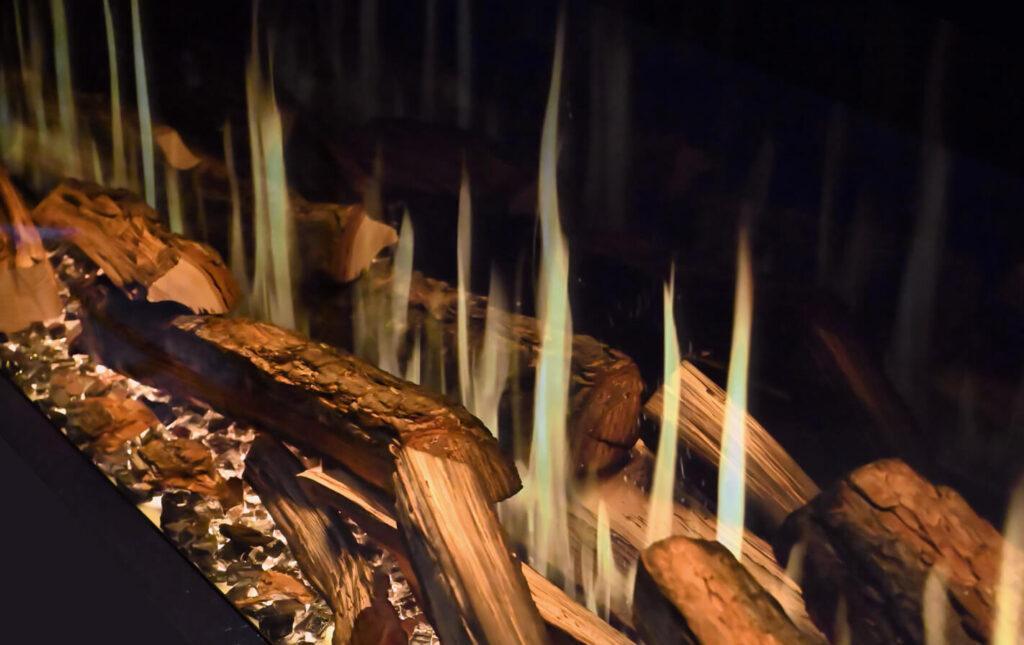

Media	Black Reflective Glass Western Driftwood Log Set
Heat	5,000 or 10,000 BTU Heater Energy Efficient Electric Fireplace High Efficiency PTC Ceramic Heater Heater Lockout Function

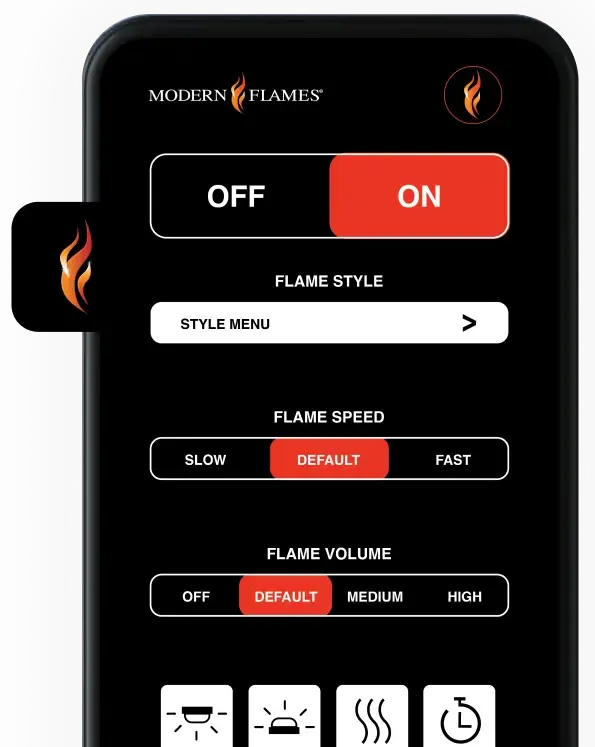

Function	WiFi Controlled via Modern Flames App Handheld Remote Control Built-in Touch Controls Alexa or Google Home Smart Home Platform

Specifications

Fireplace Dimensions	24.31" H x 60" W x 9.56" D
Viewing Area	18.44" H x 58.63" W
Volts	120 Volts | 240 Volts
Installation	Built-In or Wall Mount
Finish/Color	Black
Media Bed	Crushed Glass, Driftwood Logs
Watts	1,465 Watts | 2,930 Watts
Wiring	Hardwire
Heating Area	500 | 800 sq ft.
BTUs	5,000 on low 10,000 on high (Requires hardwiring)

Dimensions

Warranty

FIVE-YEARS WARRANTY

Documents & Files

• Download Product Brochure
• Download Owner's Manual
• Download Product Specifications
• Download Orion Advanced Features
• Orion Series Remote
• Orion No Flames Solution Guide
• Modern Flames Warranty Policy
