Infratech Comfort Input Heat Dual Regulator with Surface Mount and Gang Box - 120V

Description

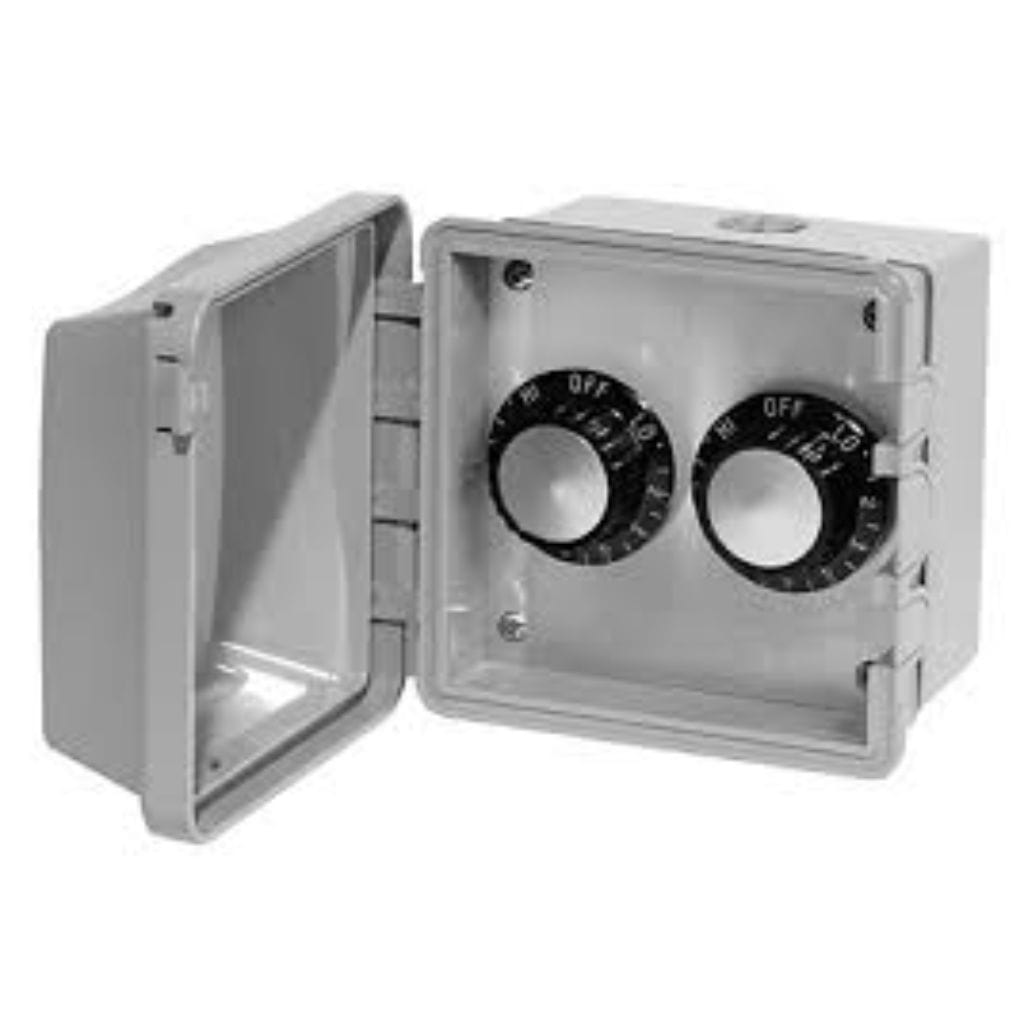

Dual INF surface-mount control assemblies with a weatherproof box for exposed exterior locations. for 120 volt applications must use this item. Includes gang box, stainless steel faceplate, and weatherproof box. 15 amp maximum load.

The INF input regulator is considered an "Infinite Switch". It operates with a bi-metal contact. It pulses the heater on and off as the internal contact heats up or cools down. It is considered a coarse form of control and is commonly used for electric heaters.

Features

• 15 amp maximum load per switch
• For 120 volt applications
• Stainless Steel Face Plate
• UL Listed
• 2 Year Warranty

Specifications

• Overall Dimensions: 4.38" (W) x 4.38" (H)
• Weatherproof box: 4 1/2" h x 4 1/2" w x 2 1/8" d
• SS Plate: 4 3/8" h x 4 3/8" w
• Weatherproof Cover: 5 1/2" h x 5 1/2" w x 2 3/4" d (tab on cover extends 1/4")
• Threaded Knock Out: 3/4"

Downloads:

• INF Product Sheet
• Product Sample Wiring Diagram
• Control Option Brochure
