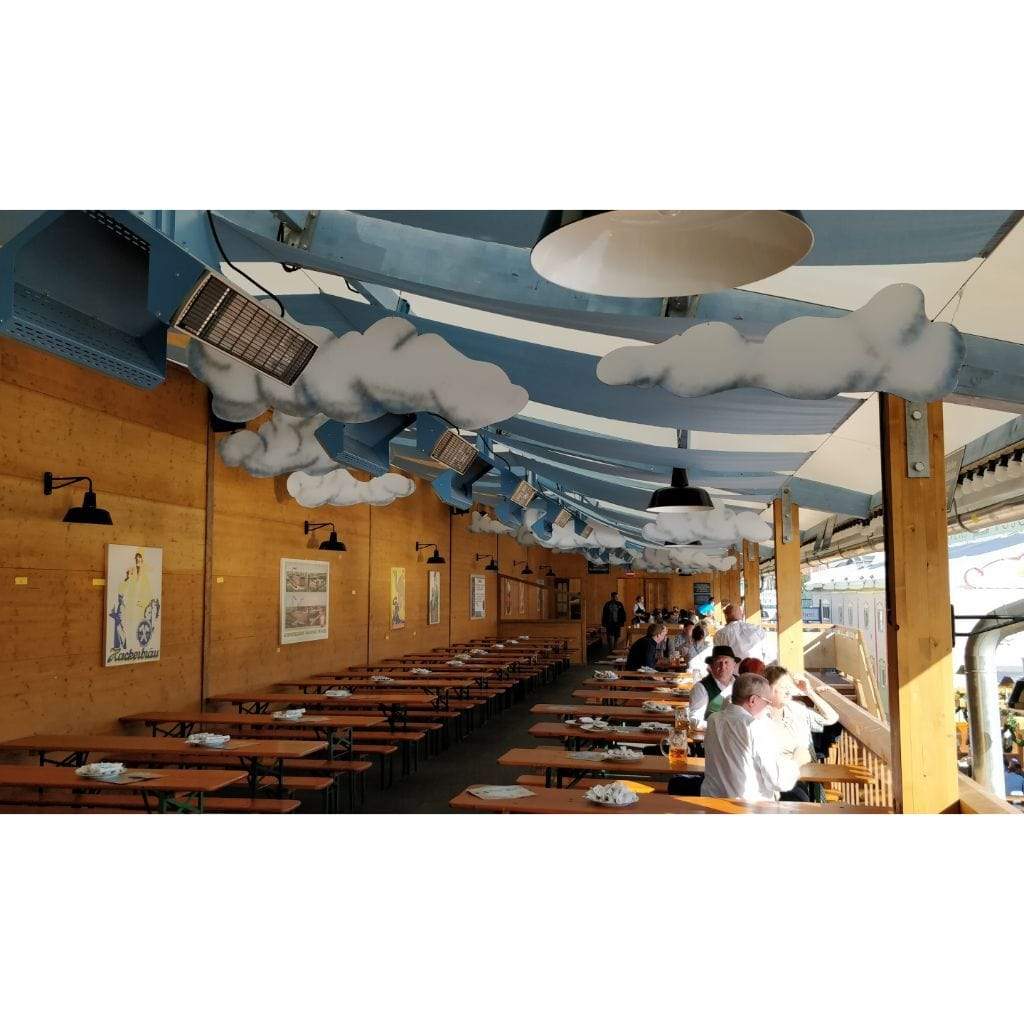

HEATSCOPE® Spot radiant heaters produce a subtle orange glow which is only 30-40% of the light output of the traditional radiant heaters. The reduced light output is due to the use of a color matching grill screen in front of the satin surface carbon heating elements that can be either a black or white. They are midwave radiant heaters that produce heat almost instantly (less than 15 seconds) and are ideal for providing heat to outdoor areas such as partially open patios or balconies.
Easy to install, this heater comes with a wall or ceiling mounting bracket. The mounting kit includes everything needed to quickly install the heater. After installation, adjust the angle of the heater to focus on heating a particular area. Enjoy using the heater almost instantly!
The Spot 2800W is UL Listed.
What's Included: Electric Heater, Mounting Parts, and User's Manual
Click to see Included Accessories
 |
MOUNTING PARTS |
KEY FEATURES:
Efficiency Made Simple
HEATSCOPE® is committed to efficiency! All VISION, SPOT and PURE radiant heaters were developed in accordance with the newest findings concerning the mid-wave IR range. This means that between 90% and 94% of the energy used is turned directly into ambient heat.
Real Infrared
All HEATSCOPE® design radiant heaters produce natural infrared heat in the (fast) mid-wave IR range. This means that the heat feels particularly pleasant and is effective exactly where it is needed – that’s directly under the first layers of skin, but not too deep in the tissue.
Inviting & Cozy
Other radiant heaters use light tubes to produce heat as a by-product – at HEATSCOPE® we exclusively use innovative carbon technology: two carbon spirals are powered with an electric current, they begin to glow and produce a particularly pleasant warmth.
Super Fast
Output peaks are a thing of the past with HEATSCOPE® power heaters. Although the heaters start up slowly, they reach 100% in no time: the range of SPOT models take only 15 seconds, and the VISION & PURE range takes a maximum of 30 seconds owing to the glass front.
Full Control
The separate model ranges are either delivered with their own IR remote control or with a 4-wire cable for integration into an external control system (output dependent).
Award-Winning Design
Delivers pleasant heat without the distraction. Clean-cut, modern designs and colors easily blend into any décor.
Weather-Resistant
All models are certified with an IP rating for protection against dust, splash-water, and wind.
No Aggressive Red Light
Produces a very ambient, modest light based on double carbon heating elements.
High Efficiency
Up to 94% of the energy used is turned into ambient heat and transferred directly to nearby people and surfaces for maximum efficiency.
2-Year Warranty
Our radiant heaters come with an industry leading two-year limited warranty.
STANDARD FEATURES:
- Electric Carbon Radiant Heater for Indoor or Protected Outdoor Use
- Optional weather shield is required for open outdoor installation
- Wall or Ceiling Mounted
- Available in Black or White
- Maximum heat with minimum light
- Aluminum construction
- Glass front
- Adjustable Mounting Bracket for directional heat
- Easy to install
- UL Listed
SPECIFICATIONS:
|
Dimensions |
34.8" L x 7.2" W x 3.1" H |
|---|---|
| Weight |
9.9lb [4.5kg] |
| Warranty |
|
TECHNICAL SPECIFICATIONS:
|
Installation Height |
6.9-9.8 ft |
|
Power / Current |
2800 W / 12.17 A
|
|
Voltage |
220-240 V AC ~ 50/60 Hz
|
|
Max Power In |
15 sec |
|
Radiant Efficiency |
94% |
|
Visible Light |
< 600 Lumen |
*Please Note: "All values are approximate. Max. temperature increases achievable in enclosed spaces at 16 °C (dependent on the respective installation conditions and mounting height)."
COVERAGE AREA:
*Note: "This graphic shows the heating performance of Heatscope Spot 2800W heaters. Please note that the heat output always depends on a wide range of factors."
TECHNICAL DRAWINGS:
|
Front View |
 |
|---|---|
| Side View |
 |
| Top View |
 |
CA Residents: See Prop 65 WARNING.
DOWNLOADS:
- Download Installation and Operation Manual
- Download C&I Manual
- Download Specs Sheet
- Download Summary Brochure
OPTIONS & ACCESSORIES:
Click to see Mounting Accessories (Extension Rods)
 |
100MM Extension Rod - White Extend the reach of your HEATSCOPE® heaters on high ceiling installations with 100mm Extension Rods. |
 |
100MM Extension Rod - Black Extend the reach of your HEATSCOPE® heaters on high ceiling installations with 100mm Extension Rods. |
 |
300MM Extension Rod - White Extend the reach of your HEATSCOPE® heaters on high ceiling installations with 300mm Extension Rods. |
 |
300MM Extension Rod - Black Extend the reach of your HEATSCOPE® heaters on high ceiling installations with 300mm Extension Rods. |
 |
500MM Extension Rod - White Extend the reach of your HEATSCOPE® heaters on high ceiling installations with 500mm Extension Rods. |
 |
500MM Extension Rod - Black Extend the reach of your HEATSCOPE® heaters on high ceiling installations with 500mm Extension Rods. |
Click to see Dual Fixing Brackets
 |
Install two heaters in one mounting system using HEATSCOPE's Dual Fixing Brackets. |
Click to see Lift System
 |
HEATSCOPE offers its own unique solution for flush ceiling installation. A lift system moves the radiant heater out of the ceiling recess as soon as it is switched on. The heater is automatically retracted after a short cooling time. |
Lift Add-Ons (*Require the Lift System):
Add a box case and frame to complete the ceiling recess uniformly and beautifully.
*Note: "Lift Box and Lift Frame require the Lift System.
Click to see Spot 2800 Lift Box
 |
Box case for HEATSCOPE® Spot 2800 unique lift system solution for flush ceiling installation. |
Click to see Spot 2800 Lift Frame
 |
Frame for HEATSCOPE® Spot 2800 unique lift system solution for flush ceiling installation. |
Click to see WeatherShield 3
 |
WeatherShield 3 - Black The HEATSCOPE® weather shield is designed to protect the Heatscope heater from the elements in installations where no covering is possible. |
 |
WeatherShield 3 - White The HEATSCOPE® weather shield is designed to protect the Heatscope heater from the elements in installations where no covering is possible. |
Click to see Dual WiFi Smart Switch
 |
This WiFi based 2 gang switch can connect and independently control the operational settings available in your HEATSCOPE® heater. The 2 gang switch offers easy installation and operation, quick WiFi access, and remote control through APP EweLink. It is installed inline between the fuse box and the Heatscope Heater, and it allows the appliance to receive commands via a Smartphone (eWeLink App) including:
|
Zigbee Accessories (Use with Dual WiFi Smart Switch Control):
Wireless Switch (remote control) and Motion Sensor require a ZigBee Bridge to operate. You can group up to 32x Heatscope Heaters per bridge controller, but every heater needs its own Dual WiFi Smart Switch.
Click to see Zibgee Bridge
 |
This ZigBee Bridge is the heart of a smart home/space automation setup that enables you to remotely manage a selection of ZigBee devices and sensors. It maximizes efficiency for up to 32 connected sub-devices which are ZigBee-based switches, plugs and security control/ activation sensors. Ideal for large residential and commercial spaces where multiple appliances are installed so you can operate them as a group rather than as independent appliances. |
Click to see Zibgee Wireless Switch (*Require the Zigbee Bridge)
 |
This ZigBee Wireless Switch is effectively a mini portable remote control that can be placed strategically for quick and easy operation of your heater. Use the app to set up actions around the home or commercial setting eg a single tap could turn all appliances on LOW, a double tap could turn everything on HIGH then a single tap could turn everything OFF at the same time. |
Click to see Zibgee Motion Sensor (*Require the Zigbee Bridge)
 |
This ZigBee Motion Sensor is an extra-handy smart device that can be placed anywhere in your home or commercial space to detect motion and trigger actions. For the home you can set a trigger to turn the HEATSCOPE® appliance OFF if no motion is detected for a specified time. For restaurants you can trigger a bank of HEATSCOPE® heaters (or series of appliances) to switch ON if motion is detected at a zone of tables. This means you can control your heating bills at the same time as delivering comfort and warmth to your visitors and customers and not be wasteful with energy. |
