Cascade Series

Flush-mount, Smart Linear Electric Fireplace

It‘s time to make the electric fireplace smart, with the introduction of our Cascade Series!

Providing warmth, comfort, and now ease of control with our app and voice control through Amazon Alexa or Google Home. Easy to install and little-to-no maintenance, the Cascade Series has an exceptional flame effect and does not require any venting.

The fireplace outputs heat from the front, there it can give heat even when built into the wall.

What's Included

	Smart Linear Fireplace
	Multifunctional Remote
	Crystal and Faux Log Media
	Black Trim Kit

Features

• Direct 120V plug-in to the outlet
• No ventilation requirements
• High & low heat settings, heats up to 400 sq ft
• Adjustable flame and flame bed color settings
• Remote control & app included
• CSA certified, overheat protection
• Controllable flame intensity
• Easy direct push-in installation
• Serviceable from front of unit
• No harmful fumes emitted
• Energy efficient LED lighting
• Voice-assistant compatible (Controllable Red, Blue, and Yellow intensities, with color mixing capability)

• Stylish & Functional

  • flame & media bed color options
  • front-facing heater
  • smart control ready
• Safe Heating

  • overheat/blockage protection & auto shut-off

  • heater timer settings, thermostat on remote
  • no gas or toxins released
  • Certified to strict building codes
• Efficiency & Comfort

  • great for zone heating
  • all electric energy saving design
  • enjoy flames without heater

Dynasty Cascade BTX is available in five sizes - 52", 64", 74", and 82" wide, to fit in any room, from a small reading nook to a larger family room. This fireplace is the perfect addition to any modern home!

Ideal for

• New construction
• Renovations
• Zone Heating
• Residential
• Apartments & Condos
• Restaurants & Lounges

Specifications

Dimensions	64.5" W x 20.25" H x 6.5" D
Framing Size	60.75" W x 19.5" H x  6" D
Viewing Area	59⅜” W x 15” H
Voltage	120 V
Amps	12 A
Power / Max Power Consumption	1500 Watt
Heater Timer	0.5h - 9h
Temperature	16ºC-28ºC / 60ºF-82ºF
Cord Length	2m / 70”
Flame Only	25 W
Outlet	Standard (Type B)
Certification	CSA
BTU	5000 (High Heat)
Protocol	WiFi
Heating Area	400 sq ft
Remote	Included
App	Android / iOS
Circuit	15A, 120V / 60HZ
Lighting Only	34 W
Standby	1.5 W

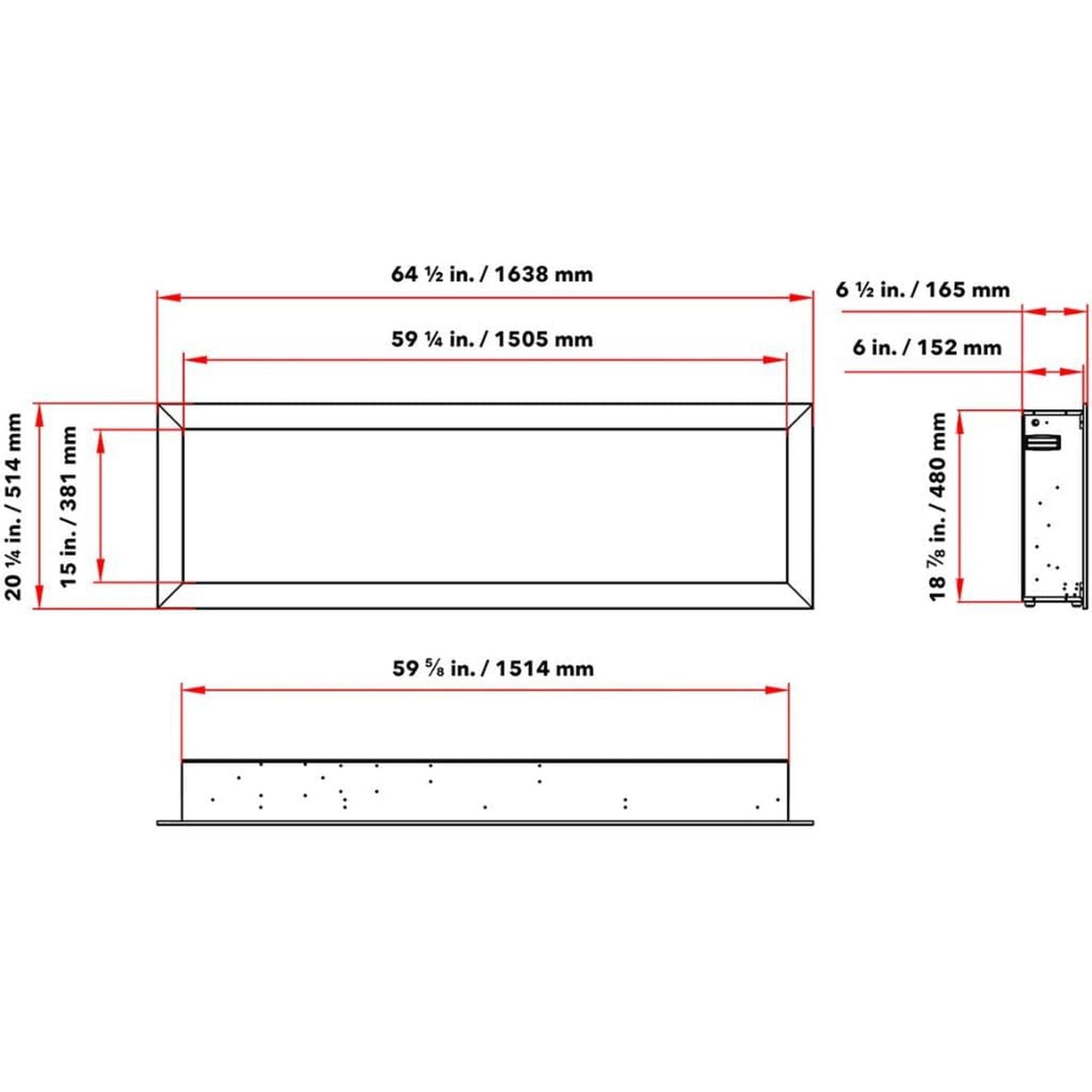

Dimensions

Warranty

LIMITED TWO-YEARS WARRANTY

Documents & Files

• Product Info & Flyer
• Framing Guide
• Quick Installation Guide
• Connect to Alexa

• Connect to Google Home
• Connect to Siri
