Optimyst Linear 86" Water Vapor Fireplace - OLF86-AM
Experience a lifelike fire with the new Optimyst® Linear. Patented vapor flame technology and advanced LED lighting work together to flawlessly imitate true flames and smoke. Optimyst reinvents the future of fireplaces with its safe, sustainable, and state-of-the-art design.
Where quality and creativity meet, the new Optimyst® Linear combines leading flame technology, the popular linear style, exclusive customization, and modern controls. The patented Dimplex Optimyst® technology creates a unique 3D flame and smoke effect. The water vapor flame and the sound of a natural wood fire create a realistic wood-burning fireplace experience. Users can customize the flame and color effects to suit their personal tastes and enjoy operating their modern fireplace using Bluetooth® technology on a convenient smartphone app.
What’s Included
- 86" Opti-Myst Linear Electric Fireplace
- Sight and Sound Remote
- Acrylic Ice Media
- Driftwood Media
Not Included (Sold Separately)
- Plug Kit
- Plumb Kit
Features
- Optimyst® uses patented technology to produce water vapor that closely imitates true flames and smoke. As the flames do not generate heat, the glass is cool to touch, making it safe for everyone.
- Safe concealed ceramic heat, plus 11% energy savings, warms up to 1,000 sq. ft. Can be used as a primary or secondary heating source depending on room requirements.
- Slim Design - A zero-clearance firebox with a slimmer 12" deep design.
- Built-in Timer set for 30 minutes to 8 hours.
- Advanced, multicolor LED lighting projects onto the flames to help create the fire illusion.
- There are no harmful emissions with the Optimyst® Linear; enjoy a sustainable, eco-friendly electric fireplace.
- The Optimyst® can be placed anywhere to let your unique vision come to life. No chimney, gas lines, or venting required. Install the Optimyst® wherever your heart desires—the options are limitless.
- The Optimyst® Linear includes wi-fi enabled options. Control your fireplace from anywhere with the Dimplex Flame Connect App. Adjust the flame intensity, colors, heater, and sound all through your phone. A physical remote is included as well.
- Set the mood for you and your guests with new multicolor flame effects. The ability to control individual lights and mix different colors provide an added level of depth. Choose between a traditional amber glow or go contemporary using a full range of customizable colors—you also have the option to automatically rotate through colors.
- Adjustable spacers allow for customizable flame shapes, generating a unique fire experience.
- The Optimyst® provides a complete sensory experience with the option to emit a crackling sound at your chosen volume level.
- The fully-sealed glass insert perfectly protects and stabilizes the fire—no need to worry about drafts disrupting the flames as it’s fully self-contained.
- Integrated self-diagnostics that simplify troubleshooting and improve service.
- Designed to connect to main water line providing continuous operation. Optional plumbing kit is available.
- Can be used as a supplemental heat source of up to 1000 sq. ft. with different temperature settings (normal and eco-mode). Enjoy the flames year-round without the heat if desired.
- Water vapor technology allows for flexible media bed choices—no fire hazard here. The Opti-myst includes Acrylic Ice and Driftwood media kits. You can even add your own media for a distinct design.
- Simple, worry-free installation—the Opti-myst is zero clearance with a slimmer depth of under 12in.
- The optional plumbed water supply kit provides continuous operation without the need to refill water tanks. Compatible with copper piping only, the plumbing kit is easy to install to connect to existing waterlines.
- If this unit is installed in a bathroom, it must be protected by a GFCI receptacle or circuit. If a receptacle is used, it must be readily accessible. This electrical appliance is NOT watertight. To prevent electric shock, it must be installed to prevent water from entering the unit, or installed away from showers, tubs, etc. Never locate a fireplace where it may fall into a bathtub or other water container.

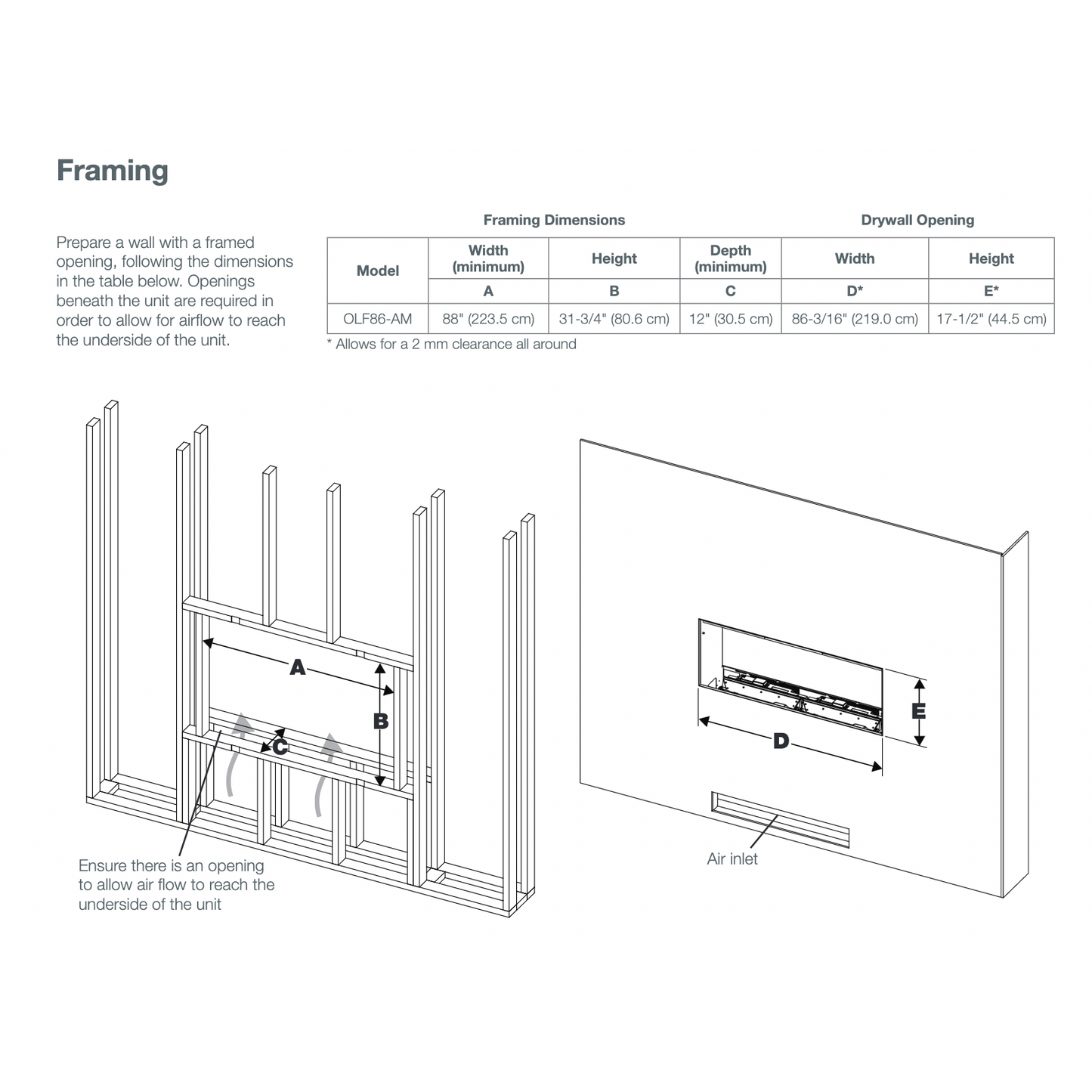

- Fresh air inlets are required for airflow to reach the underside unit. Failure to include a fresh air inlet may result in poor flame performance and damage to the fireplace.
- Breathtaking Ambience: Optimyst ® delivers a world class electric fireplace
experience that flawlessly imitates true flames and smoke.
- Clean & Sustainable: Optimyst requires no fuel or venting as it runs on
water and electricity and uses reduced energy for heating.
Specifications
Dimensions (Inches) |
31.5" H x 87.5" W x 11.8" D |
Dimensions (cm) | 80.01 H x 222.25 W x 29.97 D |
Model Number |
OLF86-AM |
Fuel Type/ Power Source | Electric |
Heat Type | Fan Forced |
Heat Vent location | Front |
Decibels | 55 |
Adjustable Flame Speed | 1 |
Automatic Shut-Off | Yes |
Built-in Thermostat | Yes |
Adjustable Flame | Yes |
Remote Control | Yes |
Adjustable Brightness | Yes |
Power Connections | Hard Wired |
Thermostat Type | Electronic/Digital;Non-Programmable;Other |
Element Type | Ceramic |
Heating Range | 1000 sq. ft. |
Timer | 1 |
Product Weight (lb) | 231.486 |
# of fan speeds | Variable |
BTU | 3480 AT 120 V~; 8189 AT 240 V~ |
Voltage | 120/240 |
Wattage | 1020/2400 |
AMPs | 8.5/10 |
Heat/ Sq ft *Primary Heat Source | 300 |
Battery Technology in Remote Control | Lithium Ion |
Product Weight (kg) | 104.98 |
Viewing Area Dimensions | 85.8" W x 14.30" H |
Assembly Time | 8.5/10 |
Safety Agency Certification File | E71416 |
