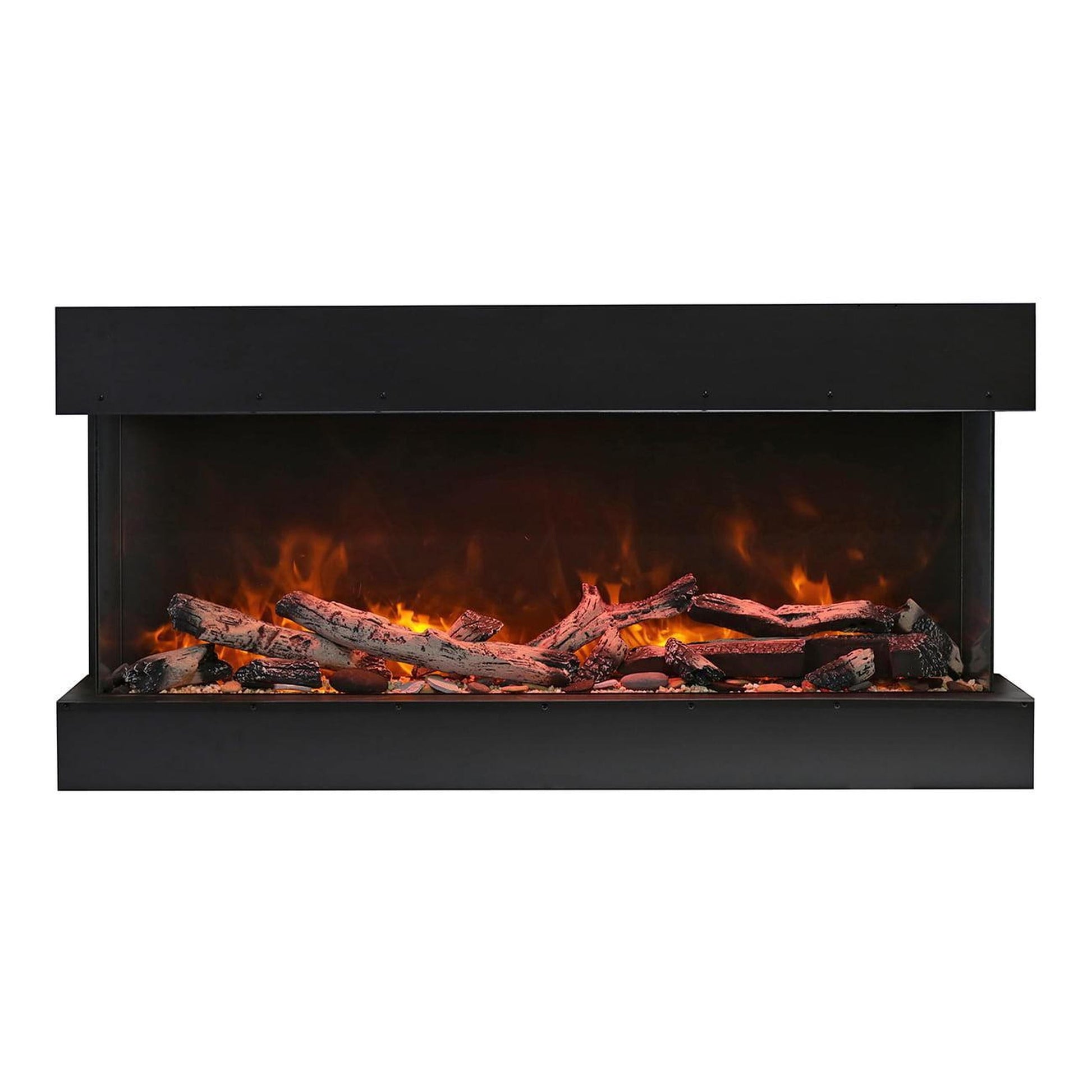

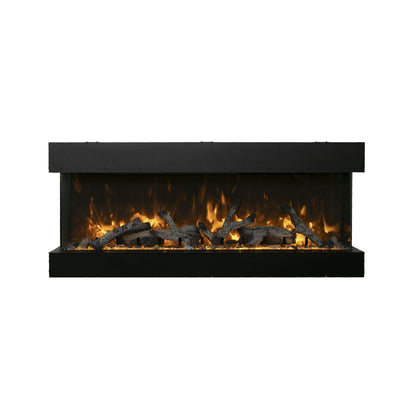

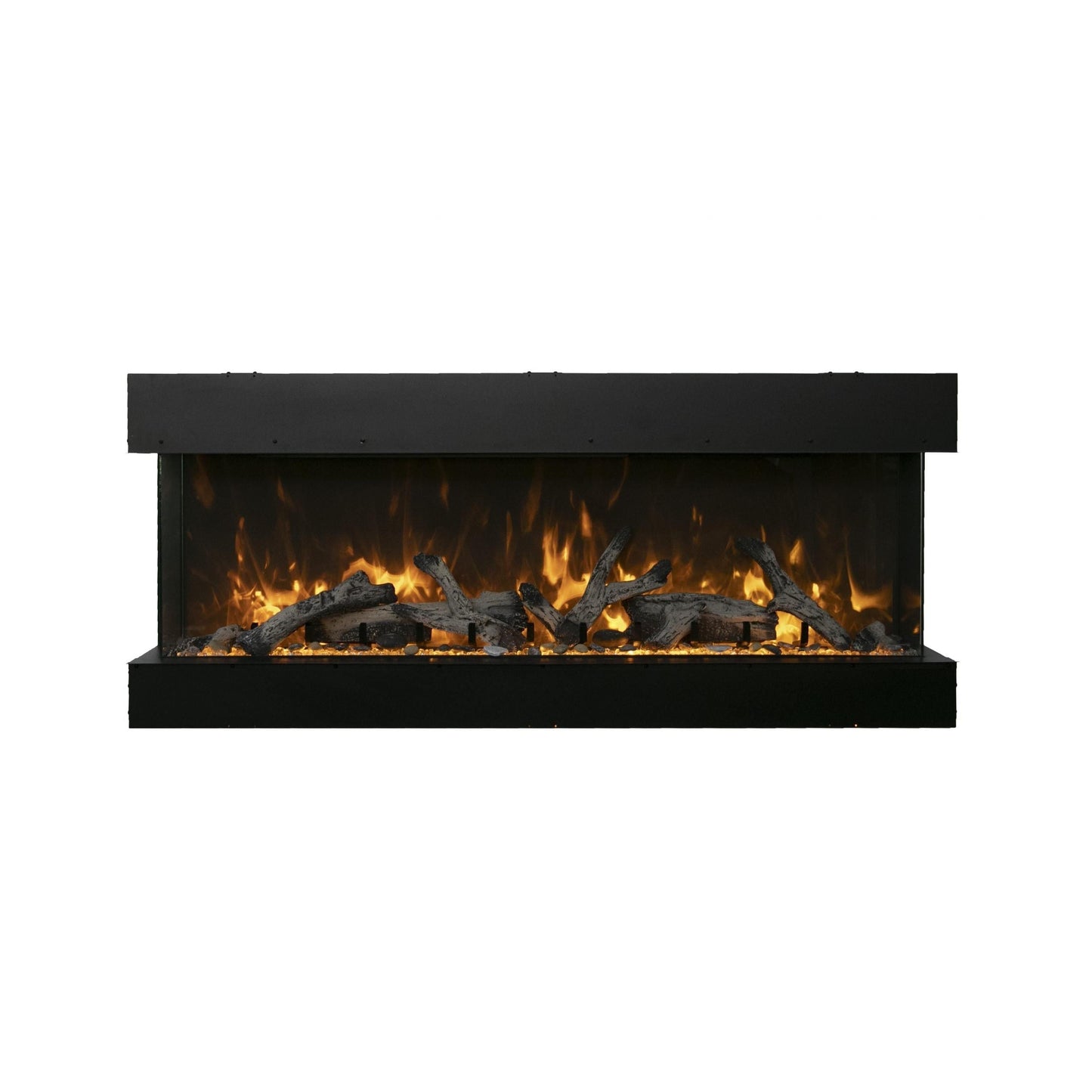

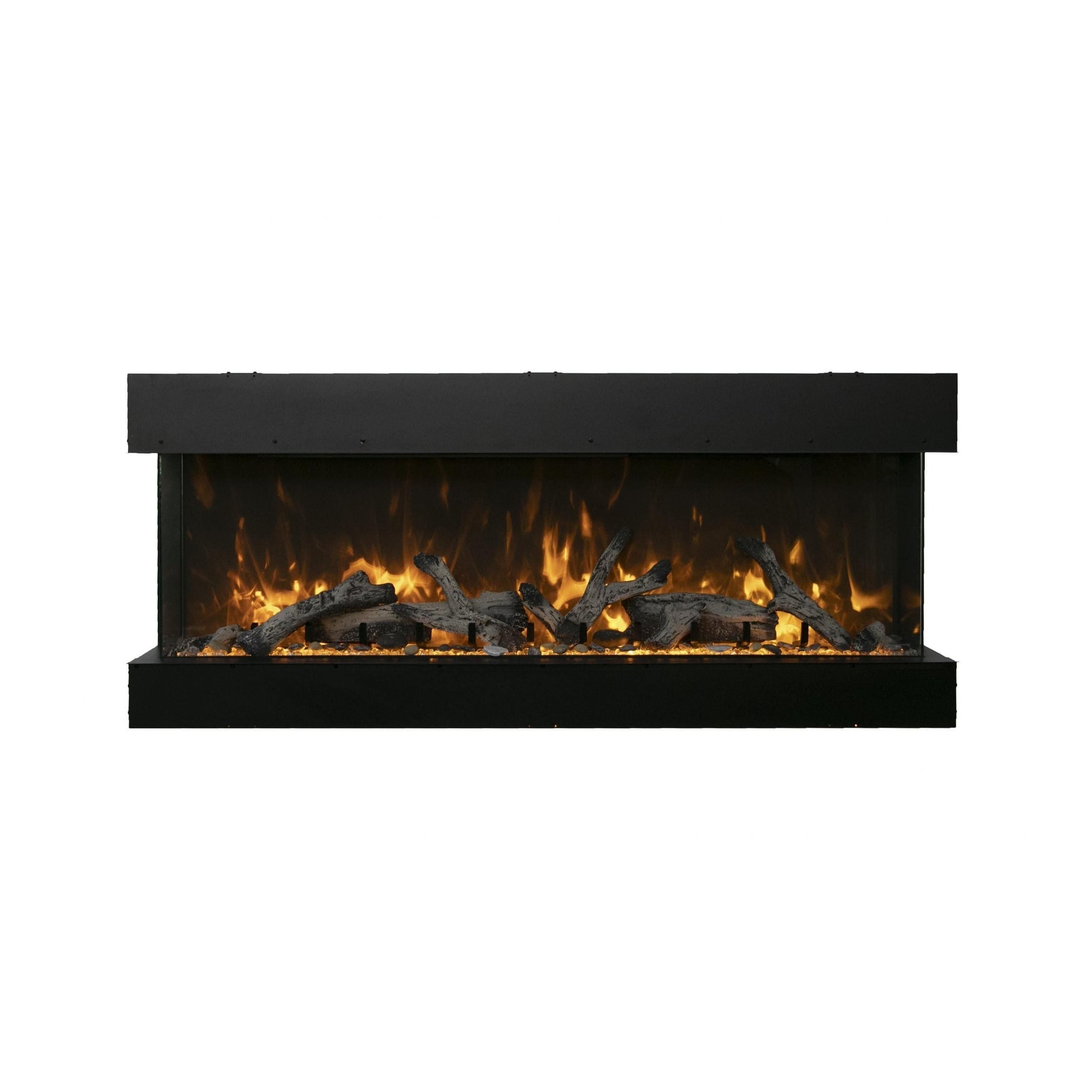

Amantii Tru-View XL Deep 60" Built-In Three Sided Electric Fireplace

Name: Amantii Tru-View XL Deep 60" Built-In Three Sided Electric Fireplace
Brand: Amantii
SKU: 60-TRU-VIEW-XL + FI-109-Diamond
Price: 3399.0 USD
Availability: InStock

$3,399.00

~~$3,999.00~~ $3,399.00

Sale Sold out

Shipping calculated at checkout.

FREE Included Decorative Media (Choose One) ICE Media Kit Drift Design Media Kit Birch Design Media Kit Rustic Design Media Kit

Product variants

Free Shipping on Orders Over $300
Same-Day Order Processing

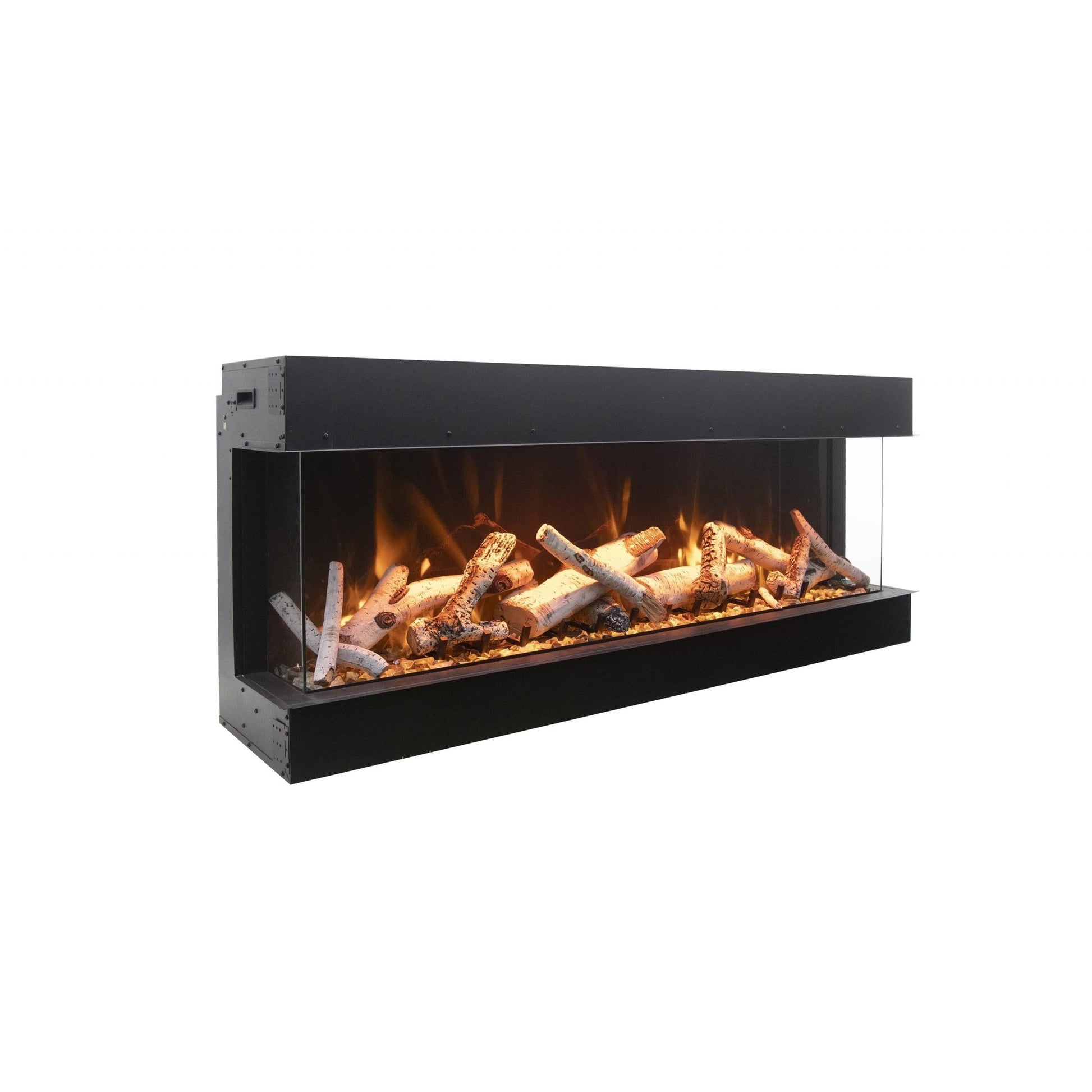

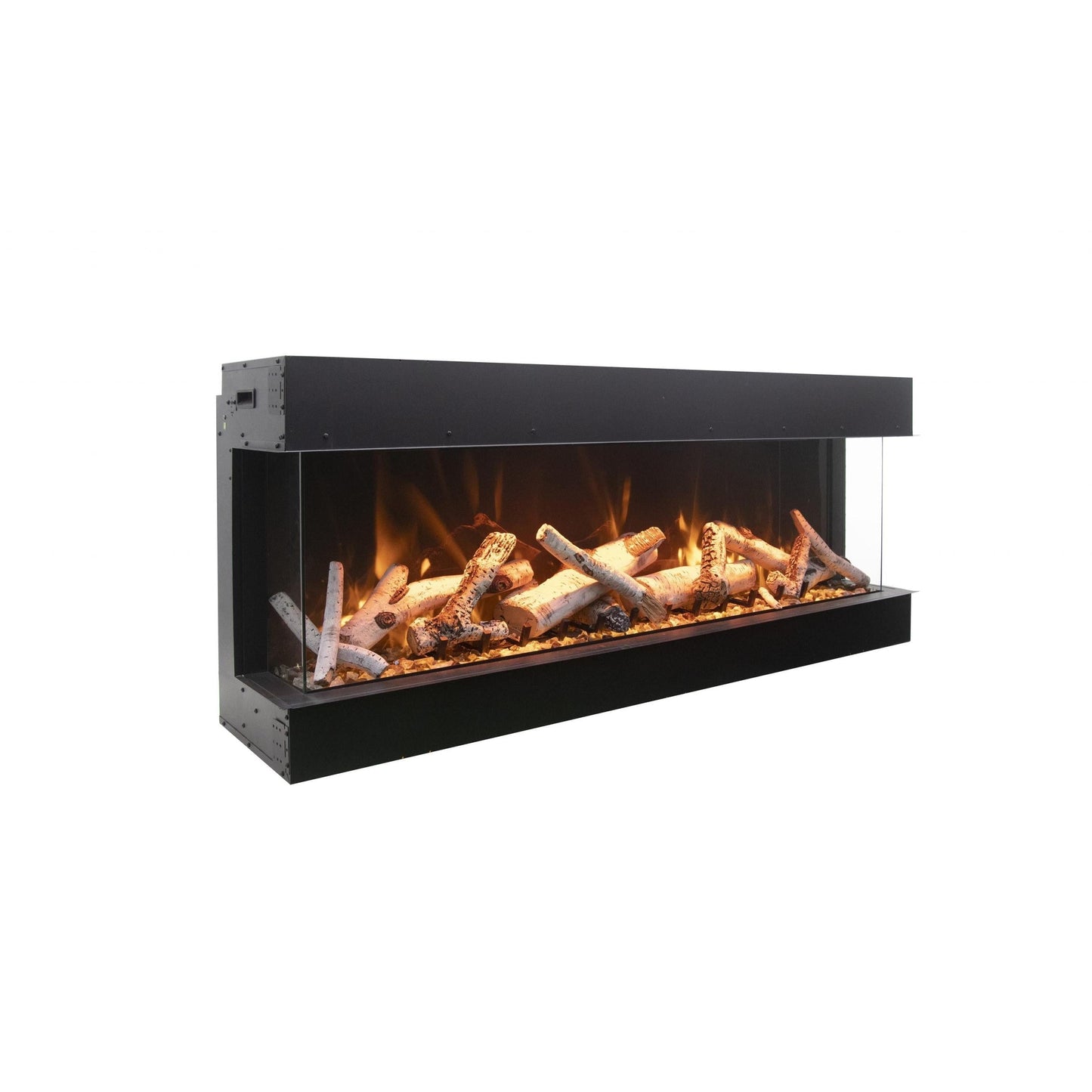

STUNNING FROM ANY ANGLE

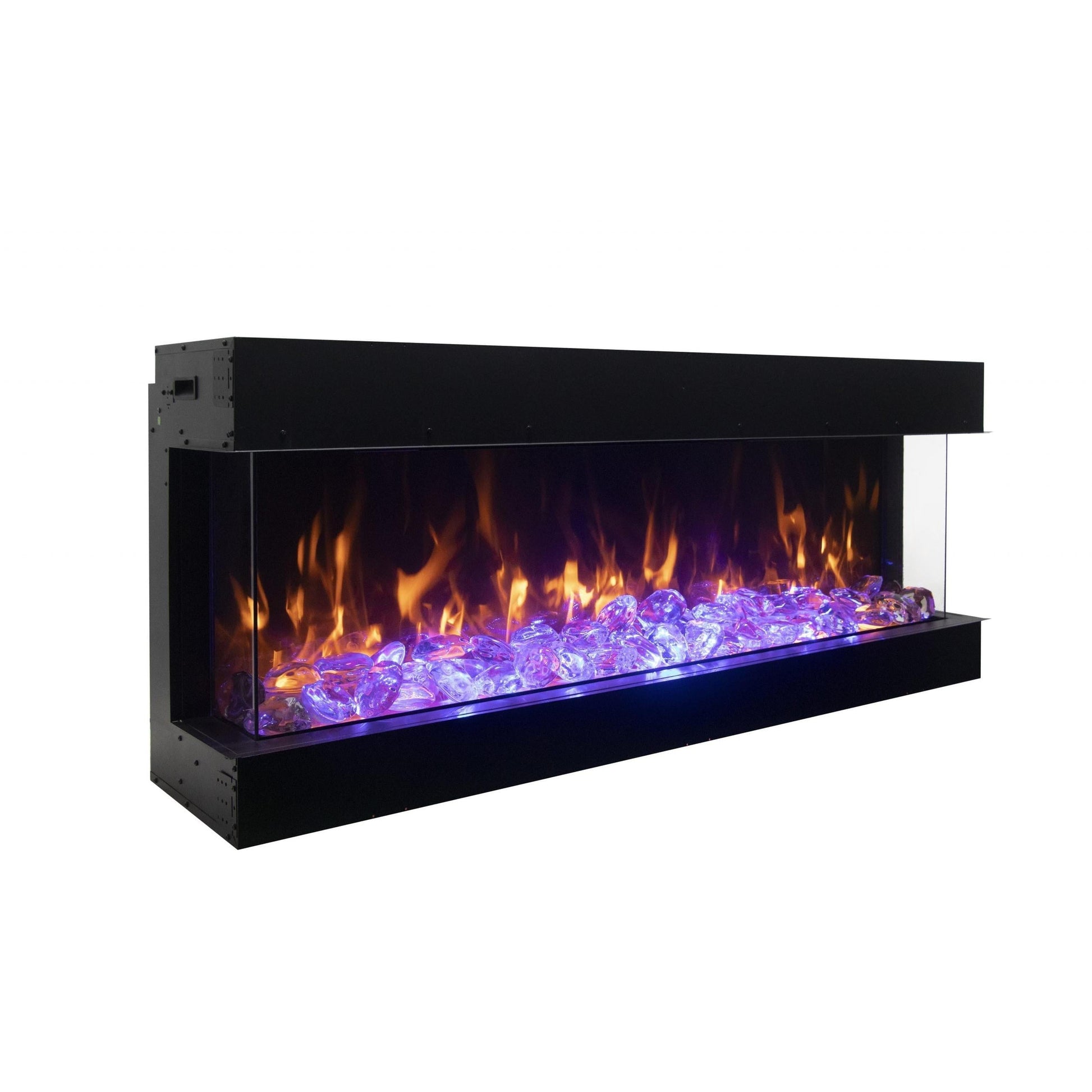

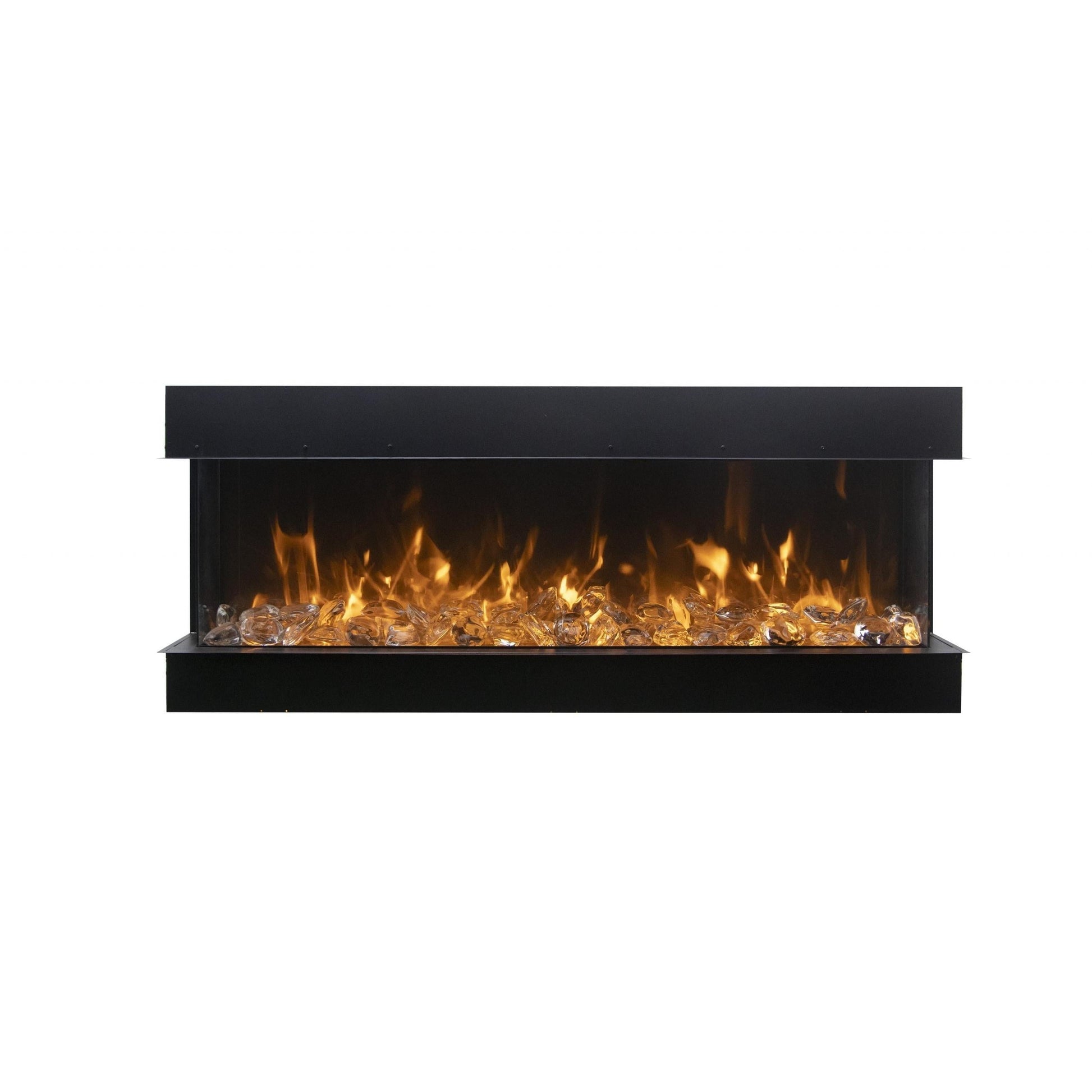

The 60-TRU-VIEW-XL-DEEP 3 sided electric fireplace is truly innovative! The gorgeous flame presentation and unique media options can now be viewed from almost any angle through 3 sides of glass viewing area.

Designed for finishing materials are to built flush to the lip for a clean face finish. Built-In only. No trim or surround included.

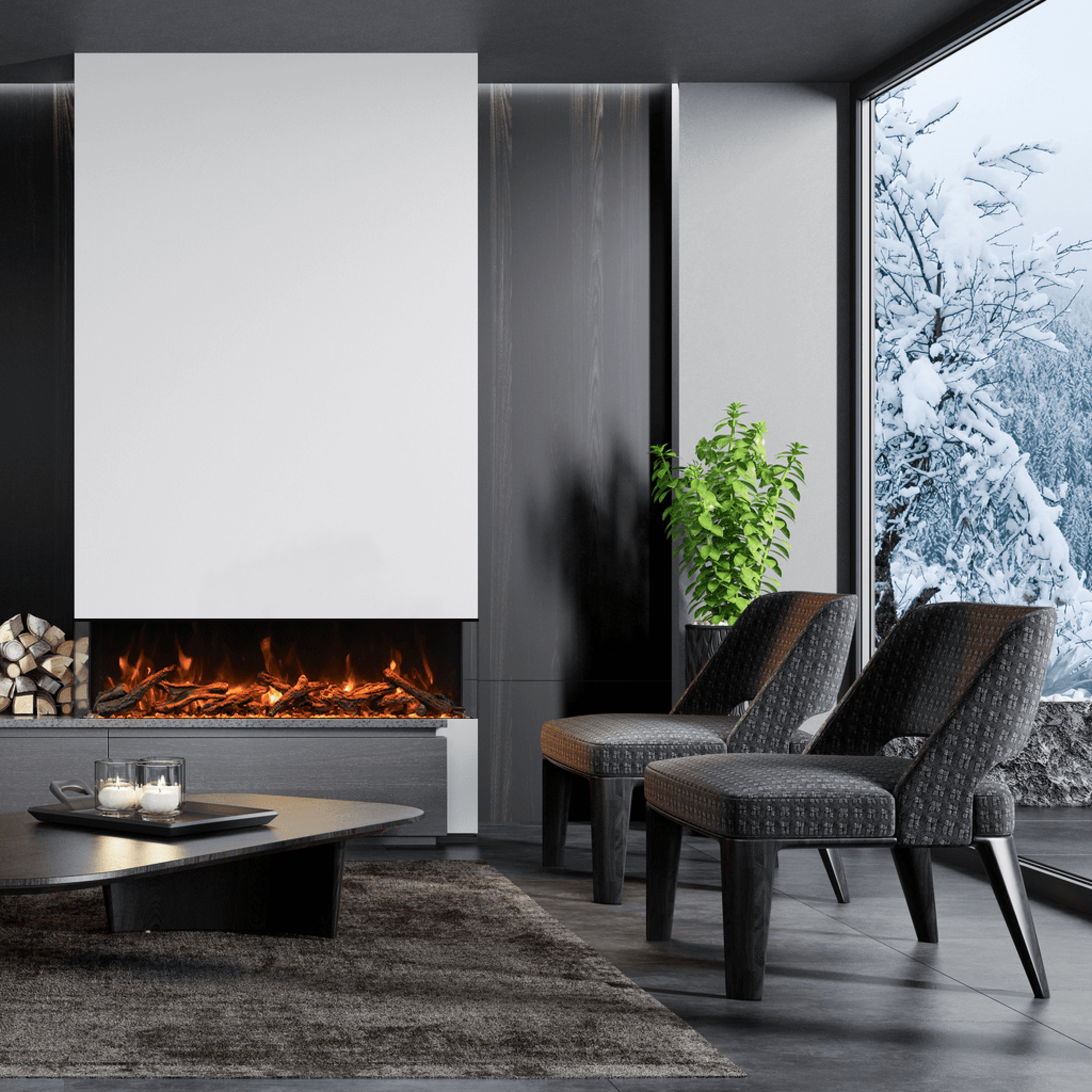

The Tru-ViewXL-DEEP series work beautifully as Corner Electric Fireplace.

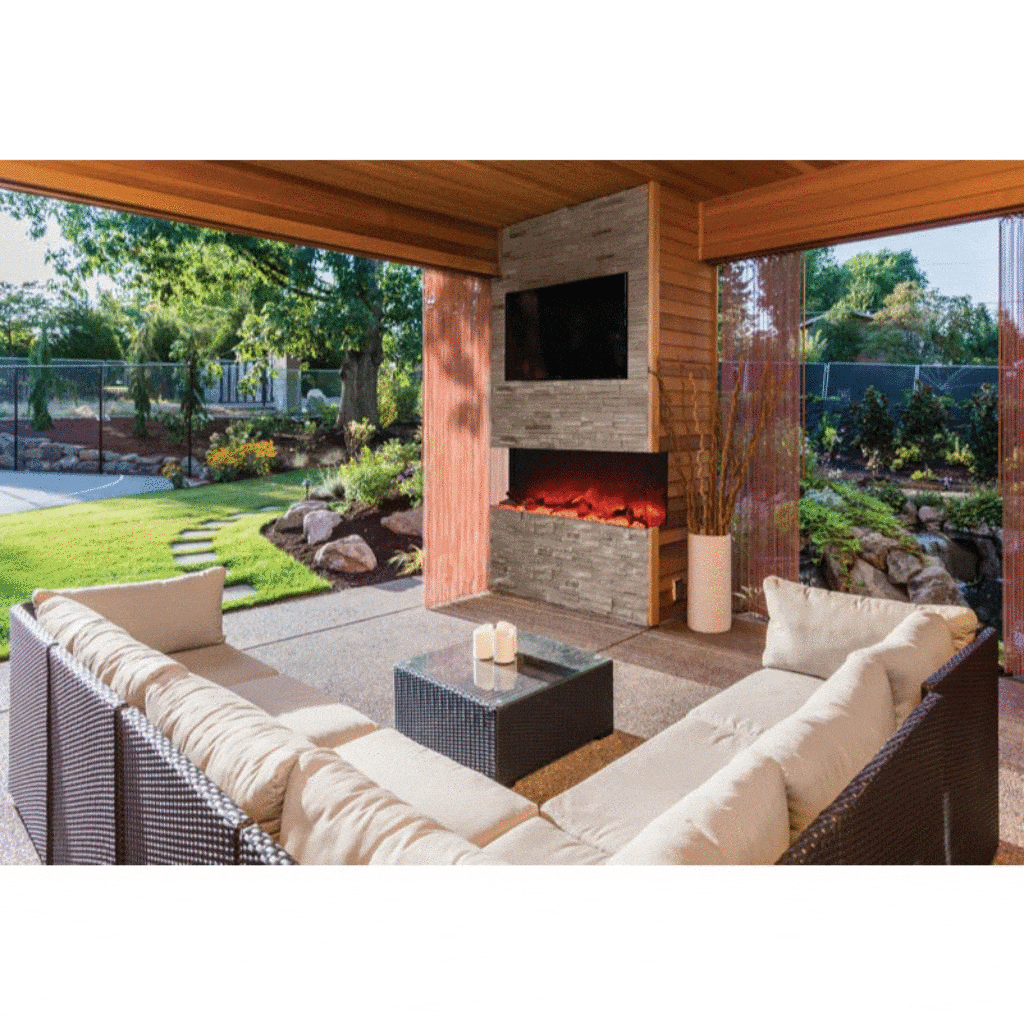

Perfect for any space, inside or out, including bathrooms.

Boasting a depth of 14 1/4”, the TRU-VIEW-XL-DEEP features two flame sets, ambient canopy lighting in 13 colors to illuminate the decorative media like never before and our exclusive FIRE & ICE® flame presentation that allows users to choose from blue, rose, violet, yellow or orange colored flames with just the click of the remote control.

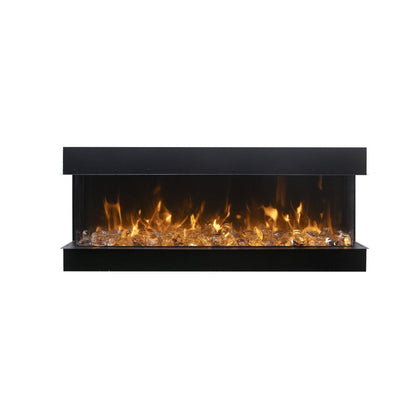

Customize the appearance of the 60-TRU-VIEW-XL-DEEP further by utilizing the included Designer Media Kit which includes: Drift 15 piece logset with deluxe media: black fire glass, pebbles, stones and vermiculite ashes. Further media options available for additional purchase.

4 Installation Options:

all 3 sides of glass visible

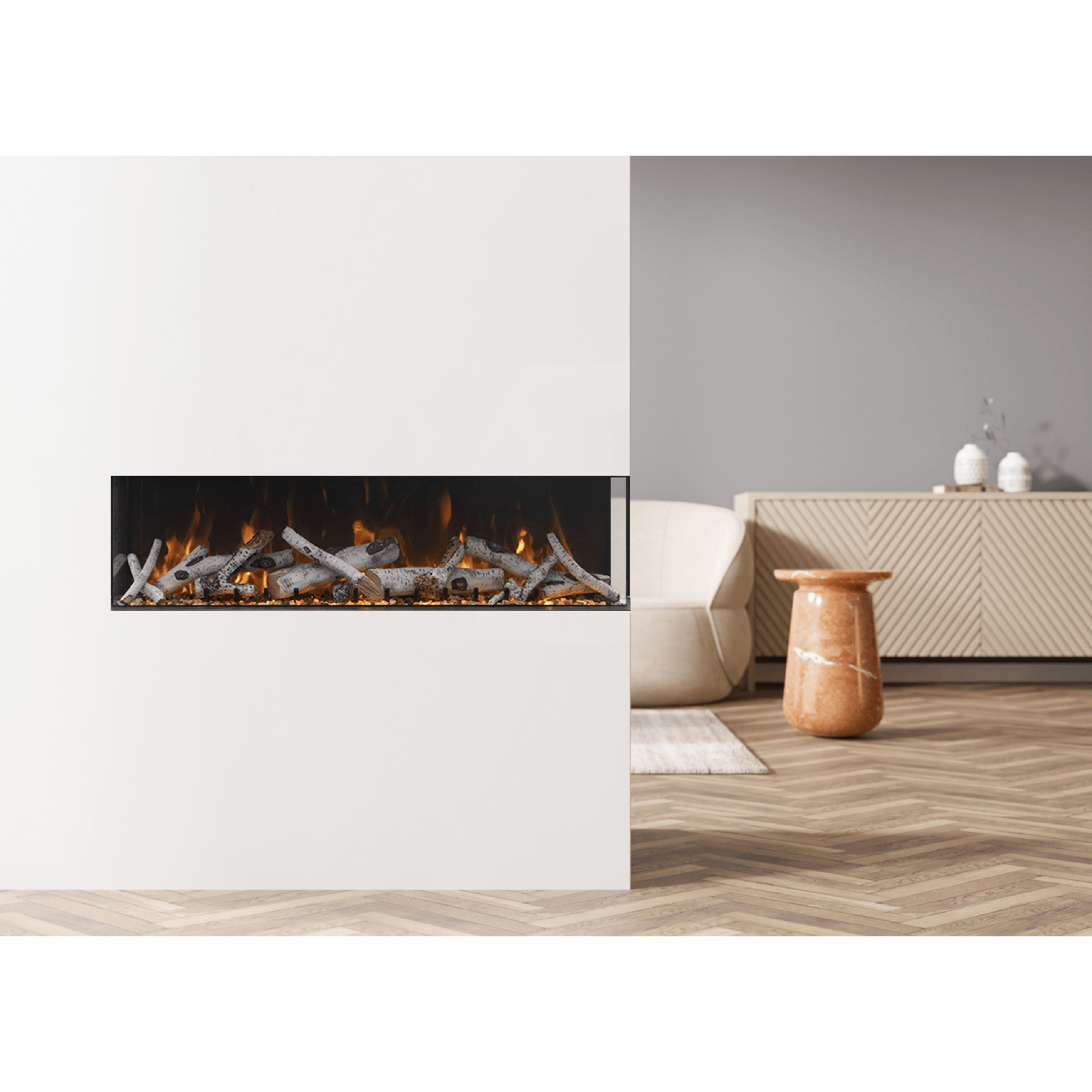

Left side visible
Right visible
front only for an extra deep (14 1/4″) fireplace

IDEAL APPLICATIONS

Residential spaces
Patios
Outdoor spaces
Commercial spaces
Restaurants
New construction or renovations

4 INSTALLATION CONFIGURATIONS

Both sides closed

3 sides open

Right side open

Left side open

This corner fireplace can open left or open right or can have 3 sides open.

TRU-VIEW-XL-DEEP fireplaces are rated for Indoor or Outdoor use. For outdoor applications please follow these instructions..

KEY FEATURES

	FIRE & ICE® Flame Presentation – Three light strips allow for yellow, orange, blue, violet & rose colored flames		Illuminate decorative media like never before with ambient canopy lighting in 13 colors
	Heater & Fan Flame operates with or without heat		14-1/4” deep comes with a Drift 15 piece logset with deluxe media: black fire glass, pebbles, stones and vermiculite ashes and the ICE media set.
	Thermostat hard-wire ready Electrical hard-wire ready		Perfect for zone heating approx. 400-500 sq ft. 4800 BTU
	Approved for Indoor and Outdoor Use

Available in 40", 50", 60" and 72" sizes.
Incredible 3 sided glass viewing area.
All models are rated for either indoor or outdoor use
State‐of‐the‐art FIRE & ICE ® flame set, with a click of the remote, change the flame from traditional colors such as yellow and orange to more contemporary colors like blue, purple, rose and violet.
Can produce up to 4800 BTU of heat, enough to heat up to 500 sq feet
2 Stage heater
Hard‐wire ready
Thermostat hard‐wire ready
Flame operates with or without heat
Remote control for flame and heater
2 flame sets
Ambient canopy lighting in 13 colors illuminates media like never before

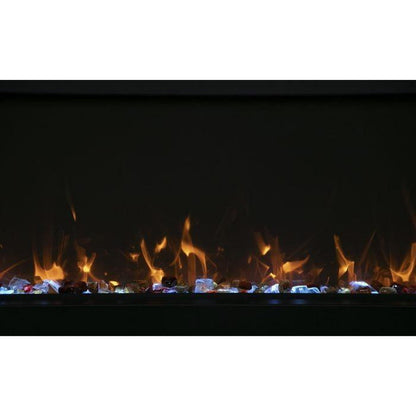

FIRE & ICE® flame presentation

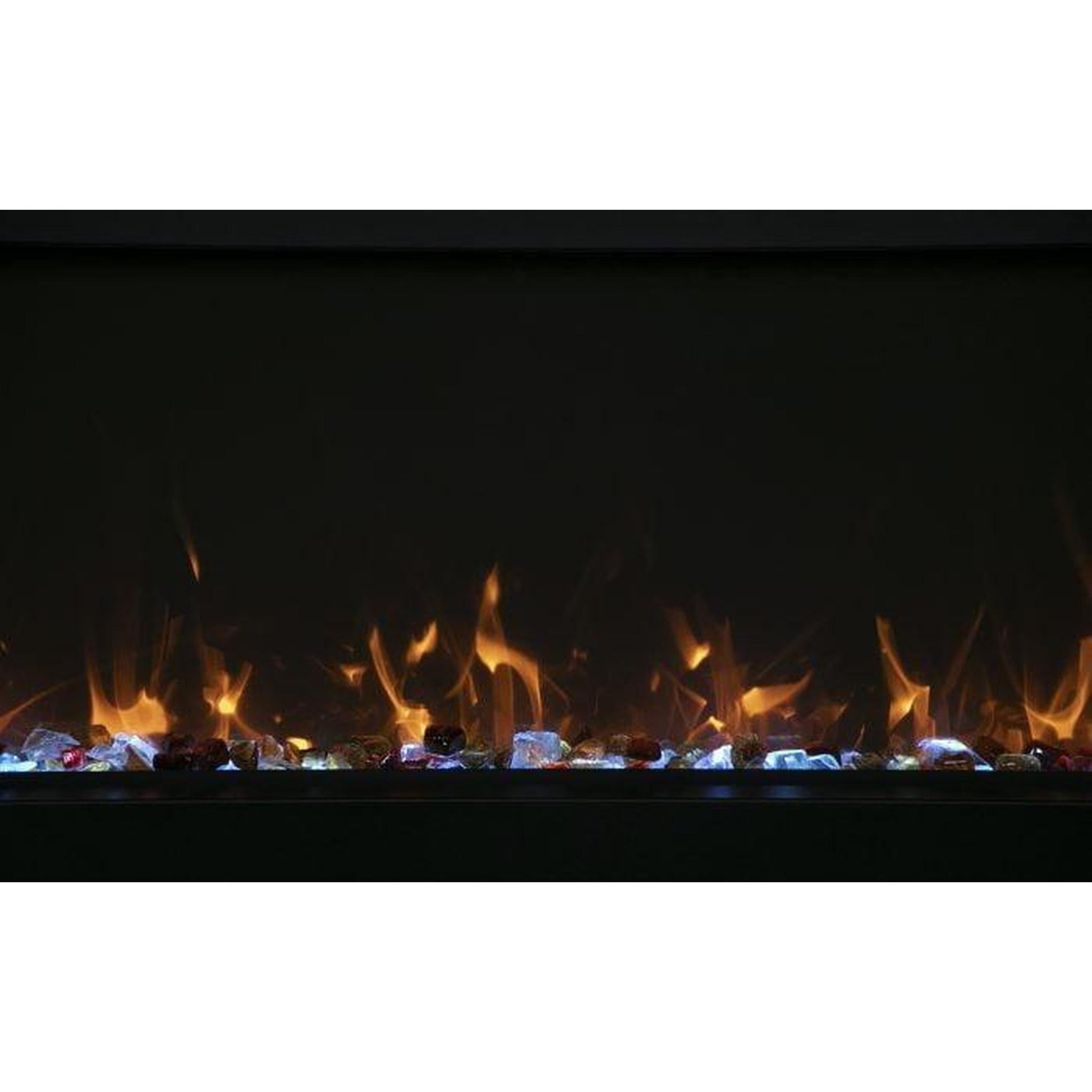

Vibrant multi-colored state-of-the-art FIRE & ICE® flame that is easily changed from blue to purple to rose to violet to orange or yellow with just a click of the remote. Three color strips generate more flame options that ever.

Ambient Canopy Lighting

Ambient canopy lighting illuminates media like never before. Cast a colorful glow over the supplied decorative media in the tray below. Cycle through a rainbow of 13 different colors. Blend flame colors with contrasting canopy lighting for a unique presentation – the combinations are limitless

SPECIFICATIONS

60-TRU-VIEW-XL-DEEP
Volts	120
Amps	12.5
Watts	1500 max
Heater	1500 watts high 750 watts low
No Heater	25 watts
Lamps	LED 22 watts
Rotor Motor	1 at 5 watts
Height, Width, Depth	26 5/8 x 63 1/4 x 14 1/4“
Glass View Opening	15 5/8 x 59 5/8”
Surround Size	N/A
Shipping Size	31 7/8” x 70 3/8” x 16 1/8”
Shipping Weight	161 lbs. Glass Included
Plug Location	Left Side
Cord Length	70 7/8”
Approx. Heating Area	400 sq. ft.

INCLUDED ACCESSORIES

The 60-Tru-View-XL-DEEP electric fireplace comes with a choice of a Design Media kit – Driftwood, Birch or Rustic, or ICE media kit and a Remote control for flame and heater.

*Remote control may not be exactly as shown

Included Media is your choice of:

OPTIONAL ACCESSORIES

Click to see Optional Decorative Media Options

Customize the look of your electric fireplace by purchasing from our selection of stylish decorative media.

	AMSF‐GLASS‐01 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Clear’
	AMSF‐GLASS‐02 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Light Brown’
	AMSF‐GLASS‐03 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Charcoal’
	AMSF‐GLASS‐04 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Champagne’
	AMSF‐GLASS‐05 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Dark Grey’
	AMSF‐GLASS‐06 – 1 Box includes approx. 5 lbs of 1″ Clear ‘Gem’ fireglass ‐ 1 sq. ft. of media coverage ‘clear’ Color: ‘Clear’
	AMSF‐GLASS‐07 – 1 Box includes approx. 5 lbs of white frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color: ‘White’
	AMSF‐GLASS‐08 – 1 Box includes approx. 5 lbs of dusty purple frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color: ‘Dusty Purple’
	AMSF‐GLASS‐09 – 1 Box includes approx. 5 lbs of amber small bead fireglass ‐ 1 sq. ft. of media coverage ‘amber’ Color: ‘Amber’
	AMSF‐GLASS‐10 – 1 Box includes approx. 5 lbs of small bead fireglass ‐ 1 sq. ft. of media coverage ‘orange’ Color: ‘Orange’
	AMSF‐GLASS‐11 – 1 Box includes approx. 5 lbs of small “suntea’ bead fireglass ‐ 1 sq. ft. of media coverage ‘suntea’ Color: ‘Suntea’
	AMSF‐GLASS‐12 – 1 Box includes approx. 5 lbs of small “black’ bead fireglass ‐ 1 sq. ft. of media coverage ‘black’ Color: ‘Black’
	AMSF‐GLASS‐13 – 1 Box includes approx. 5 lbs of small “sable’ bead fireglass ‐ 1 sq. ft. of media coverage ‘sable’ Color: ‘Sable’
	HZ-12-Ember – 3 Colors of decorative media, Clear, Suntea, Harvest Moon Amantii / Sierra Flame decorative fire glass media is a beautiful addition to your electric fireplace. Turn your fireplace into a expressive work of art by simply adding our decorative fire glass media. Our fire glass adds a distinctly modern feel to your electric fireplace – mix colors and textures for a unique appearance. 3 Colors: ‘Clear, Suntea, Harvest Moon’
	Fi-105-Diamond – Add an extra sparkle to your Amantii electric fireplace. The Amantii Deluxe Glass Diamonds Media Kit for Electric Fireplaces is everything you could want to add a shine to your hearth. Each kit contains one large glass nugget, two mini nuggets, along with diamond media,. Make your fireplace shine like a diamond. Color: Clear, Blue Box of 1 large clear glass nugget, 2 mini clear nuggets, 95 clear & 10 blue diamond media
	Fi-106-Diamond – Add an extra sparkle to your Amantii electric fireplace. The Amantii Large Glass Nugget Media Kit for Electric Fireplaces is everything you could want to add a shine to your hearth. Each kit contains three extra large glass nuggets Color: Clear Box of 3 extra large clear glass nuggets
	Fi-107-Diamond – Add an extra sparkle to your Amantii electric fireplace. The Amantii Miniature Glass Nugget Media Kit for Electric Fireplaces is everything you could want to add a shine to your hearth. Each kit contains six miniature glass nuggets. Color: Clear Box of 6 mini clear glass nuggets
	Fi-109-Diamond – Add an extra sparkle to your Amantii electric fireplace. The Amantii Deluxe Ice Glass Media Kit for Electric Fireplaces is everything you could want to add a shine to your hearth. Each kit contains three large glass nuggets and mixed diamond media. Color: Clear, Blue Box of 3 large clear nuggets, 95 clear & 10 blue diamond media

Click to see Optional Designer Media Kits

	DESIGN‐MEDIA‐6PCE 6 piece log set with black fire glass, 90 piece pebble, rocks, Embers 1, Embers 2, Embers 3 and Embers 4 Use With: Newcomb Palisade Emerson

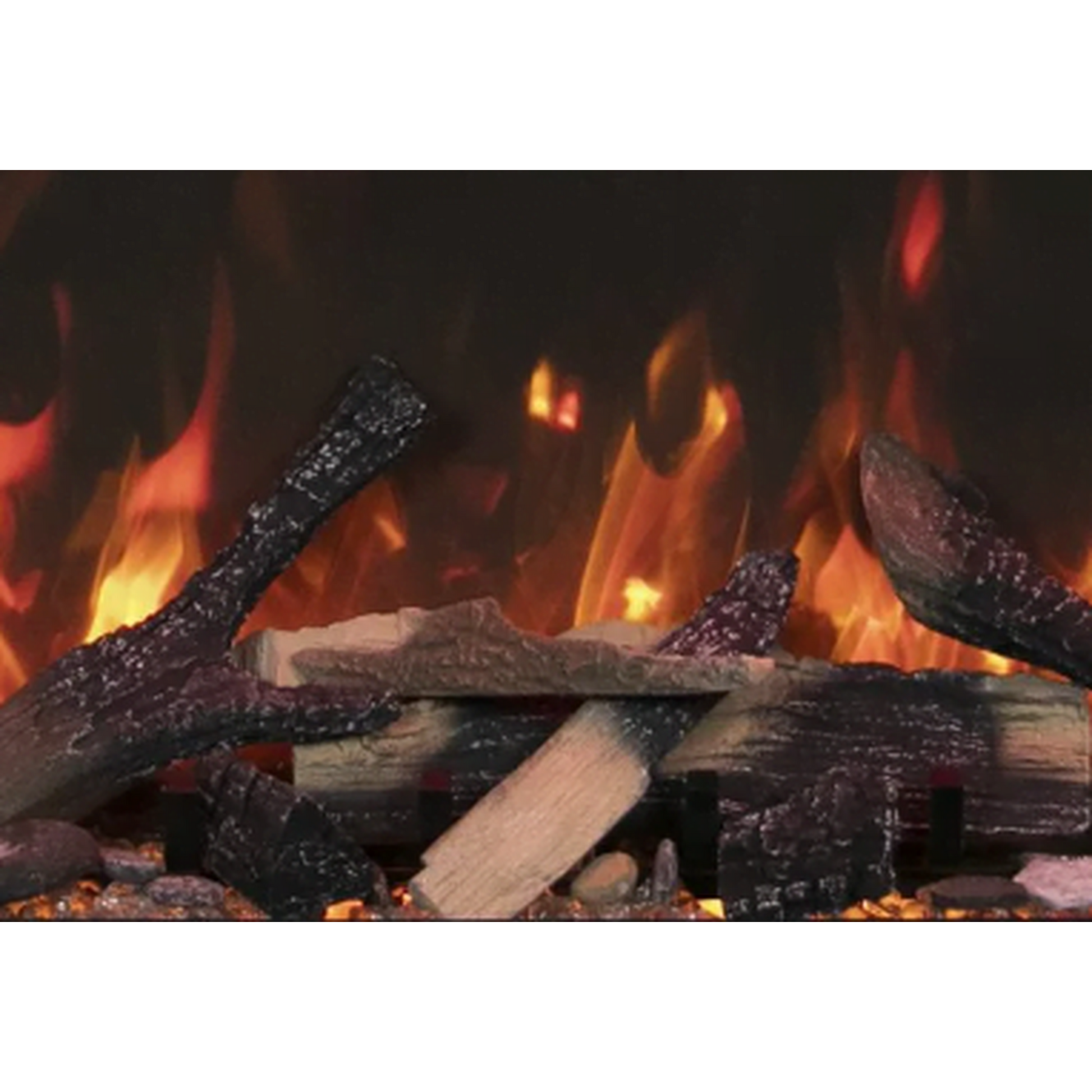

	DESIGN-MEDIA-14PCE RUSTIC‐14 Piece Log set with deluxe media: stones, pebbles, black fire glass and embers. Use With: Bennett Stanford Austin Tahoe TRV-XL Deep Series TRV-XT-XL Series Panorama Deep XT Series Symmetry XT Series

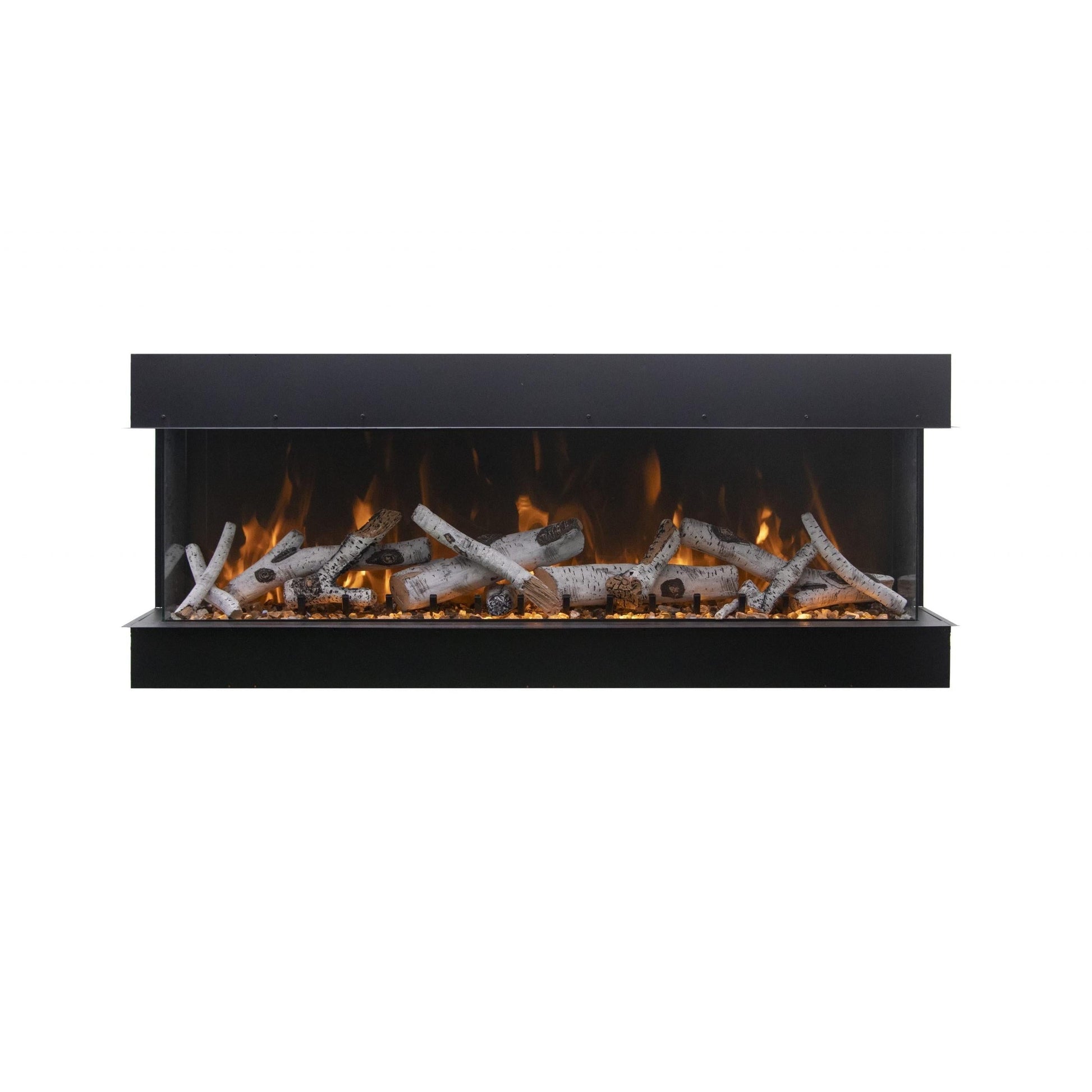

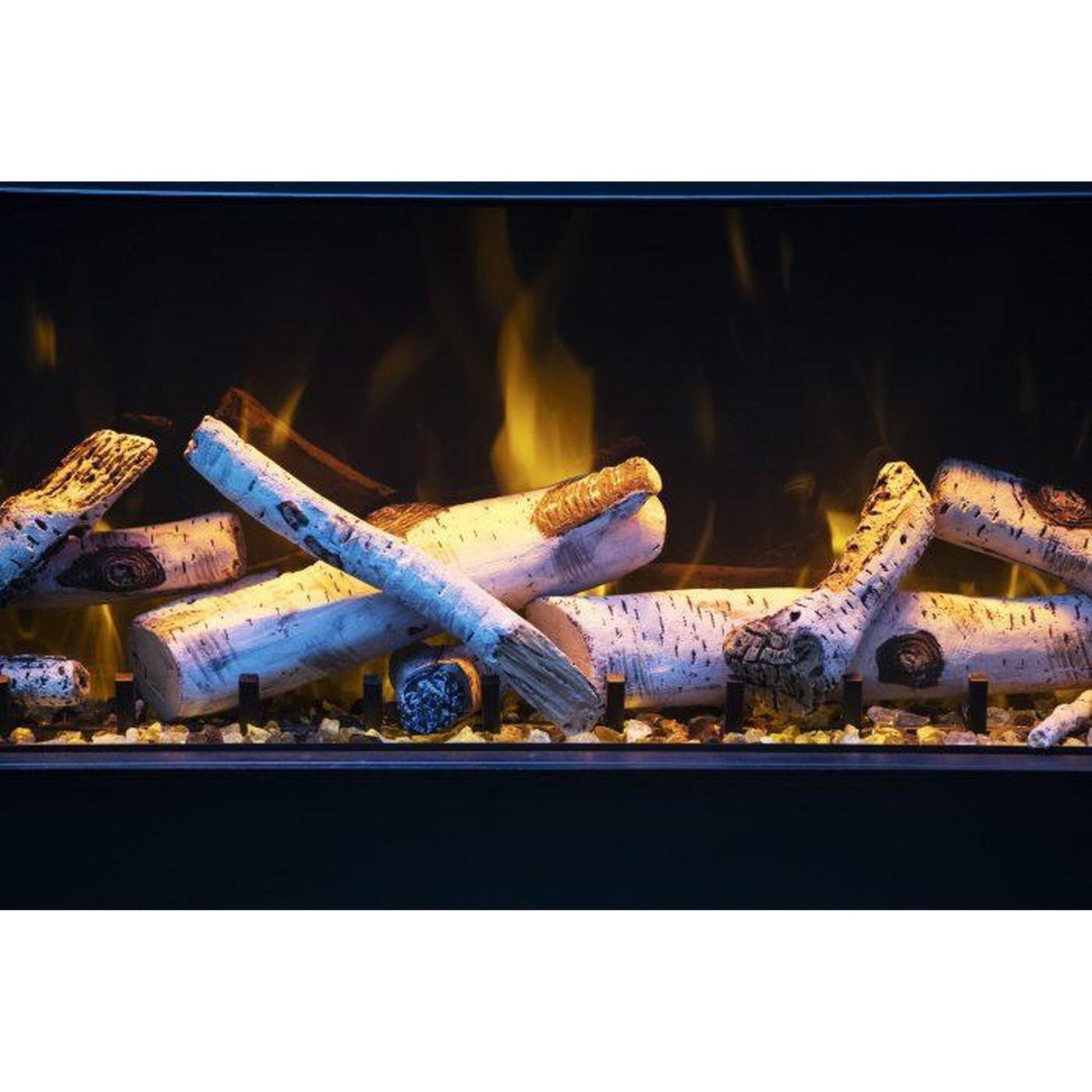

	DESIGN‐MEDIA‐BIRCH‐15PCE BIRCH‐15 Piece Log set with deluxe media: stones, pebbles, black fire glass, and embers. *Not approved for Sierra Gas Units. Can be used with Amantii: TRV-XL Deep Series TRV-XT-XL Series Panorama Deep XT Series Symmetry XT Series

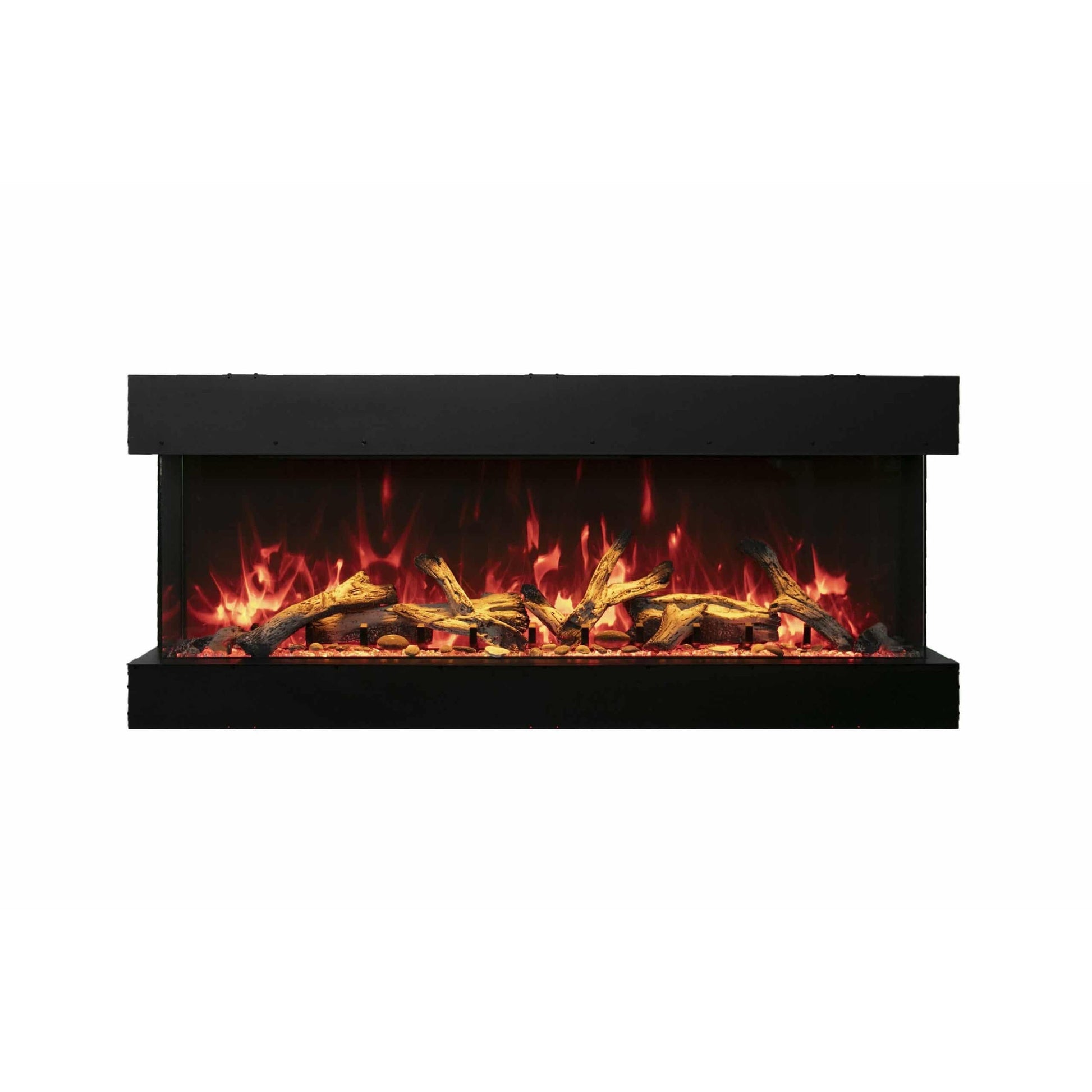

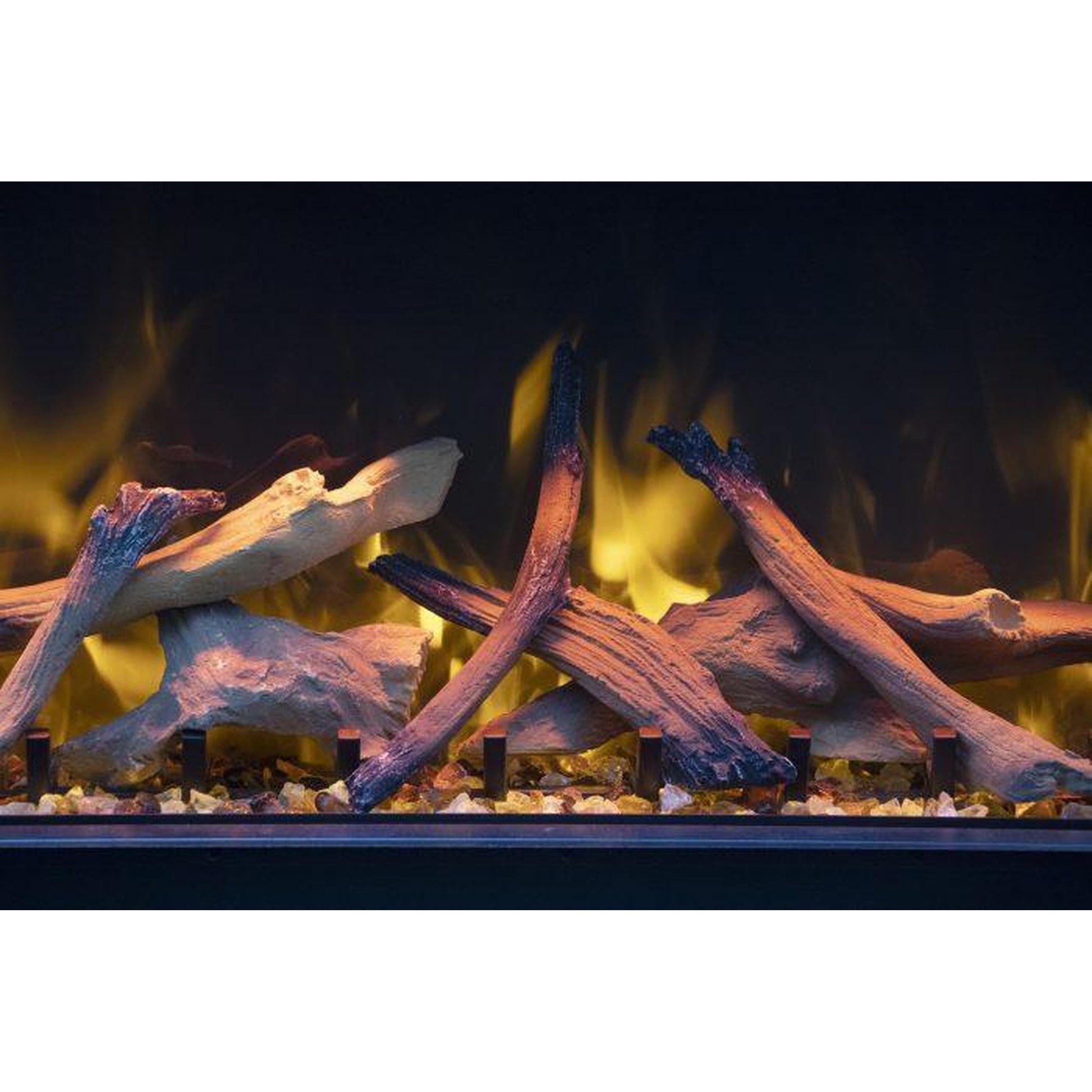

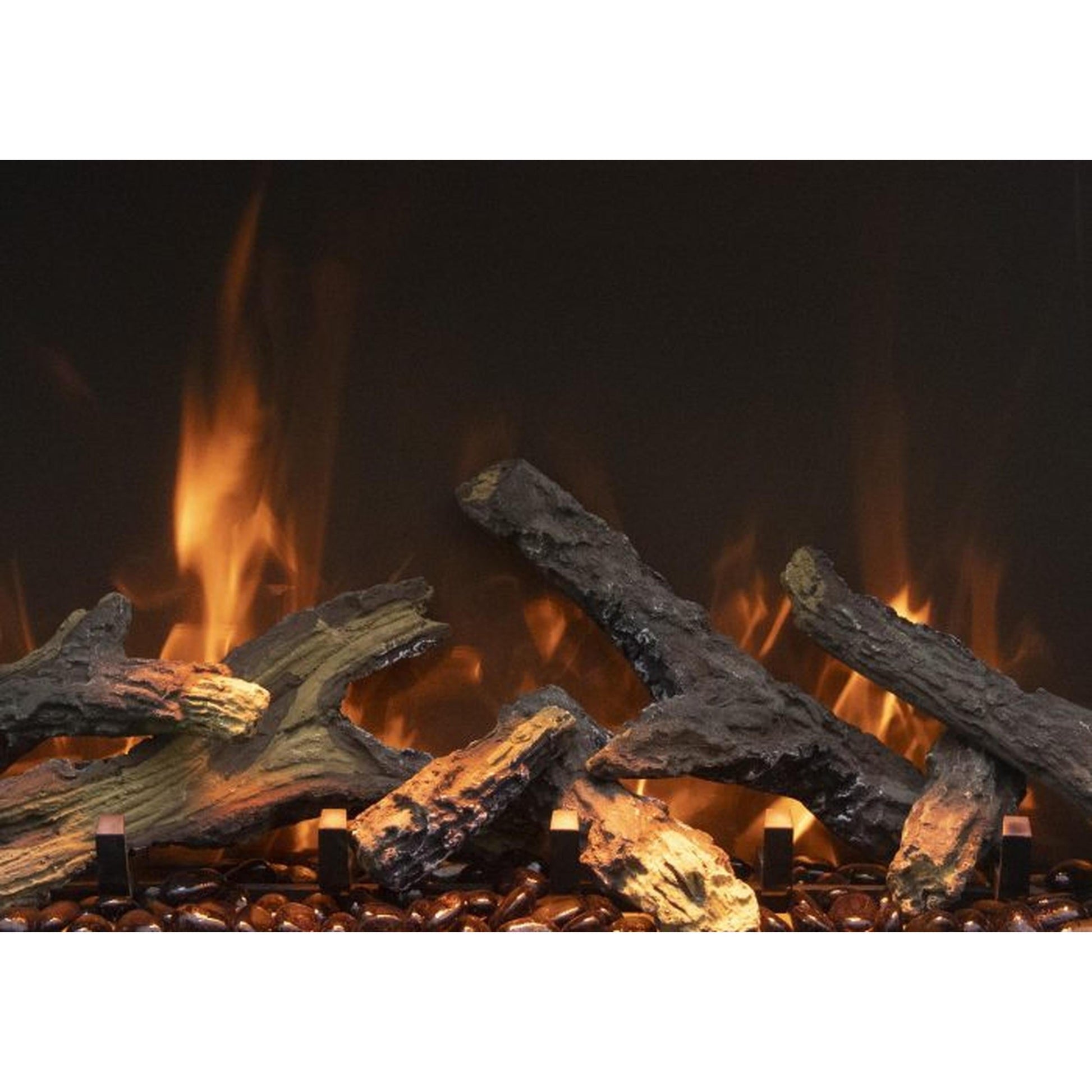

	DESIGN‐MEDIA‐DRIFT‐15PCE DRIFT‐15 Piece Log set with deluxe media: stones, pebbles, black fire glass, and embers. Use With: Tahoe TRV-XL Deep Series TRV-XT-XL Series Panorama Deep XT Series Symmetry XT Series

WARRANTY

Amantii Imports Corp. (Amantii) warrants that newly purchased Amantii electric fireplaces are free from manufacturing and material defects for a period of two (2) years from the date of first purchase. Must follow outdoor installation guide when installing outdoors.

Refer to product manual for full warranty details.
