SKU:88-TRV-XT-XL + DESIGN-MEDIA-RUSTIC-14PCE

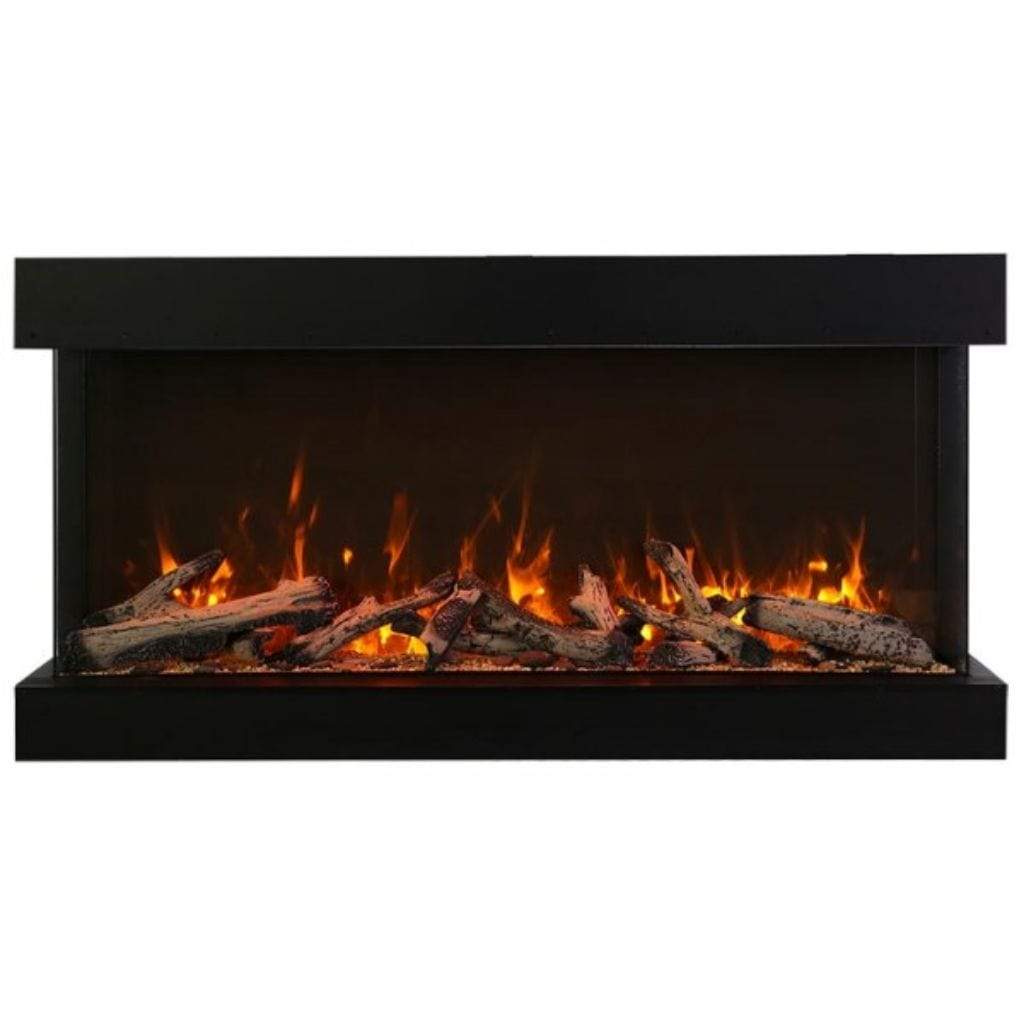

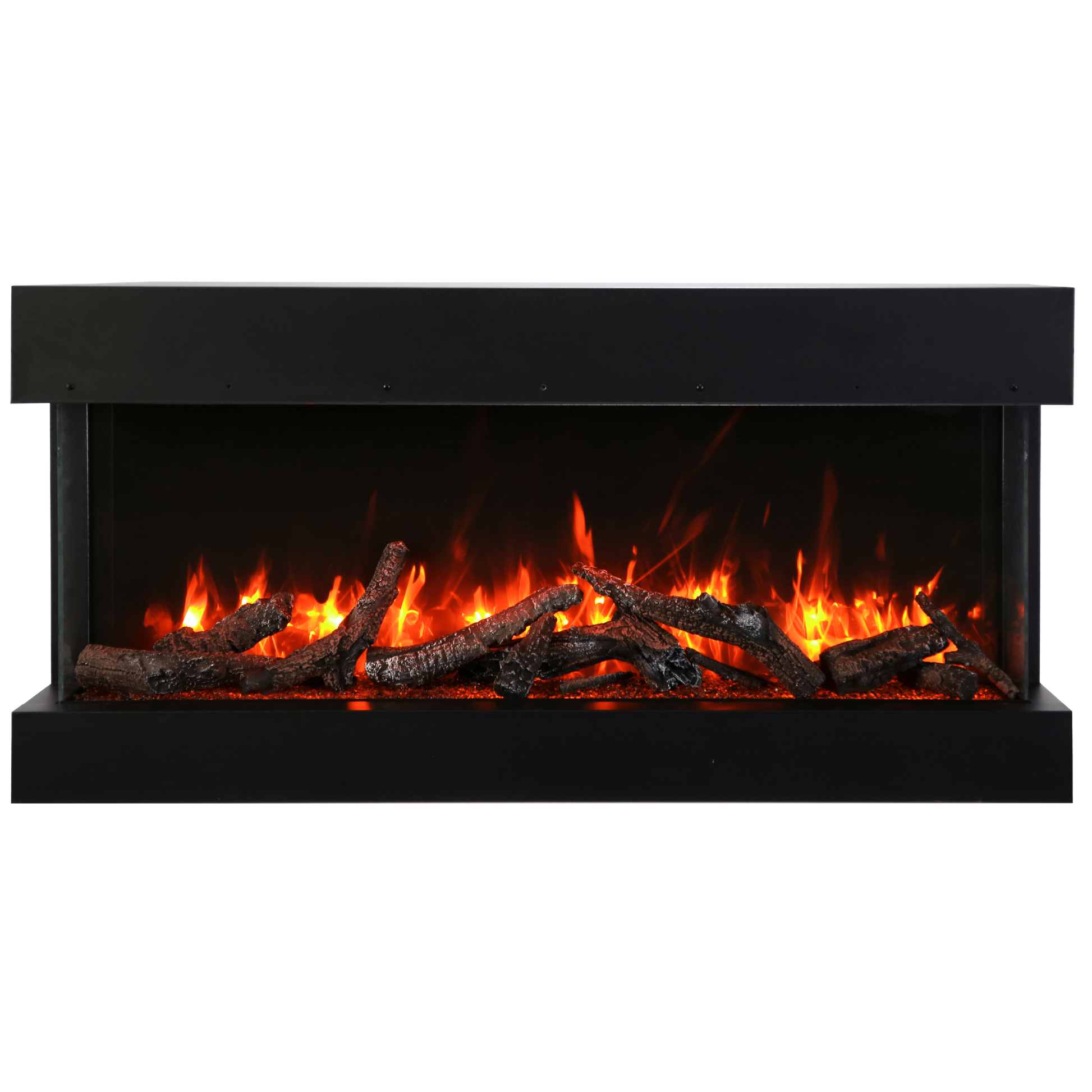

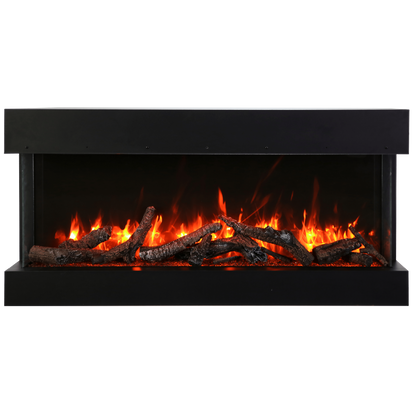

Amantii 88" Tru-View XL XT Three Sided Electric Fireplace
Amantii 88" Tru-View XL XT Three Sided Electric Fireplace
Optional Designer Media Kits
Optional Decorative Fireglass Media Accessory
- Free Shipping on Orders Over $300
- Same-Day Order Processing
REACHING NEW HEIGHTS
For a sophisticated and contemporary way to introduce flame into your living space Amantii's Tru-View XT-XL are a perfect fit. The XT-XL series comes with a beautiful selection of logs, embers and glass media kit to create a beautiful illusion of flame. It’s your choice of media kits.
The spectacular Amantii 88-TRU-VIEW-XL XT indoor or outdoor electric fireplace features an Extra Tall viewing area that is 22” in height! That is 6” taller than our other Tru-View models. It has a deep media tray and comes standard with an incredible 15 piece log set, ICE media, pebbles, stones, black glass and vermiculite embers allowing consumers to completely customize the look of their fireplace.
The 88-TRU-VIEW-XL XT electric fireplace boasts the Amantii FIRE & ICE® Flame presentation with three color LED light strips allowing for multi-color flame options. With just a click of the included remote control, choose from blue, rose, violet, yellow or orange colored flames.

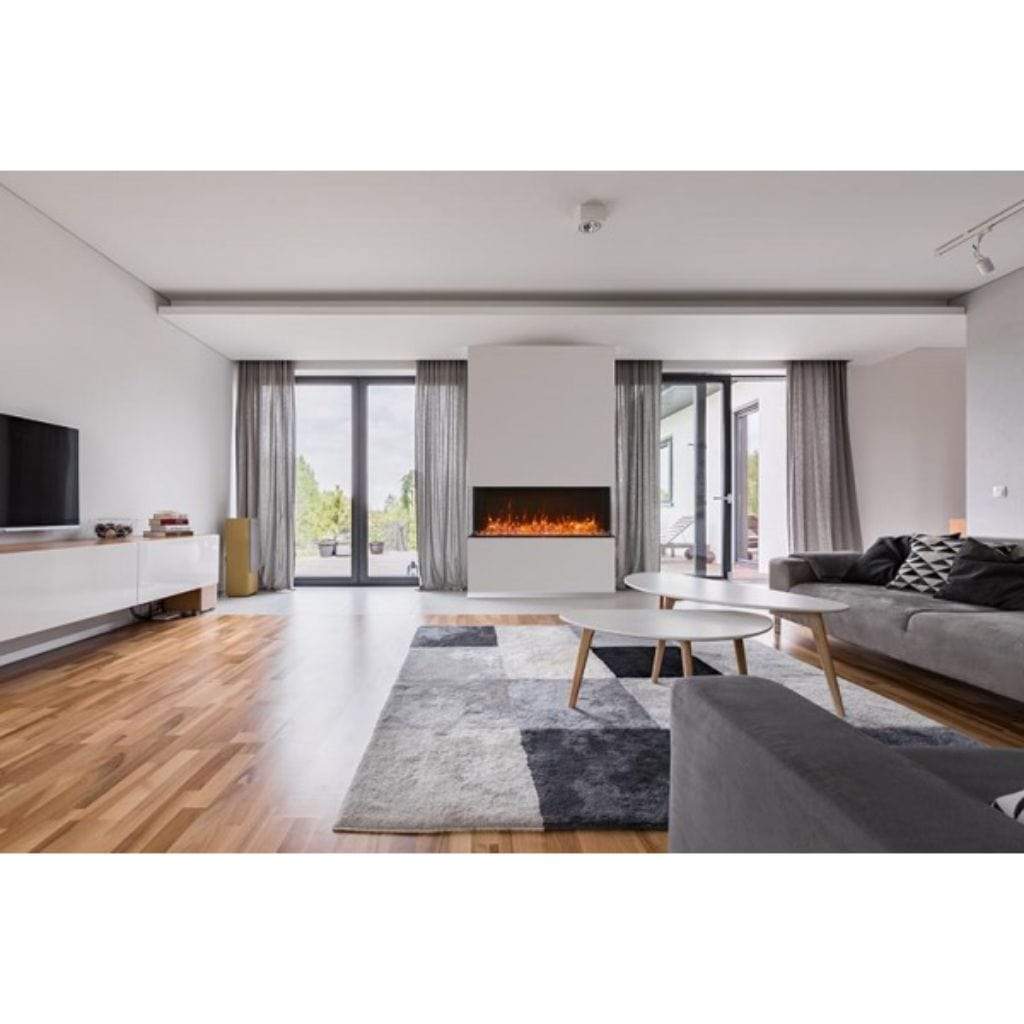

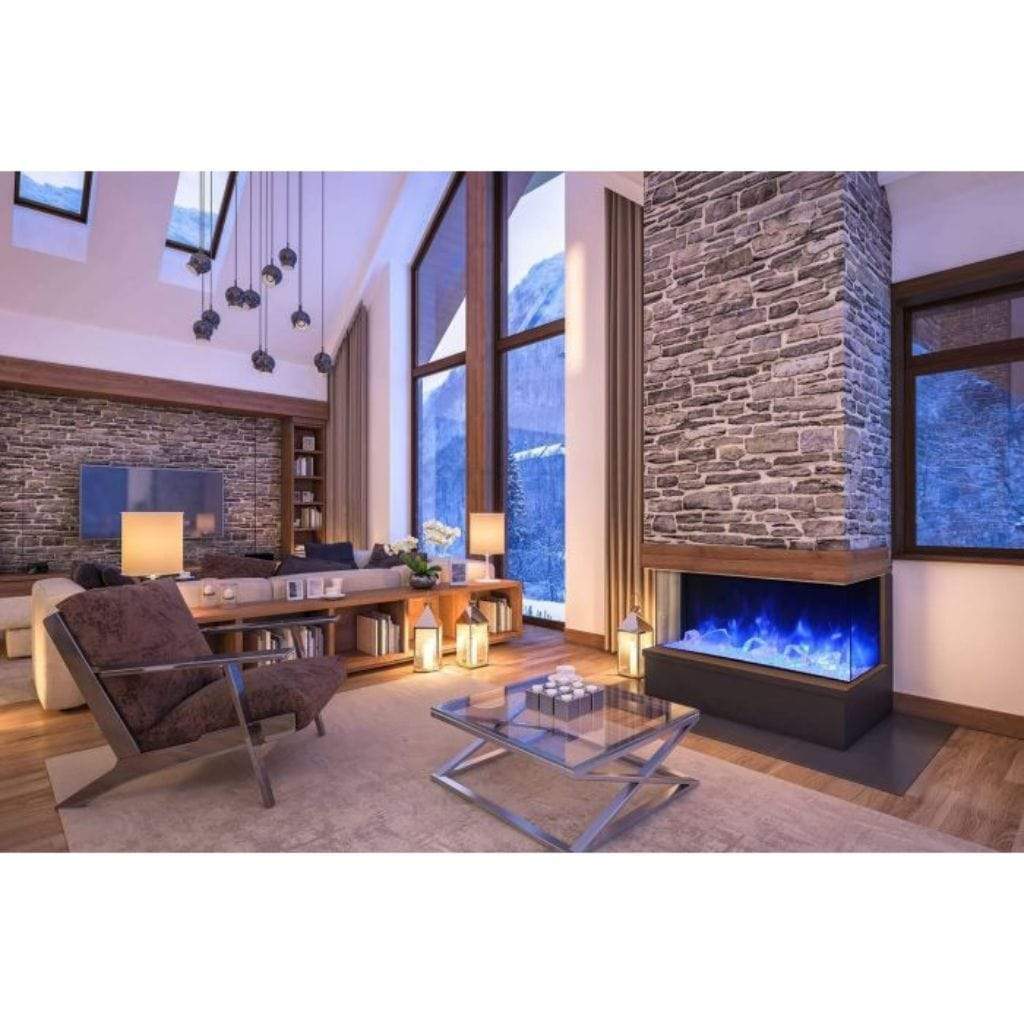

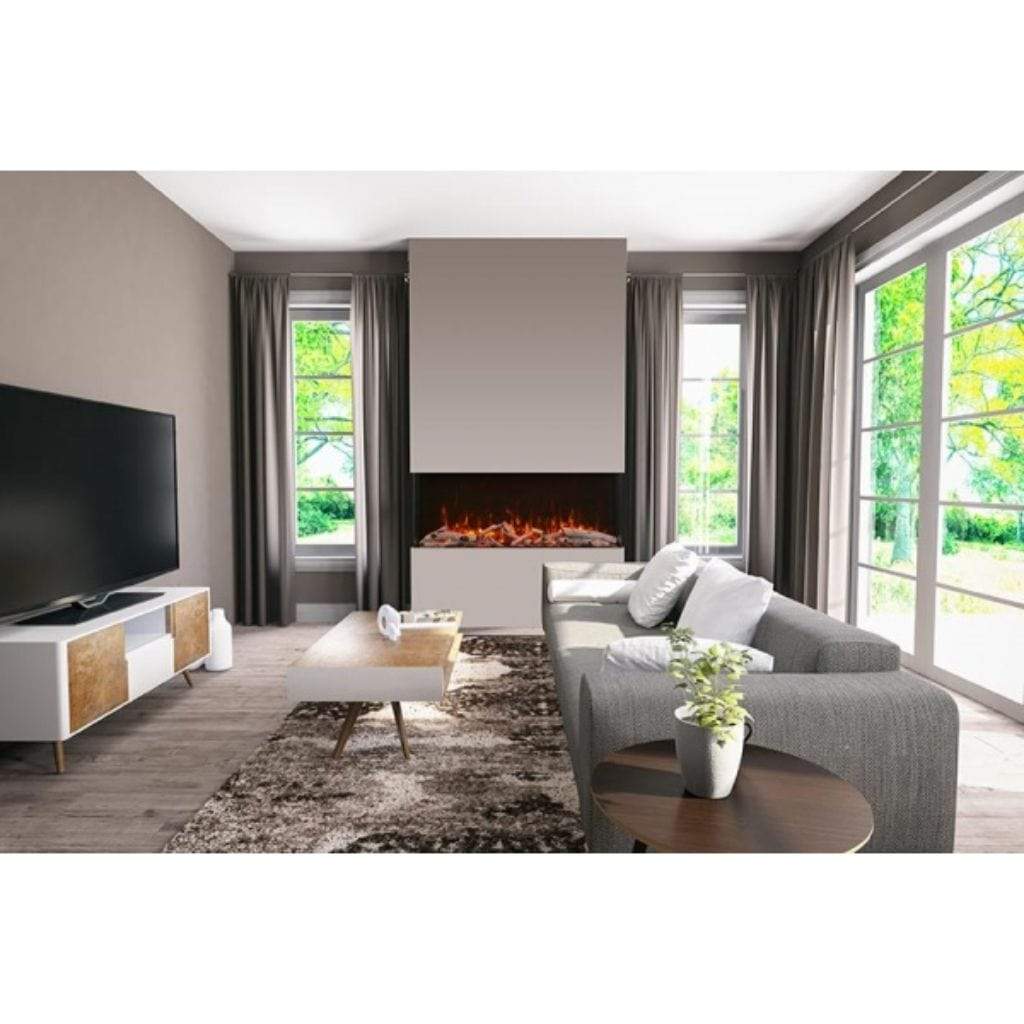

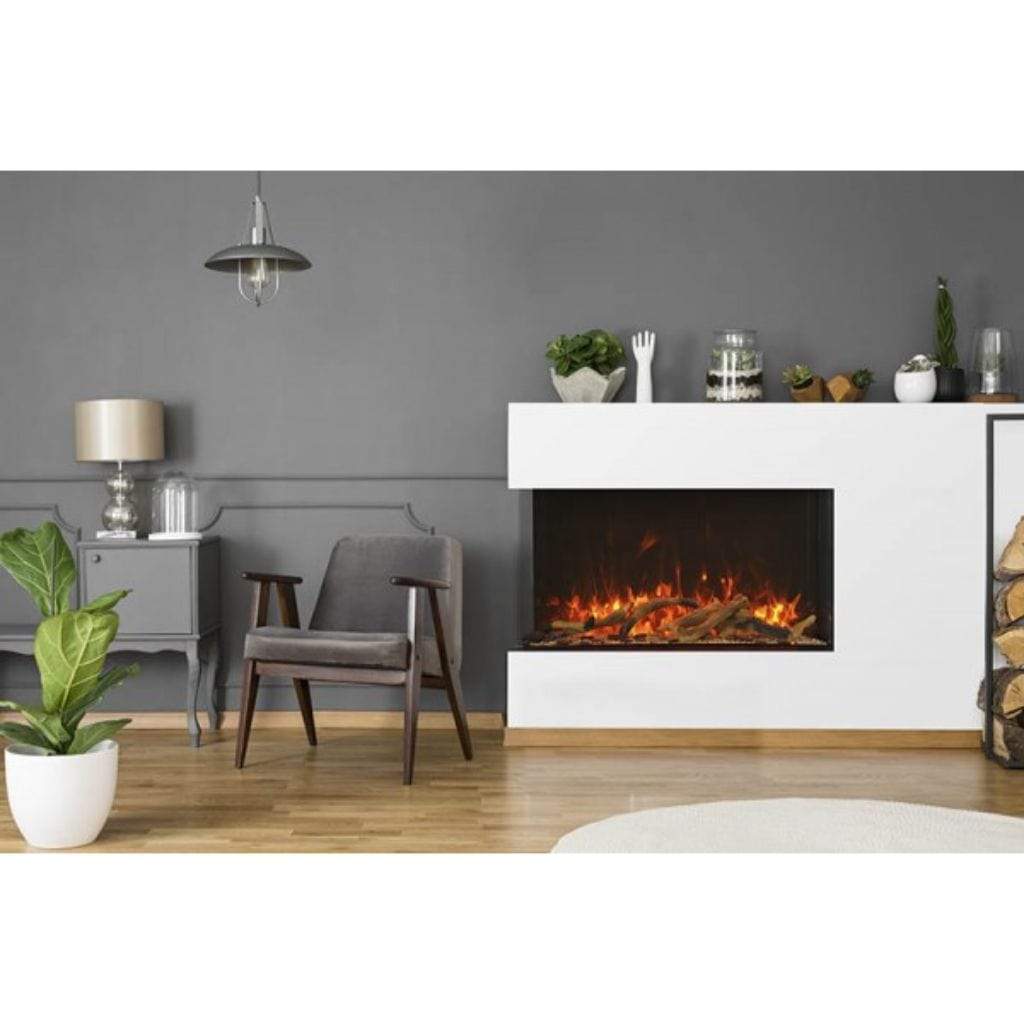

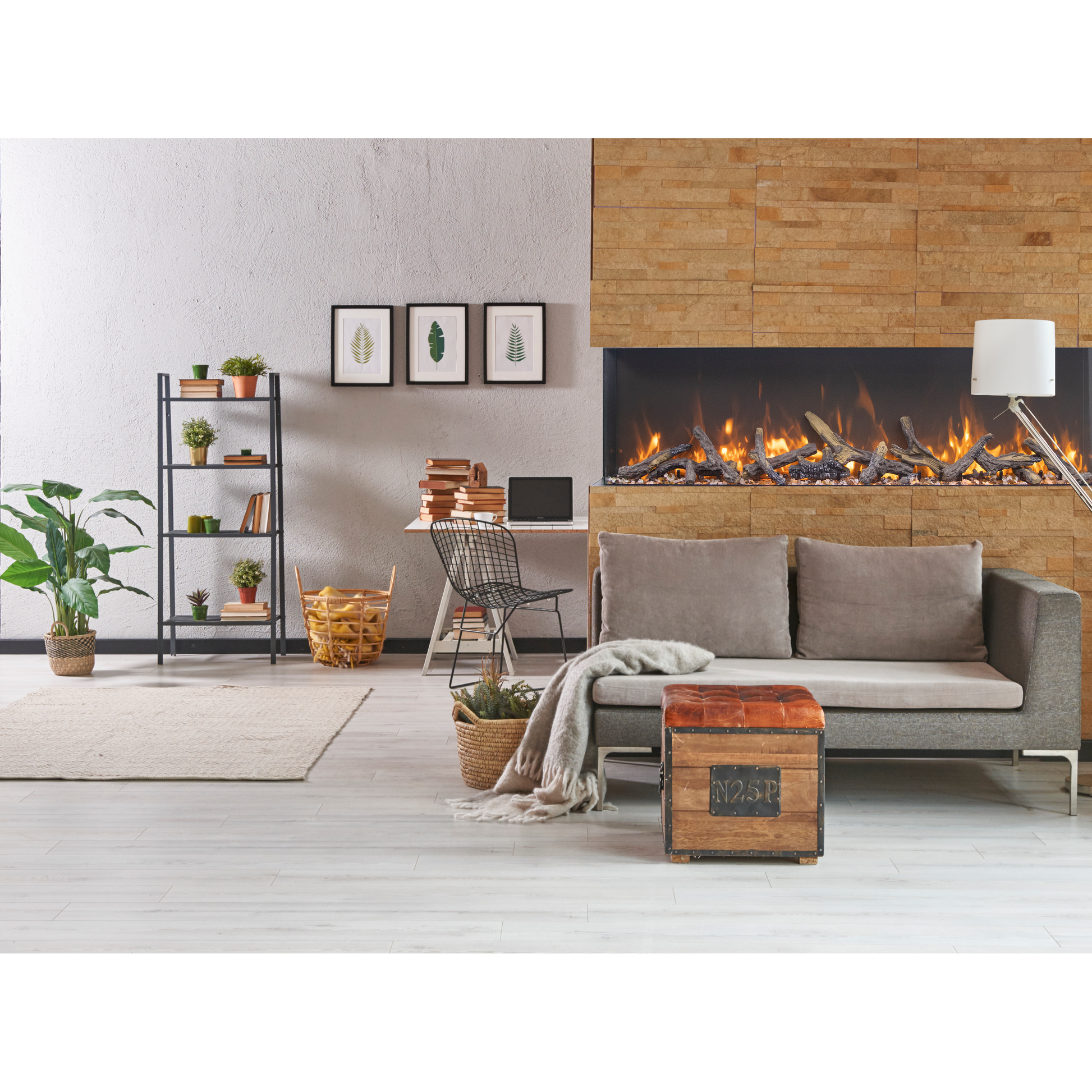

Corner Fireplace: The Tru-View-XL-XT series work beautifully as Corner Electric Fireplace.
The 88-TRU-VIEW-XL XT comes standard with a 15 piece log set, ICE media, pebbles, stones, black glass and vermiculite embers.

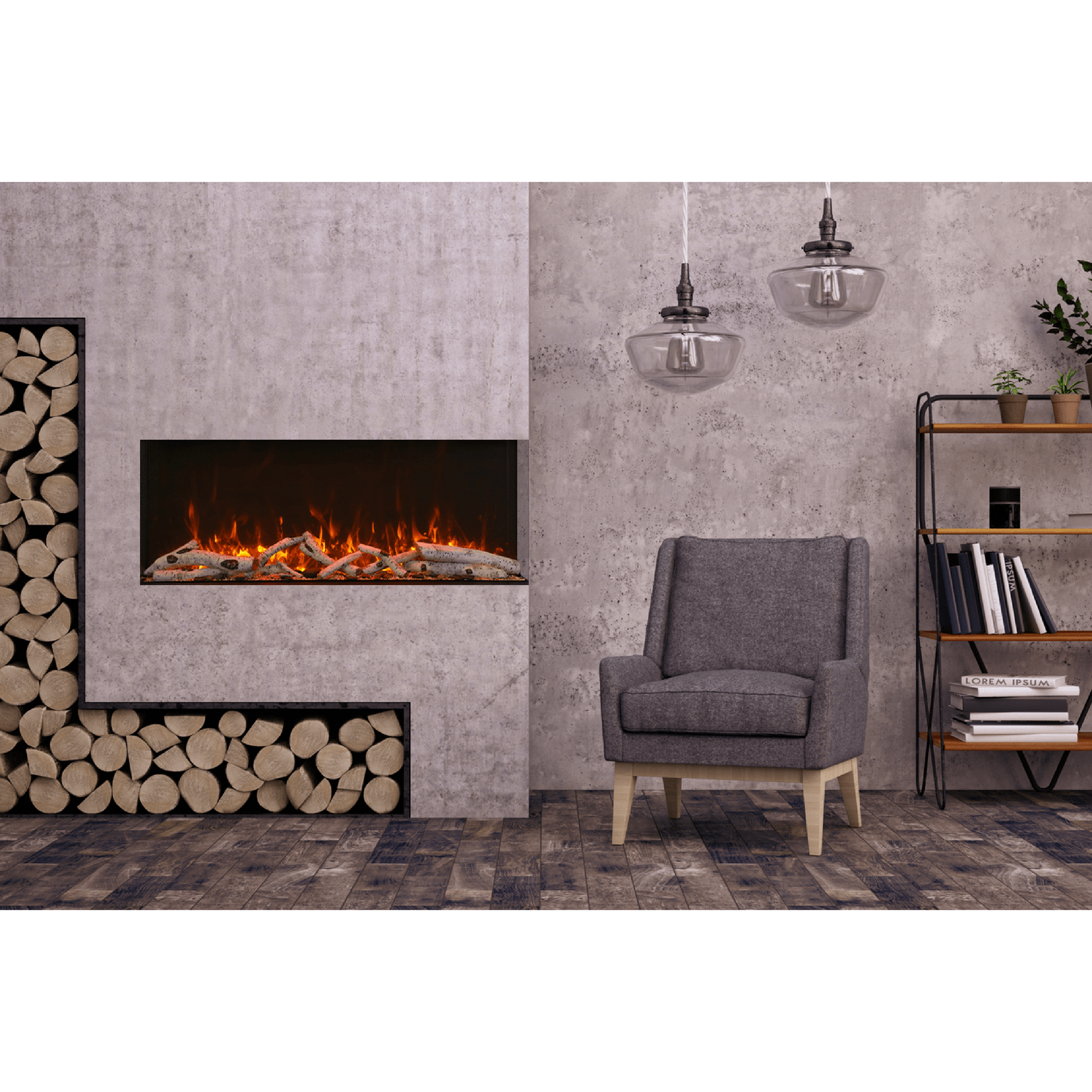

Designed for finishing materials are to be built flush to the lip for a clean face finish. Built-In only. No trim or surround included.
4 Installation Options:
- all 3 sides of glass visible
- Left side visible
- Right visible
- front only for an extra deep (14 1/4″) fireplace
IDEAL APPLICATIONS
- Residential spaces
- Patios
- Outdoor spaces
- Commercial spaces
- Restaurants
- New construction or renovations
4 INSTALLATION CONFIGURATIONS
Both sides closed |

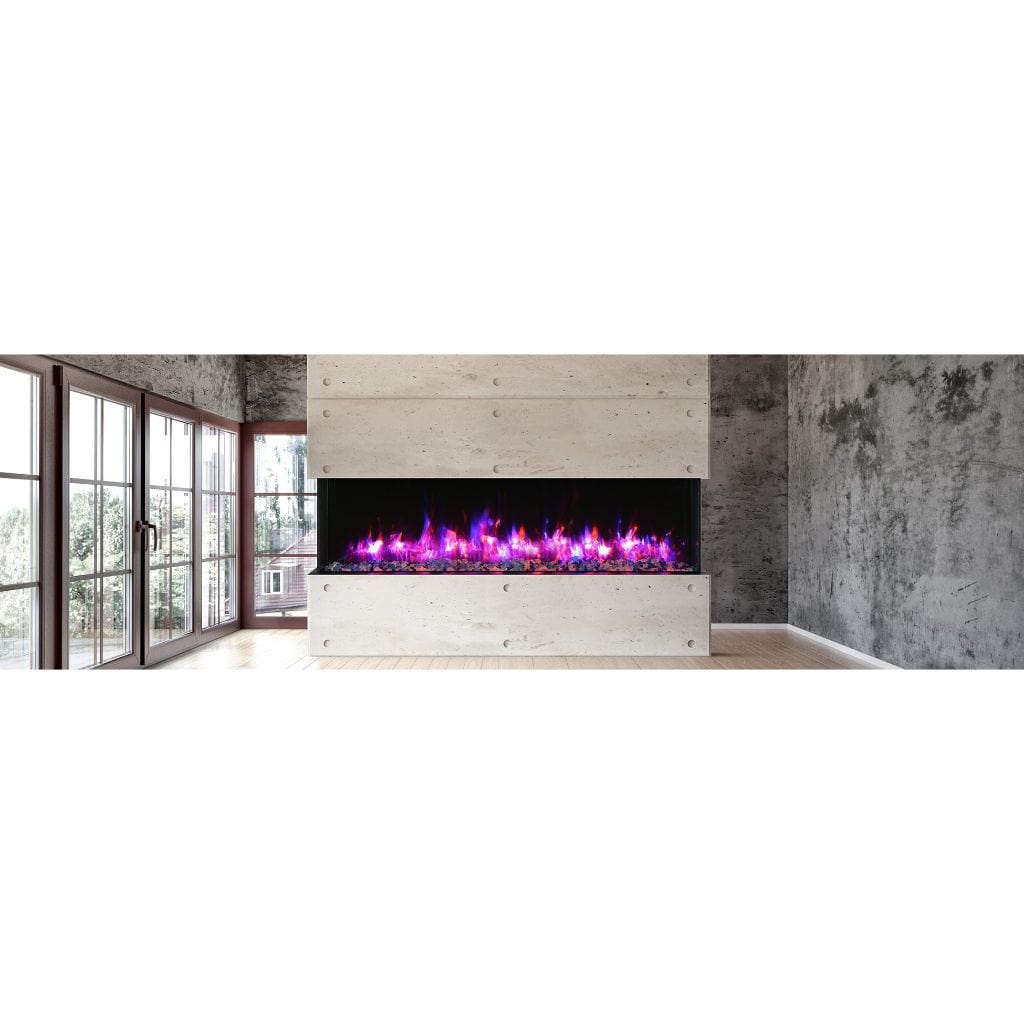

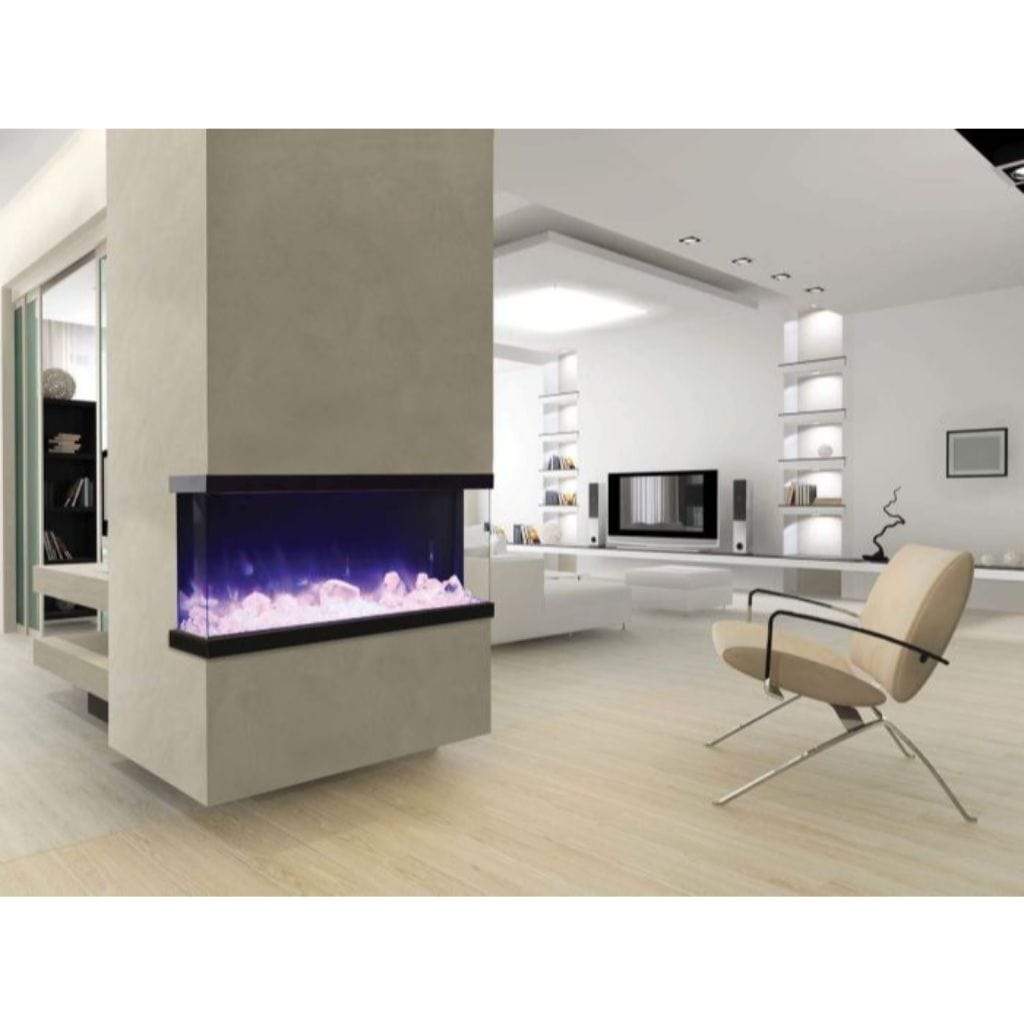

3 sides open |
Right side open |
Left side open |
This corner fireplace can open left or open right or can have 3 sides open.

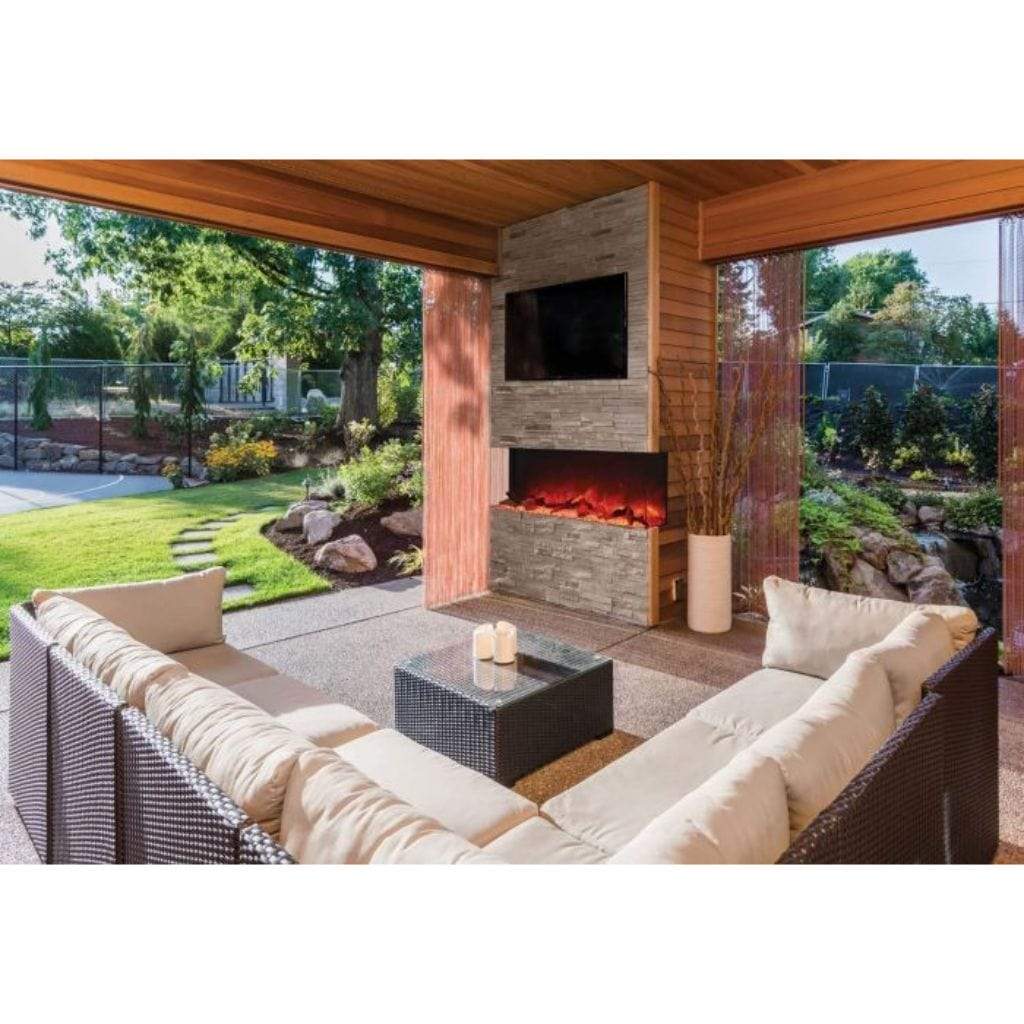

TRU-VIEW-XL-XT fireplaces are rated for Indoor or Outdoor use. For outdoor applications please follow these instructions.
KEY FEATURES
Glass viewing area is 22” in height | Illuminate decorative media like never before with ambient canopy lighting in 13 colors | ||
Rated for either indoor or outdoor use | Comes with a Designer Media Kit which includes a 15 piece log set, ICE media, pebbles, stones, black glass and vermiculite embers. | ||
Thermostat hard-wire ready Electrical hard-wire ready |
Perfect for zone heating approx. 400-500 sq ft. 4800 BTU |
||
FIRE & ICE® Flame Presentation – Three light strips allow for yellow, orange, blue, violet & rose colored flames | Heater & Fan Flame operates with or without heat |
- Available in 40", 50", 60", 72" and 88" sizes.
- All models are rated for either indoor or outdoor use
- State-of-the-art FIRE & ICE ® flame set, with a click of the remote, change the flame from traditional colors such as yellow and orange to more contemporary colors like blue, purple, rose and violet.
- 2 Stage heater
- Hard-wire ready
- Thermostat hard-wire ready
- Can produce up to 4800 BTU of heat, enough to heat up to 500 sq feet
- Flame operates with or without heat
- Remote control for flame and heater
- 2 flame sets
- Ambient canopy lighting in 13 colors illuminates media like never before

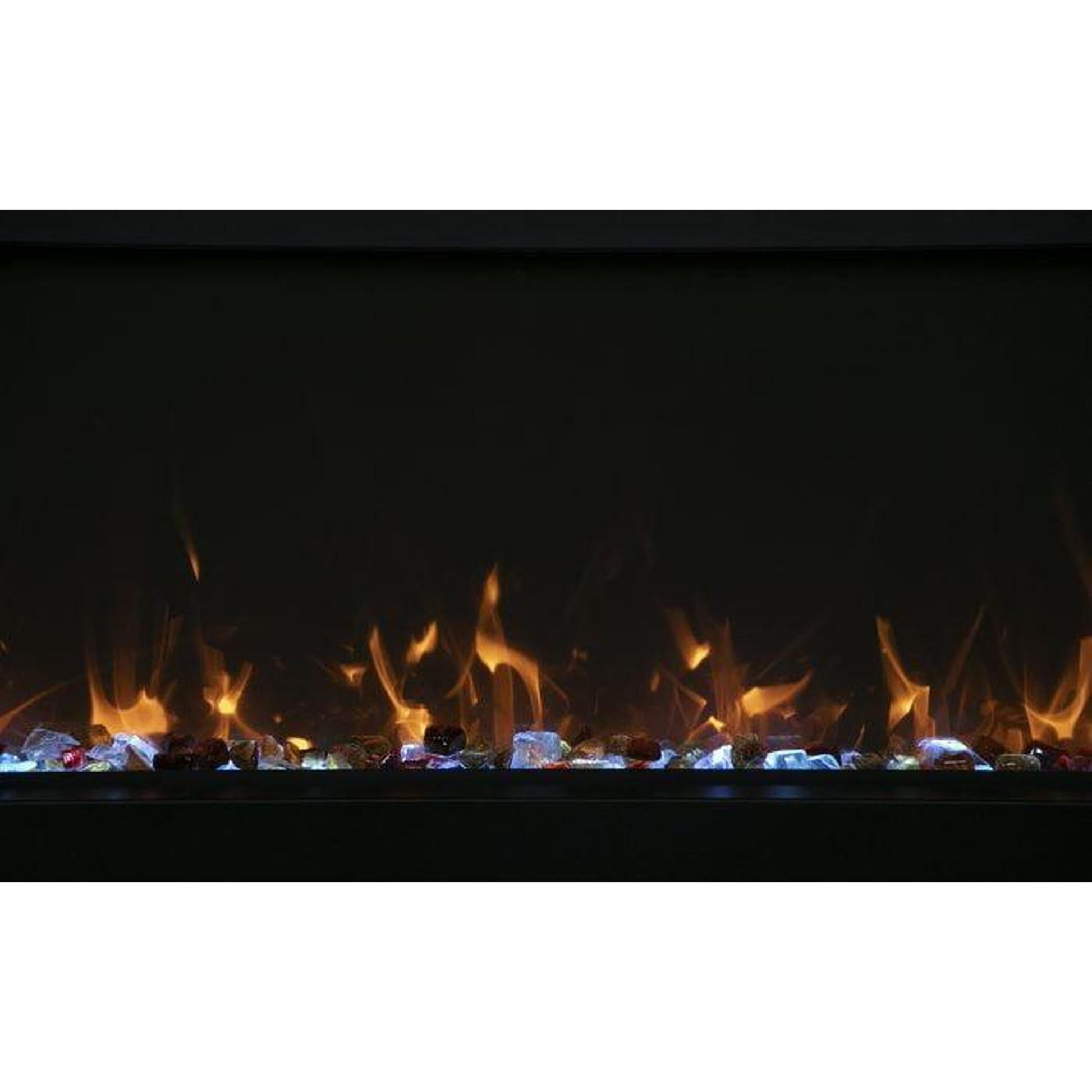

FIRE & ICE® flame presentation
|
---|

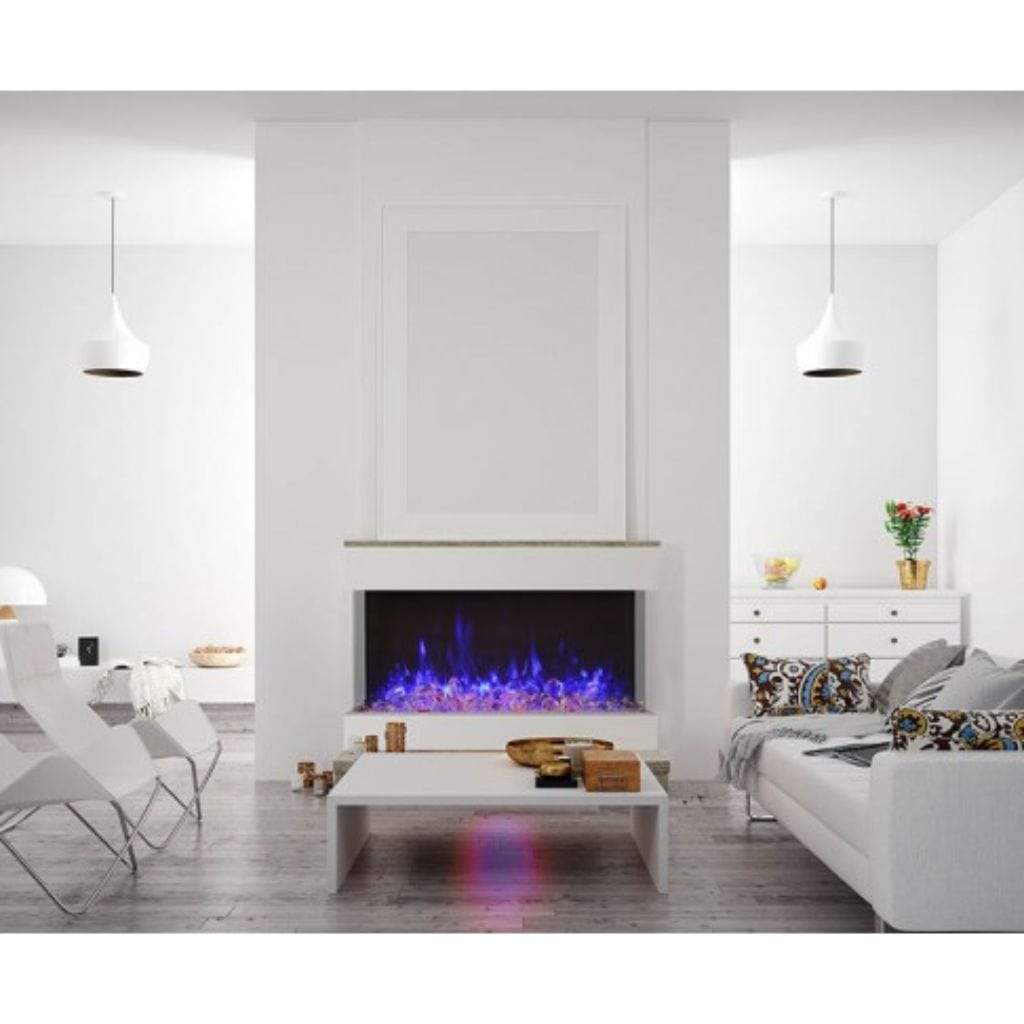

Vibrant multi-colored state-of-the-art FIRE & ICE® flame that is easily changed from blue to purple to rose to violet to orange or yellow with just a click of the remote. Three color strips generate more flame options that ever. |
Ambient Canopy Lighting |
---|
Ambient canopy lighting illuminates media like never before. Cast a colorful glow over the supplied decorative media in the tray below. Cycle through a rainbow of 13 different colors. Blend flame colors with contrasting canopy lighting for a unique presentation – the combinations are limitless |
SPECIFICATIONS
88-TRU-VIEW-XL-XT | |
Volts | 120 |
Amps | 12.5 |
Watts | 1500 max |
Heater | 1500 watts high 750 watts low |
No Heater | 19 watts |
Lamps | LED – 67 watts |
Rotor Motor | 2 at 5 watts |
Height, Width, Depth | 33” x 91 1/4” x 13 3/4” |
Glass View Opening | 22” X 87 5/8” |
Glass Size | 22” X 87 5/8” |
Shipping Size | 35 1/4” x 95 1/2” x 15 5/8” |
Shipping Weight | 231.5 lbs – glass included 198.4 lbs – unit |
Plug Location | Left Side |
Cord Length | 76″ |
Approx. Heating Area | 500 sq. ft. |
INCLUDED ACCESSORIES
The 88-Tru-View-XL-XT electric fireplace comes with a choice of a Design Media kit – Driftwood, Birch or Rustic, or ICE media kit and a Remote control for flame and heater.
*Remote control may not be exactly as shown
Included Media is your choice of:

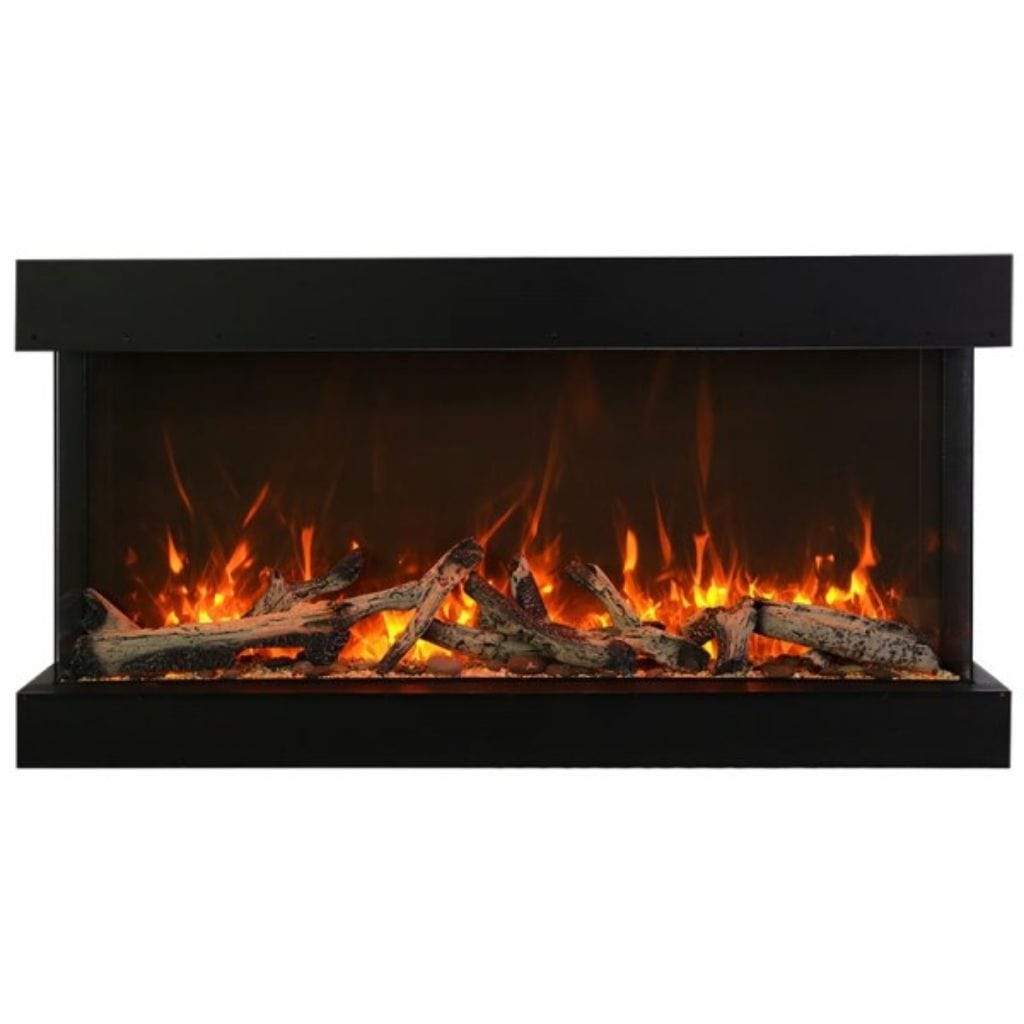

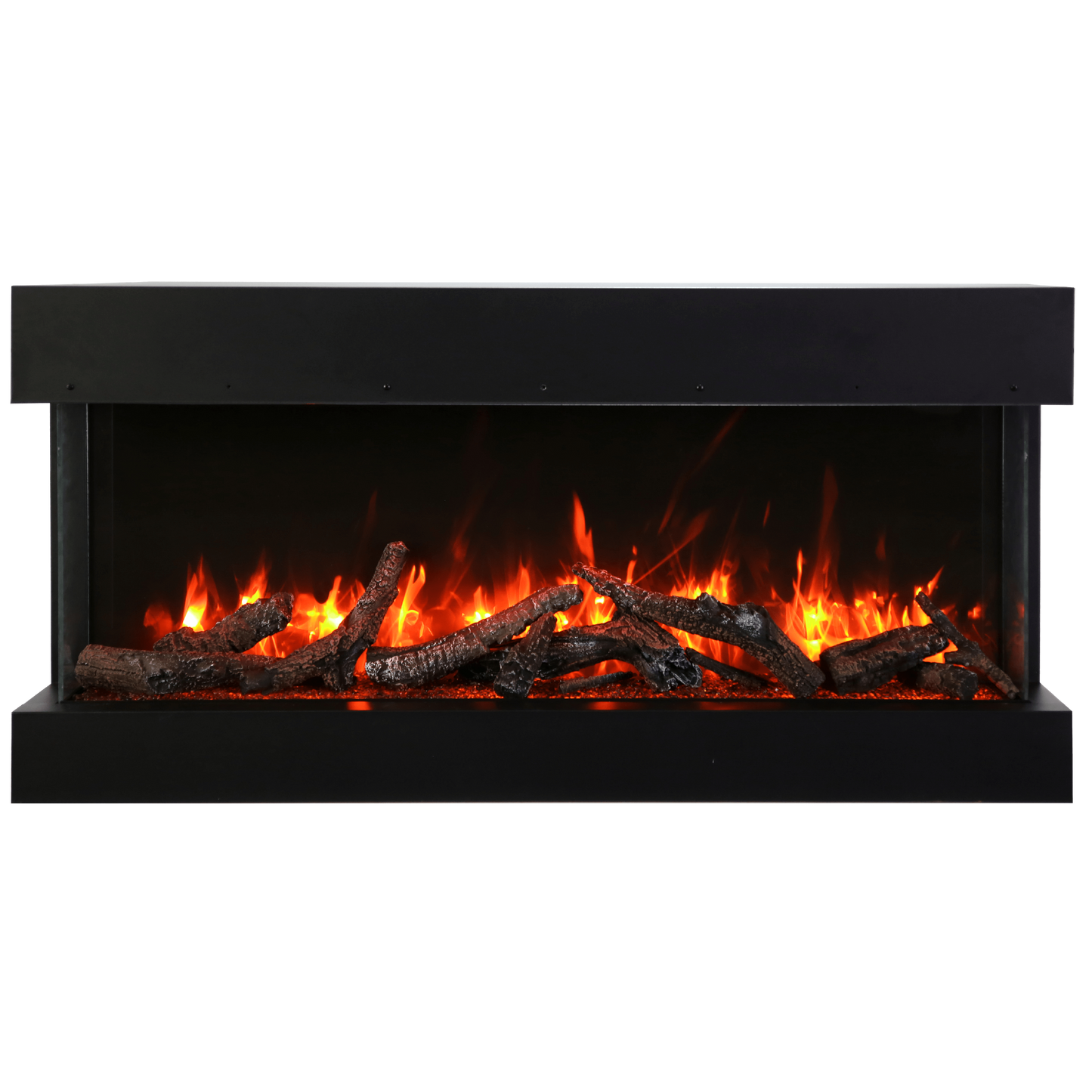

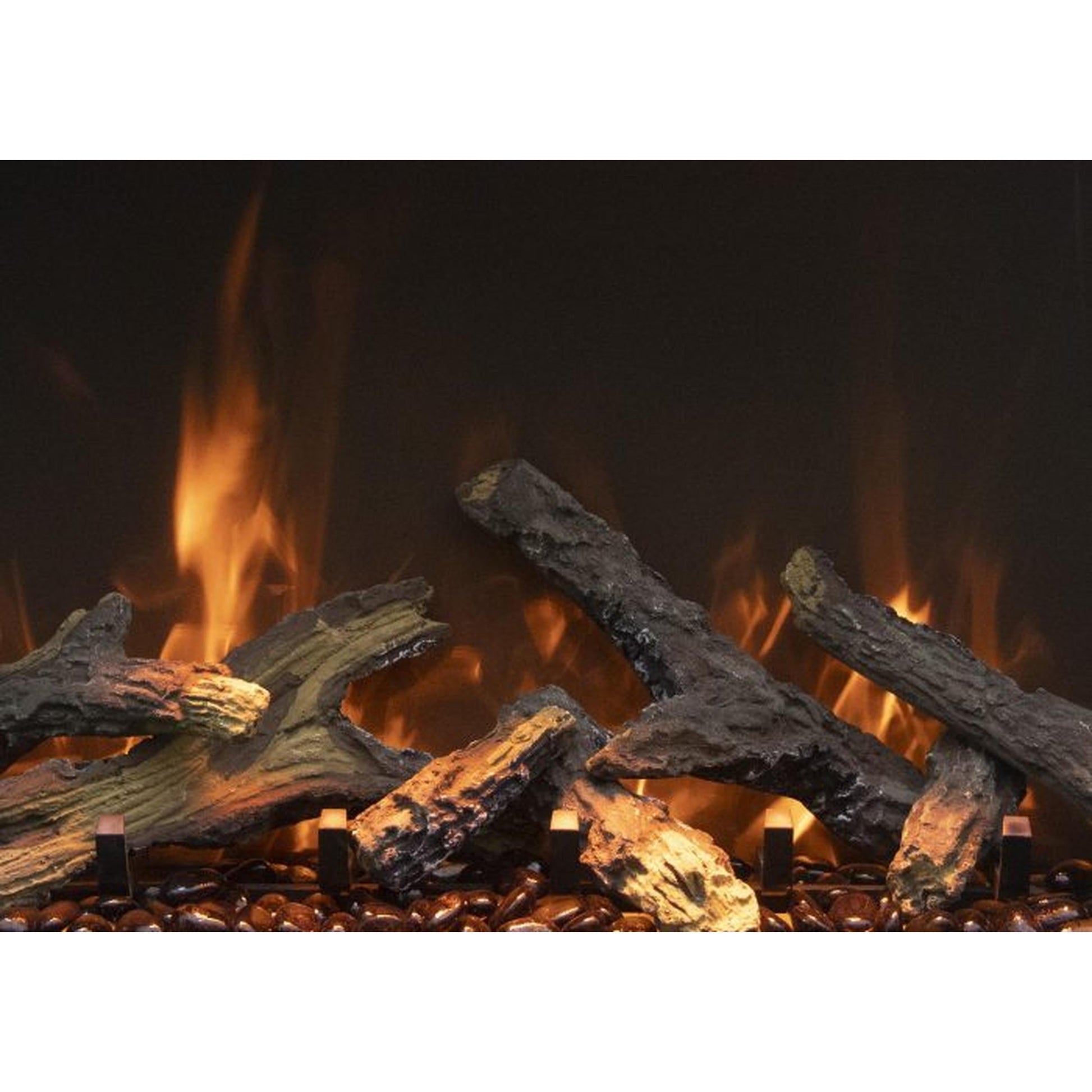

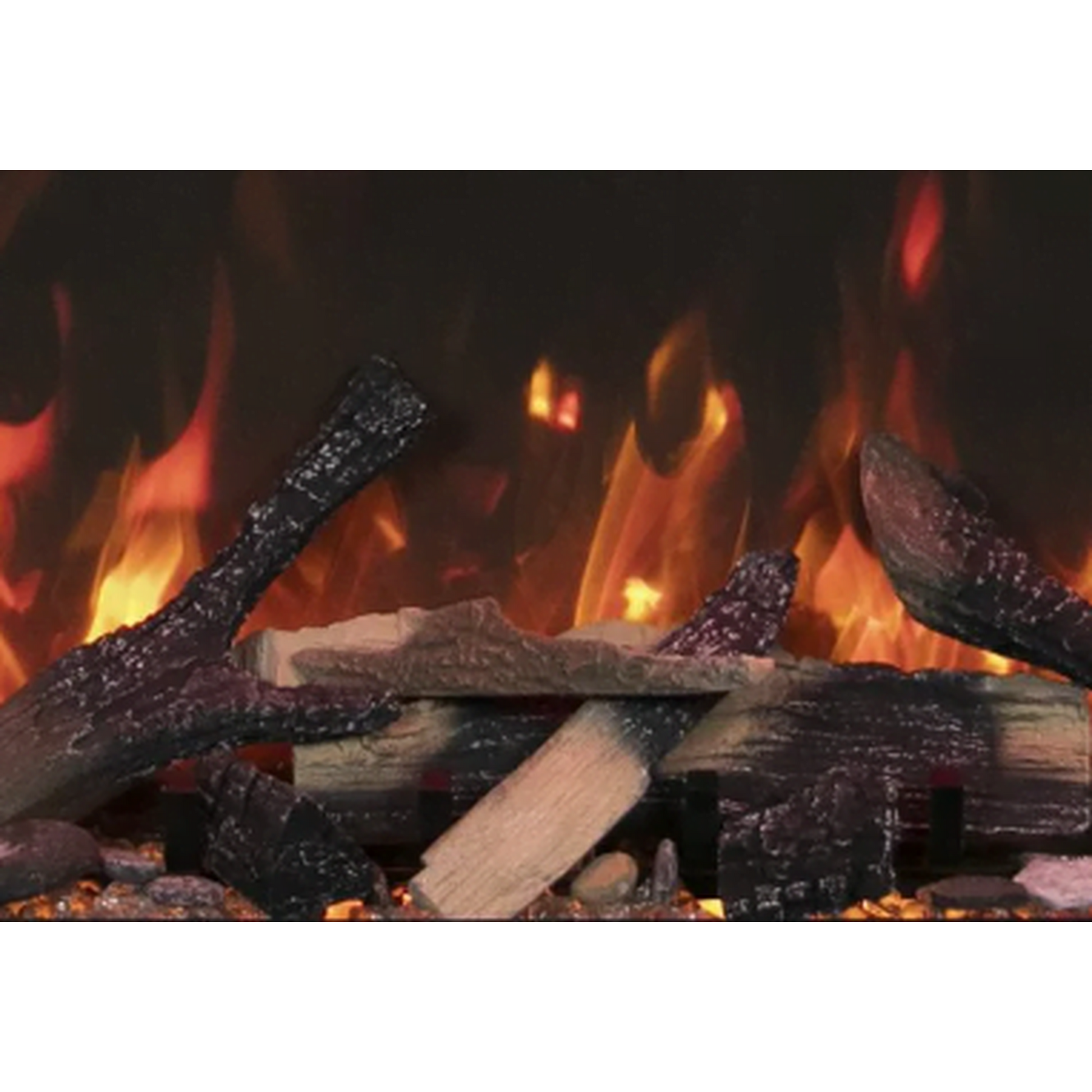

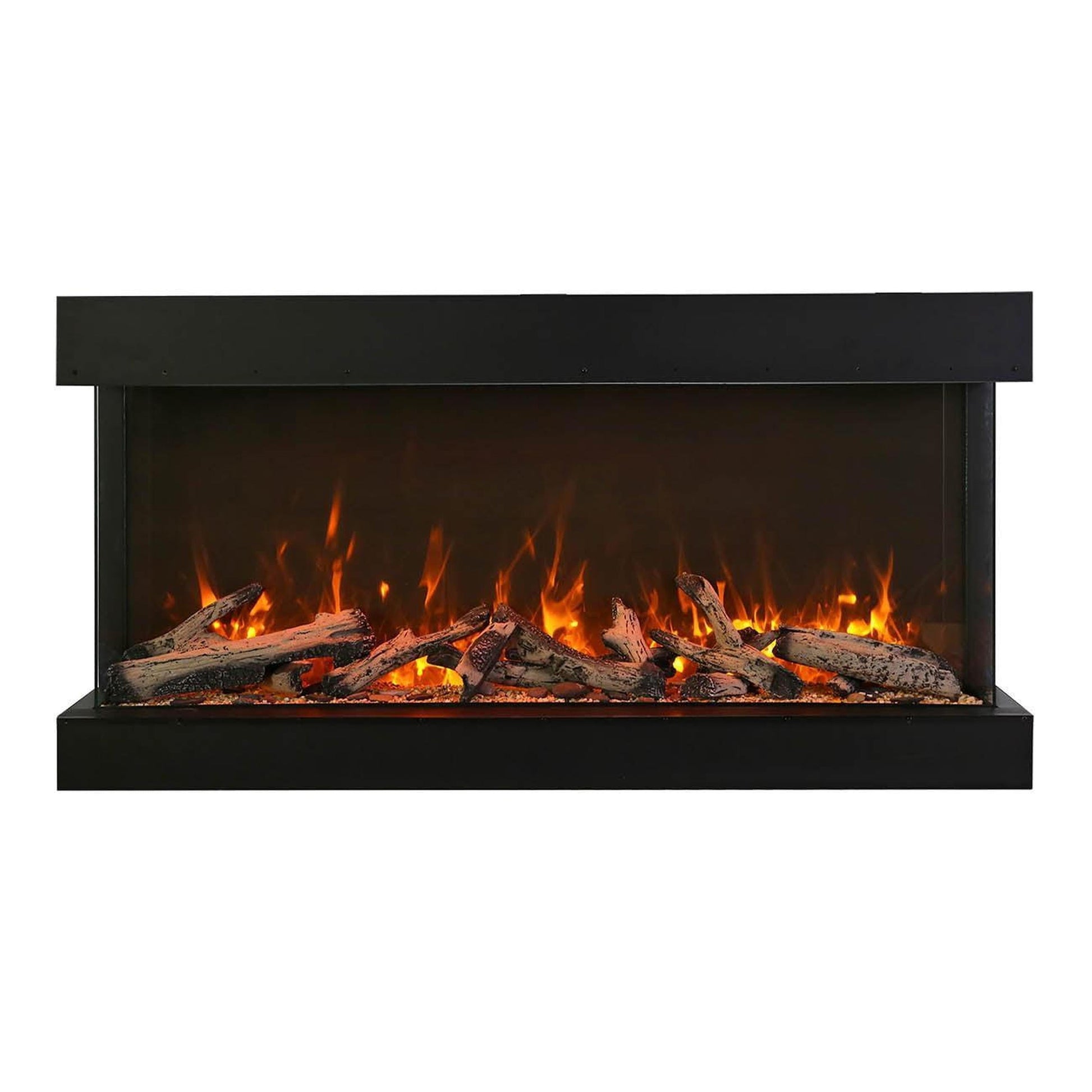

Rustic Design Media Kit |

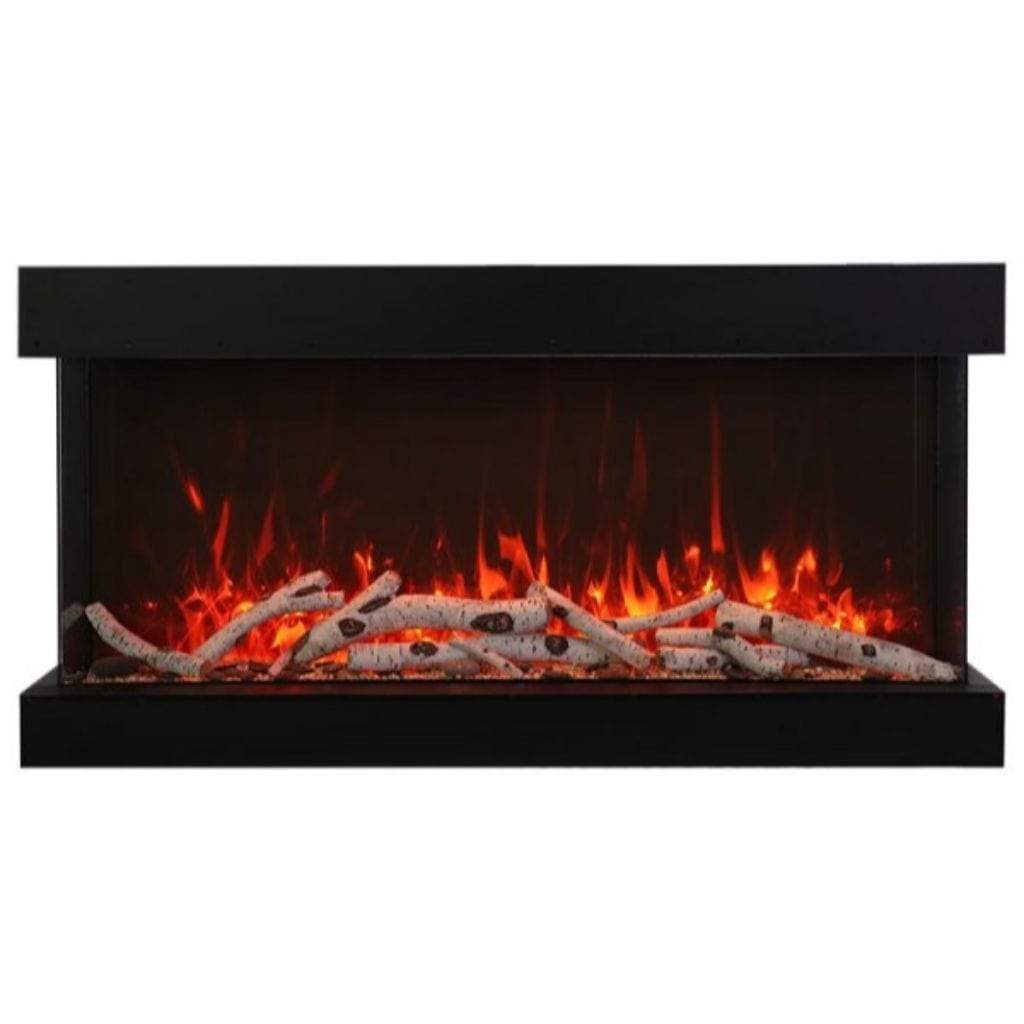

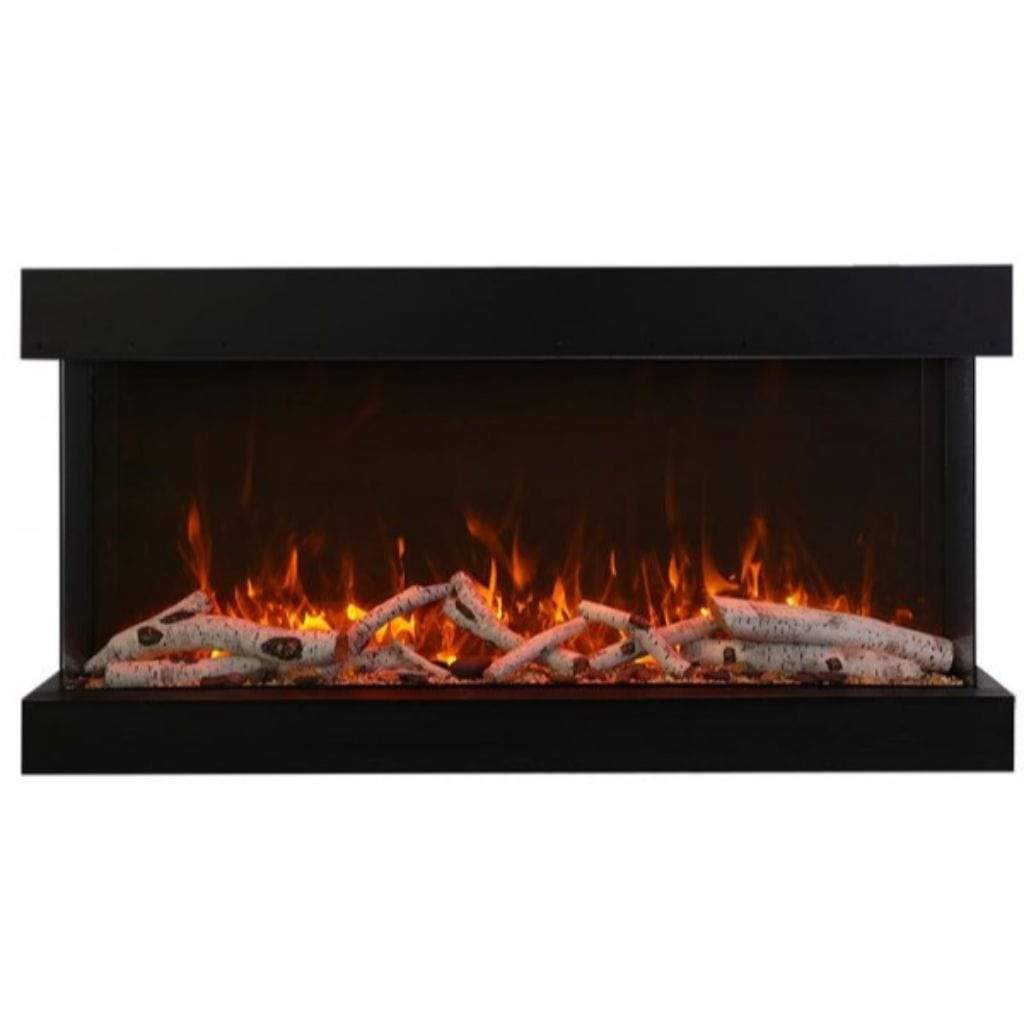

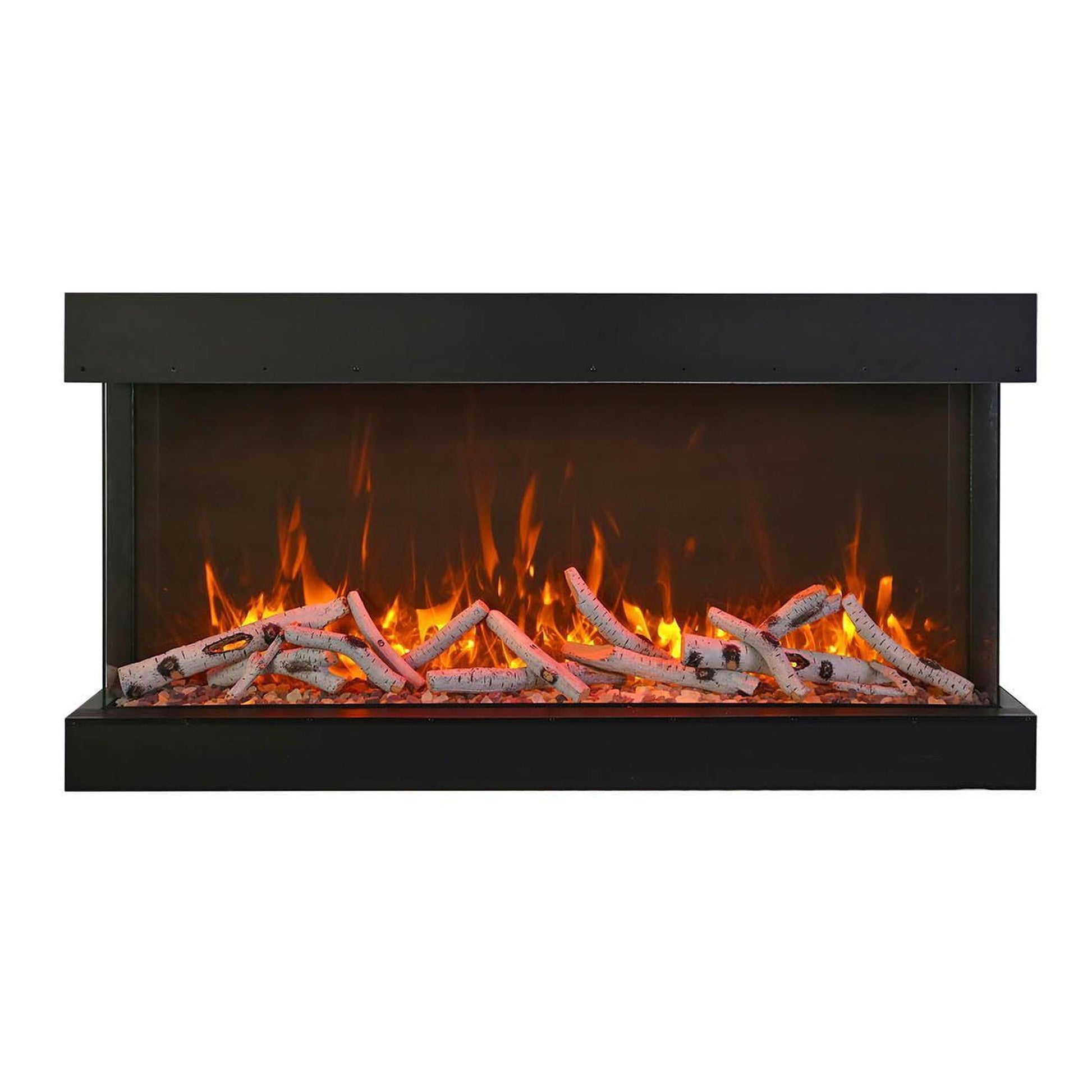

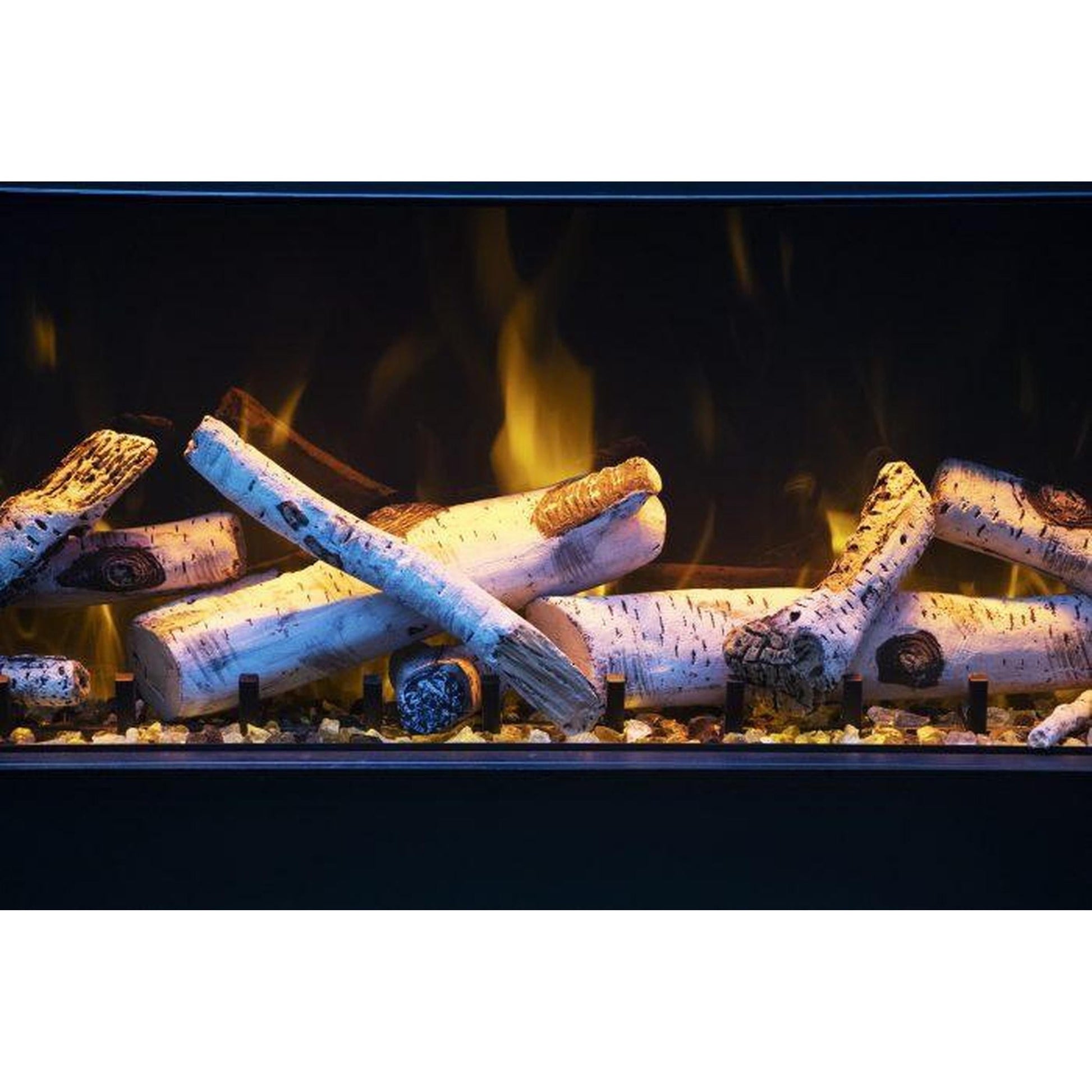

Birch Design Media Kit |

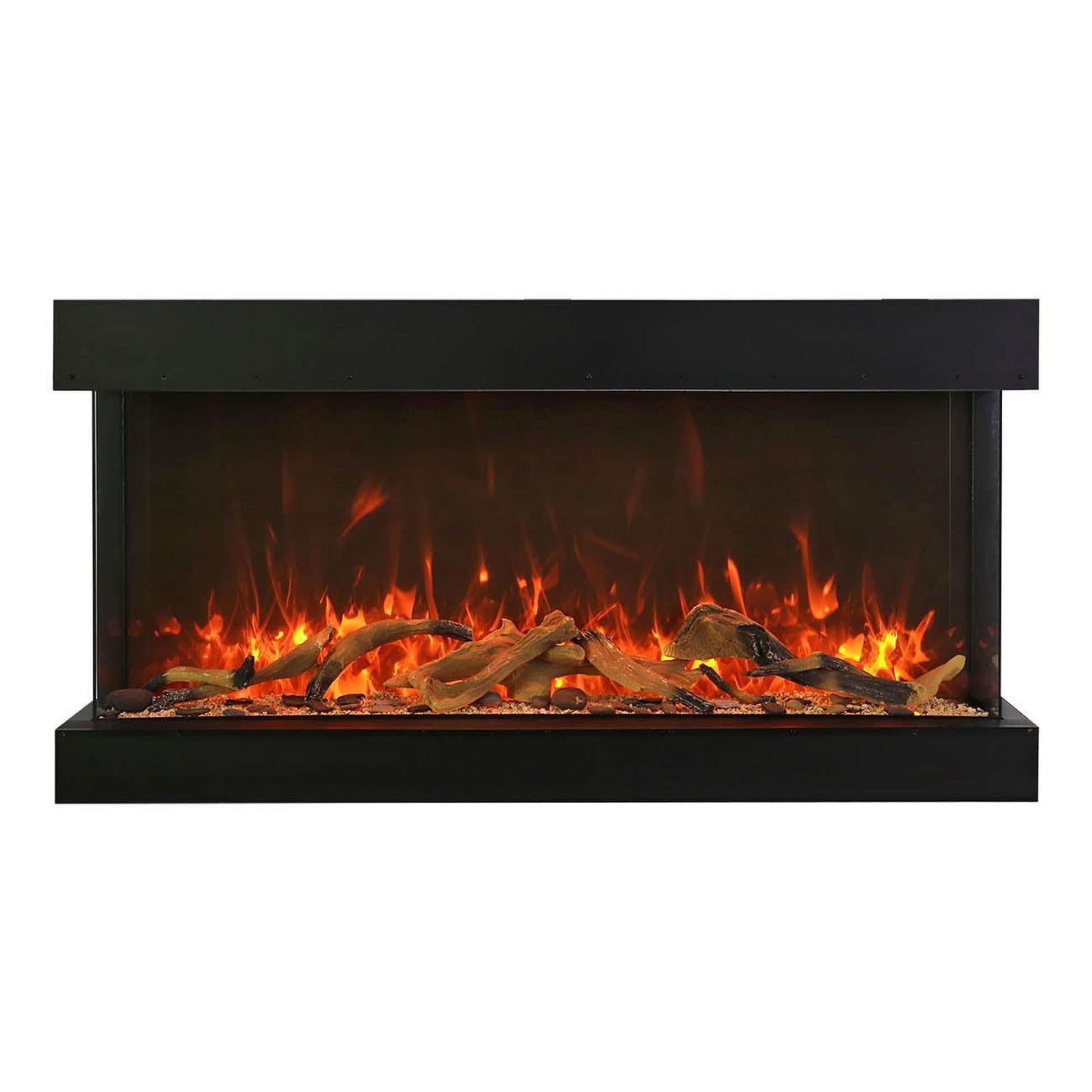

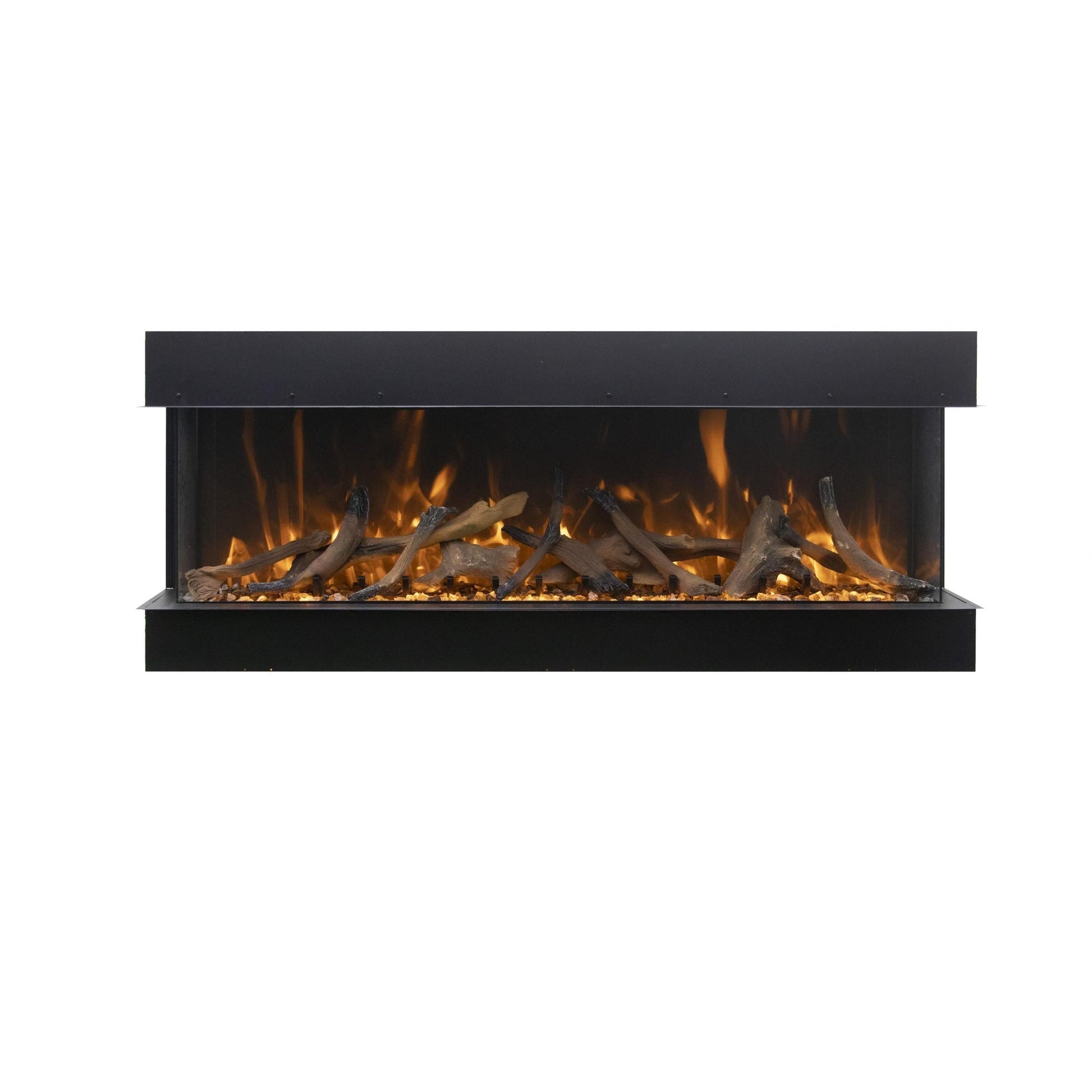

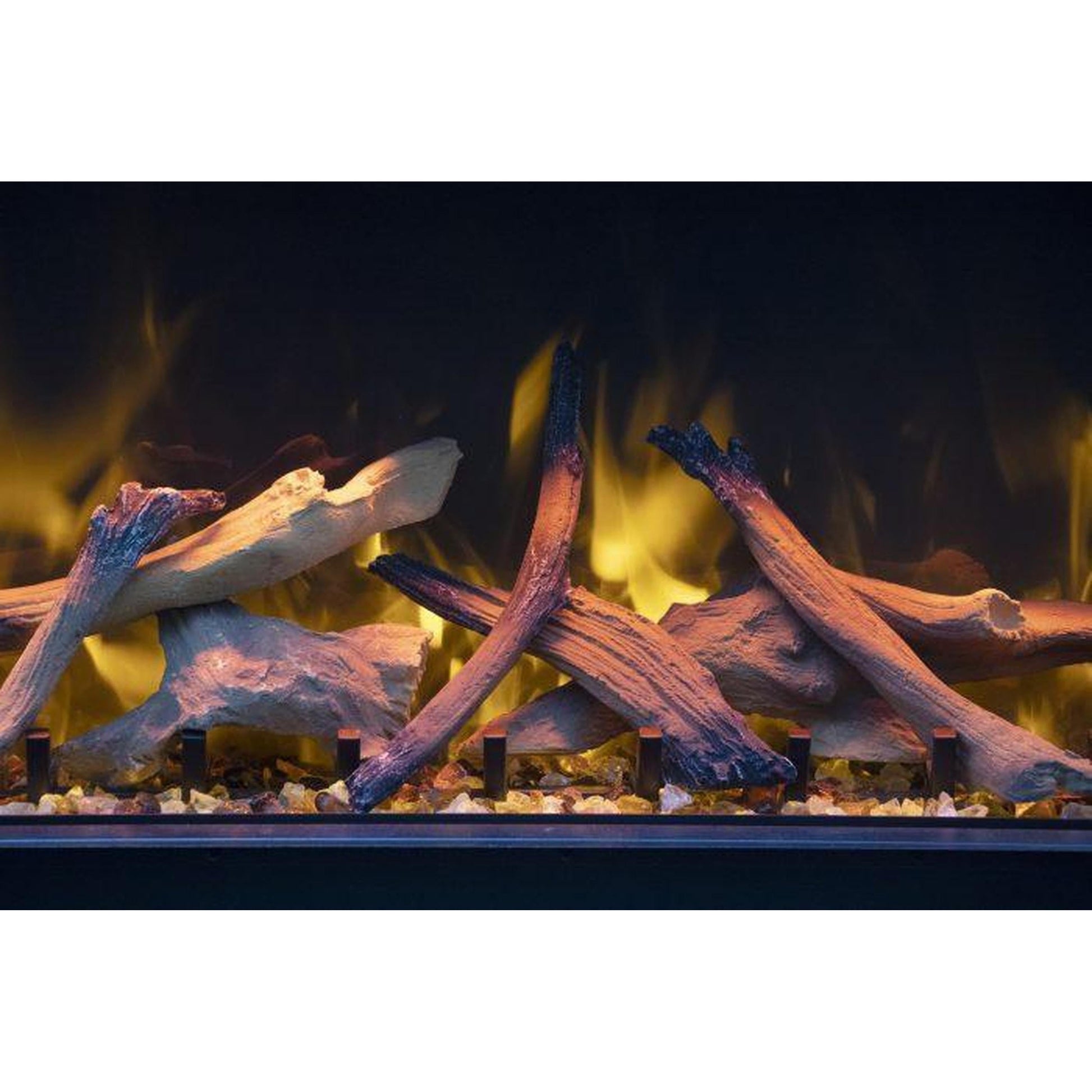

Drift Design Media Kit |

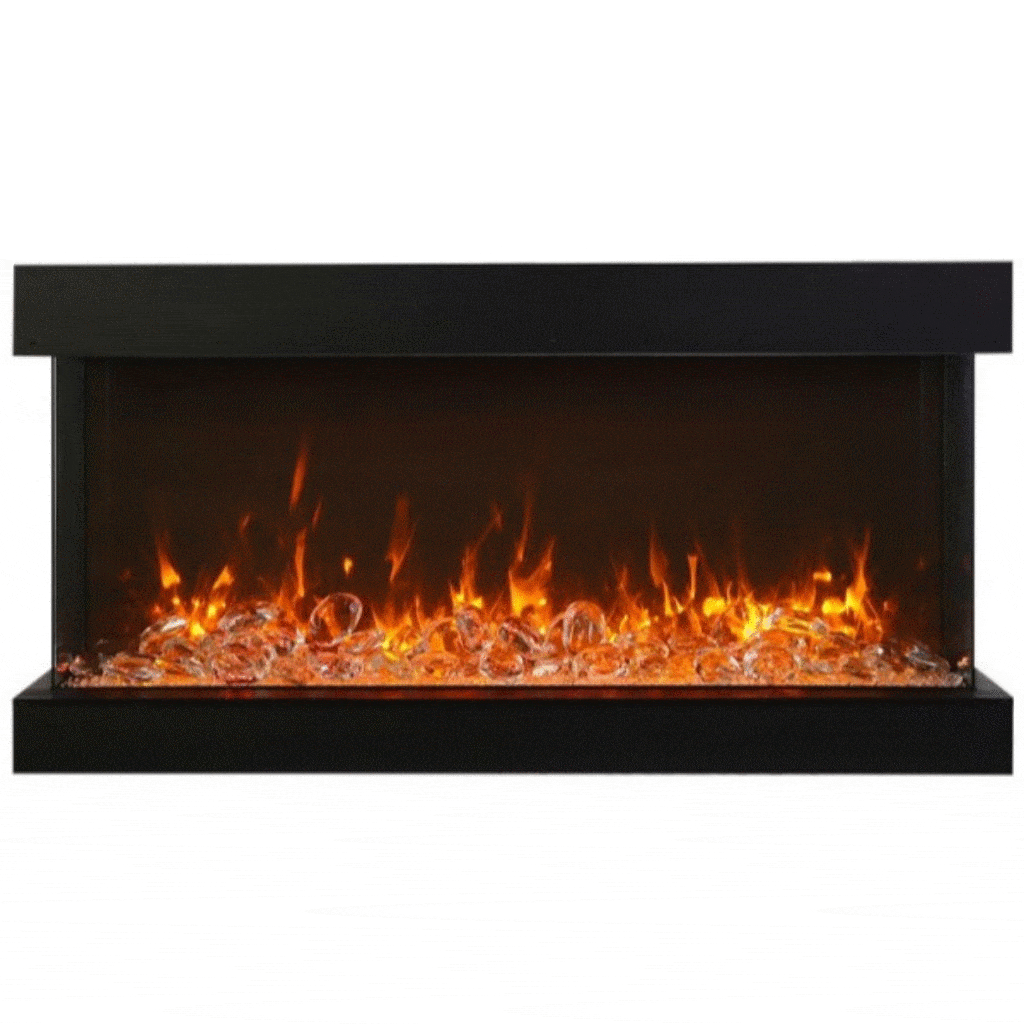

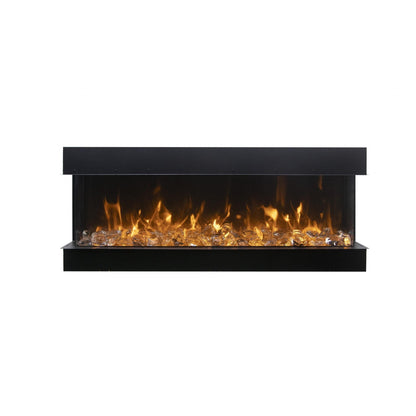

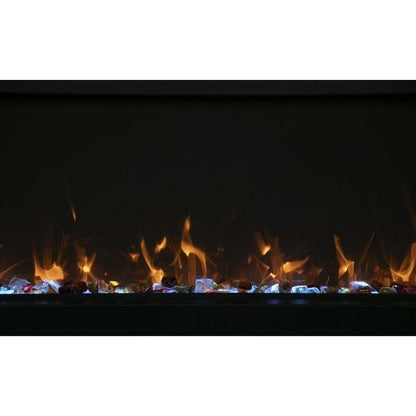

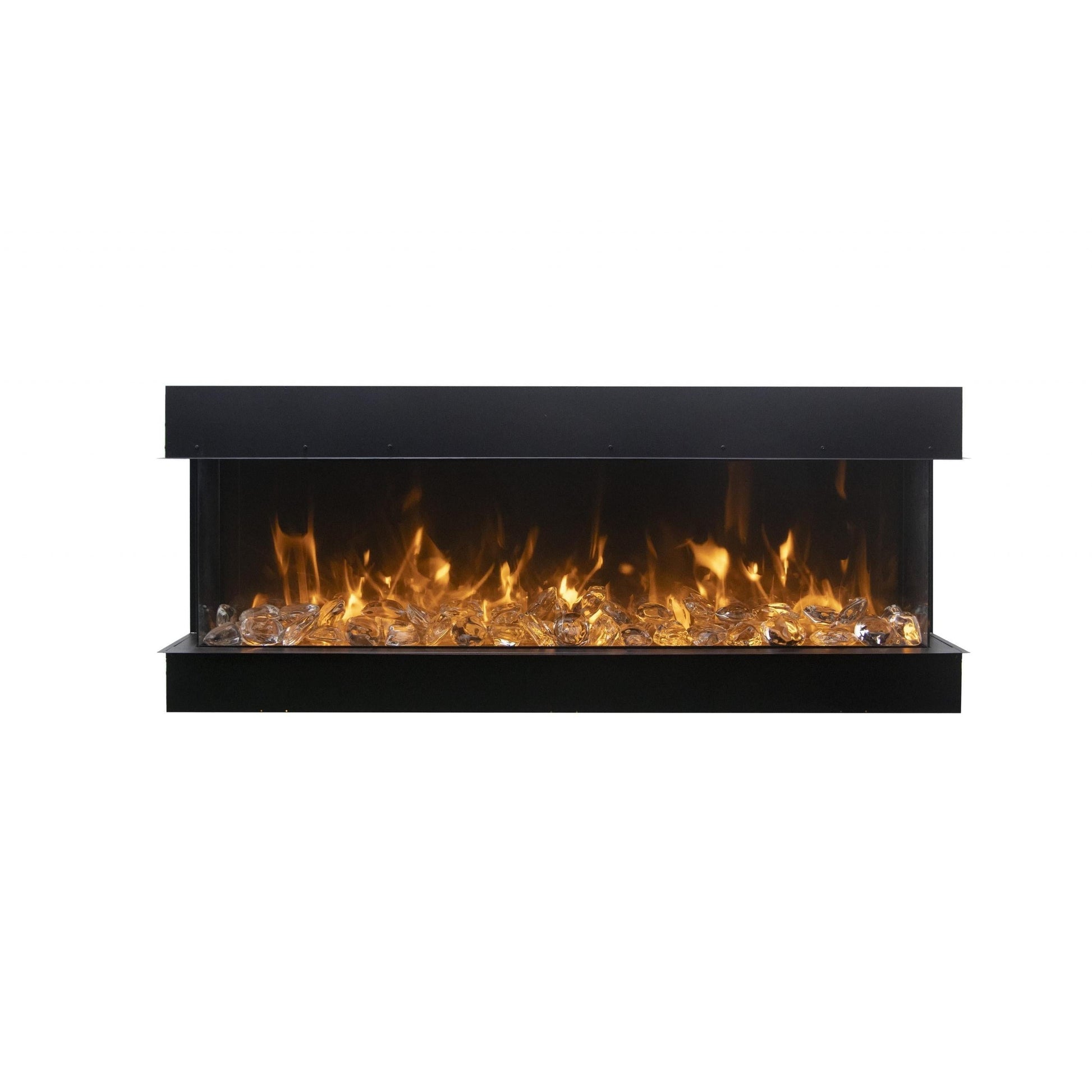

ICE Media Kit (Fi-109-Diamond) |
OPTIONAL ACCESSORIES
Click to see Optional Decorative Media Options
Customize the look of your electric fireplace by purchasing from our selection of stylish decorative media.
AMSF‐GLASS‐01 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage
Color: ‘Clear’ |
|
AMSF‐GLASS‐02 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Light Brown’ |
|
AMSF‐GLASS‐03 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Charcoal’ |
|
AMSF‐GLASS‐04 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Champagne’ |
|
AMSF‐GLASS‐05 – 1 Box includes approx. 5 lbs of 1/4″ reflective fireglass ‐ 1 sq. ft. of media coverage Color: ‘Dark Grey’ |
|
AMSF‐GLASS‐06 – 1 Box includes approx. 5 lbs of 1″ Clear ‘Gem’ fireglass ‐ 1 sq. ft. of media coverage ‘clear’ Color: ‘Clear’ |
|
AMSF‐GLASS‐07 – 1 Box includes approx. 5 lbs of white frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color: ‘White’ |
|
AMSF‐GLASS‐08 – 1 Box includes approx. 5 lbs of dusty purple frosted fireglass ‐ 1 sq. ft. of media coverage ‘white’ Color: ‘Dusty Purple’ |
|
AMSF‐GLASS‐09 – 1 Box includes approx. 5 lbs of amber small bead fireglass ‐ 1 sq. ft. of media coverage ‘amber’ Color: ‘Amber’ |
|
AMSF‐GLASS‐10 – 1 Box includes approx. 5 lbs of small bead fireglass ‐ 1 sq. ft. of media coverage ‘orange’ Color: ‘Orange’ |
|
AMSF‐GLASS‐11 – 1 Box includes approx. 5 lbs of small “suntea’ bead fireglass ‐ 1 sq. ft. of media coverage ‘suntea’ Color: ‘Suntea’ |
|
AMSF‐GLASS‐12 – 1 Box includes approx. 5 lbs of small “black’ bead fireglass ‐ 1 sq. ft. of media coverage ‘black’ Color: ‘Black’ |
|
AMSF‐GLASS‐13 – 1 Box includes approx. 5 lbs of small “sable’ bead fireglass ‐ 1 sq. ft. of media coverage ‘sable’ Color: ‘Sable’ |
|
HZ-12-Ember – 3 Colors of decorative media, Clear, Suntea, Harvest Moon Amantii / Sierra Flame decorative fire glass media is a beautiful addition to your electric fireplace. Turn your fireplace into a expressive work of art by simply adding our decorative fire glass media. Our fire glass adds a distinctly modern feel to your electric fireplace – mix colors and textures for a unique appearance. 3 Colors: ‘Clear, Suntea, Harvest Moon’ |
|
Fi-105-Diamond – Add an extra sparkle to your Amantii electric fireplace. The Amantii Deluxe Glass Diamonds Media Kit for Electric Fireplaces is everything you could want to add a shine to your hearth. Each kit contains one large glass nugget, two mini nuggets, along with diamond media,. Make your fireplace shine like a diamond.
|
|
Fi-106-Diamond – Add an extra sparkle to your Amantii electric fireplace. The Amantii Large Glass Nugget Media Kit for Electric Fireplaces is everything you could want to add a shine to your hearth. Each kit contains three extra large glass nuggets
|
|
Fi-107-Diamond – Add an extra sparkle to your Amantii electric fireplace. The Amantii Miniature Glass Nugget Media Kit for Electric Fireplaces is everything you could want to add a shine to your hearth. Each kit contains six miniature glass nuggets.
|
|
Fi-109-Diamond – Add an extra sparkle to your Amantii electric fireplace. The Amantii Deluxe Ice Glass Media Kit for Electric Fireplaces is everything you could want to add a shine to your hearth. Each kit contains three large glass nuggets and mixed diamond media.
|
Click to see Optional Designer Media Kits
DESIGN‐MEDIA‐6PCE 6 piece log set with black fire glass, 90 piece pebble, rocks, Embers 1, Embers 2, Embers 3 and Embers 4 Use With:
|
|
DESIGN-MEDIA-14PCE RUSTIC‐14 Piece Log set with deluxe media: stones, pebbles, black fire glass and embers. Use With:
|
|
DESIGN‐MEDIA‐BIRCH‐15PCE BIRCH‐15 Piece Log set with deluxe media: stones, pebbles, black fire glass, and embers. *Not approved for Sierra Gas Units.
|
|
DESIGN‐MEDIA‐DRIFT‐15PCE DRIFT‐15 Piece Log set with deluxe media: stones, pebbles, black fire glass, and embers. Use With:
|
WARRANTY
Amantii Imports Corp. (Amantii) warrants that newly purchased Amantii electric fireplaces are free from manufacturing and material defects for a period of two (2) years from the date of first purchase. Must follow outdoor installation guide when installing outdoors.
Refer to product manual for full warranty details.
DOWNLOADS
- Product Brochure
- Product Specification
- Product Manual
- Download Back Drill Modification Sheet
- Download Replacement Glass Measurements
